Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

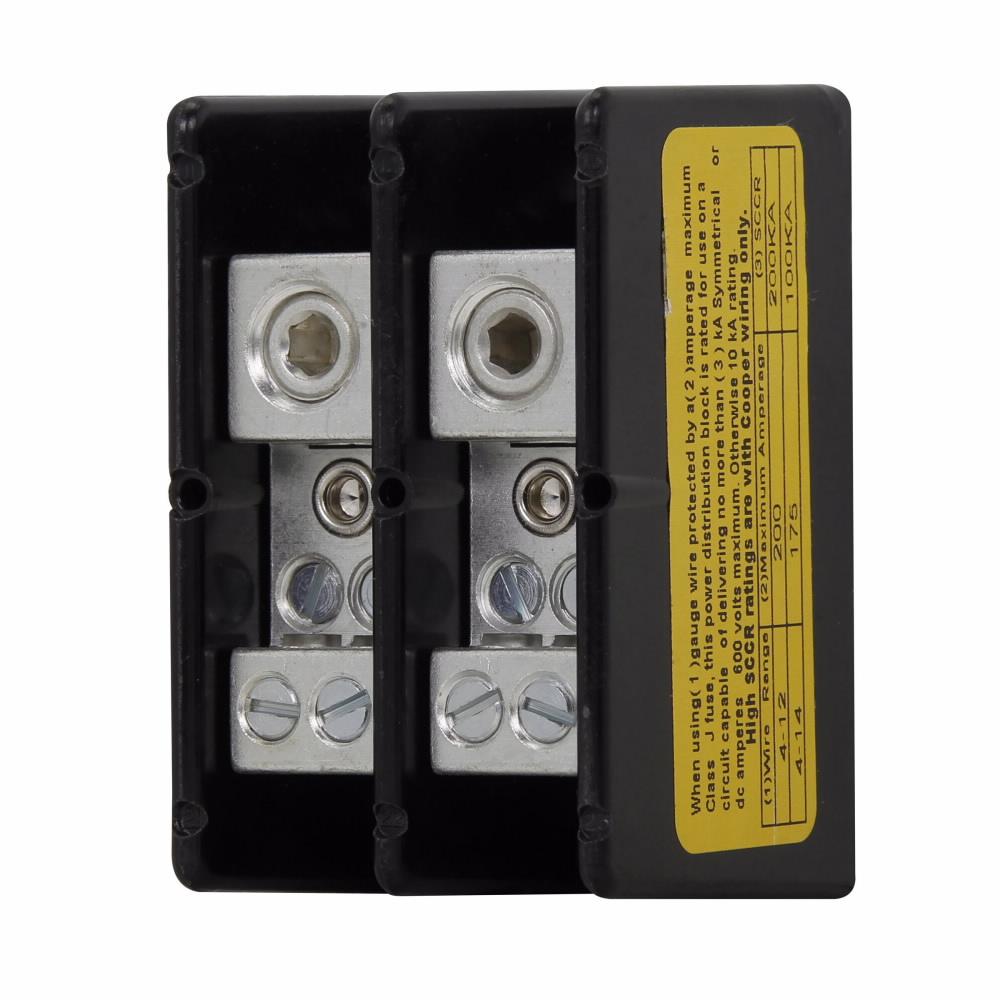

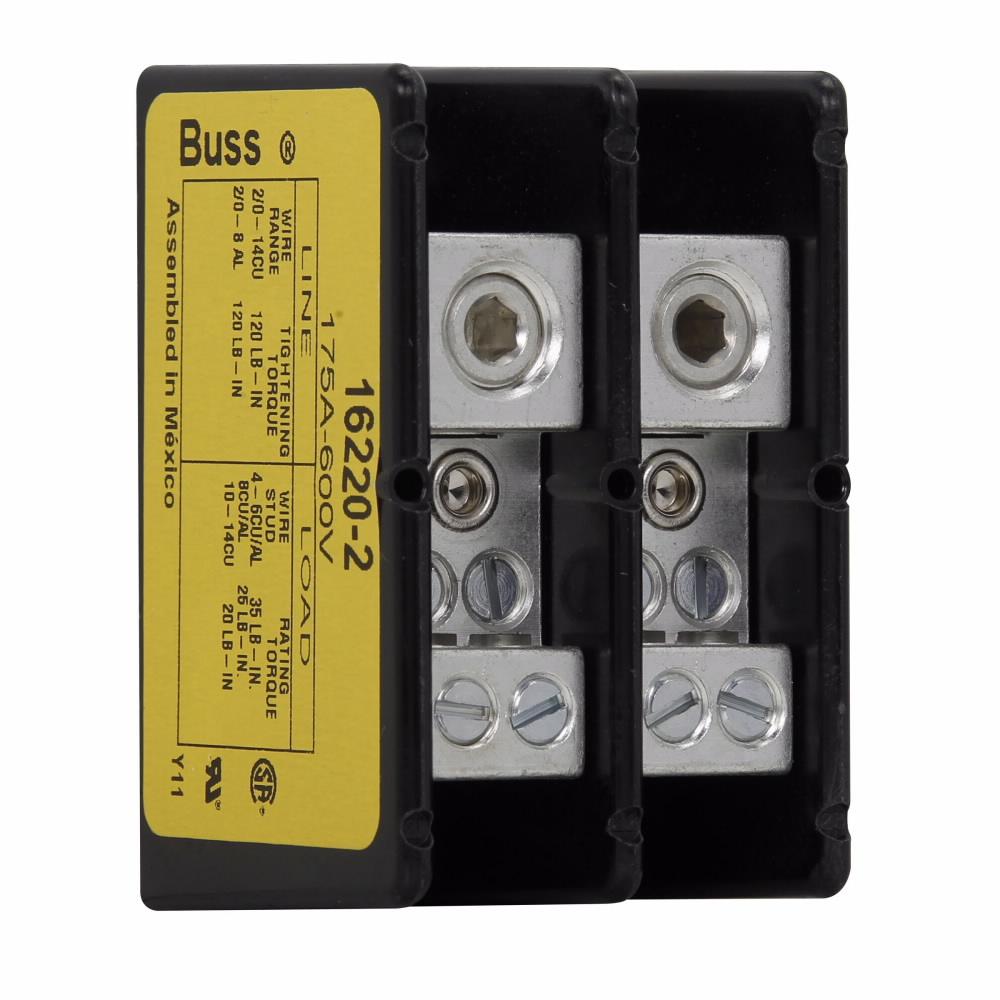

Edison Magnum® Power Terminal Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 2 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 14 to 2/0 AWG, 8 to 2/0 AWG Wire, 10 kA Short Circuit, Thermoplastic, Tin Plated, Black, 1.88 in L x 2.88 in W x 1.75 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1ff3f8f3a2e71727219a7ca1df38031ea1cb535e2af812a18c3472ee3ae33b7f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1ff3f8f3a2e71727219a7ca1df38031ea1cb535e2af812a18c3472ee3ae33b7f.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3c177a29a222626a419a6a746f6e2e4f7140b3929462bda4e439b4fdefcc2b8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3c177a29a222626a419a6a746f6e2e4f7140b3929462bda4e439b4fdefcc2b8.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c11f8e743821f0249a52d1696227fb3ac6313cc8d7669268d4e2ce4975504367.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c11f8e743821f0249a52d1696227fb3ac6313cc8d7669268d4e2ce4975504367.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk

• Rated for dual wire port application to increase the possible number of lineside and loadside connections
• Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
• Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
• Molded thermoplastic base, tin plated aluminum connector
• SMD/SMT style mounting
• 14 to 2/0 AWG copper, 8 to 2/0 AWG aluminum line, (4) 14 to 4 AWG copper, 8 to 4 AWG aluminum load wire
• (1) screw primary, (4) screw secondary
