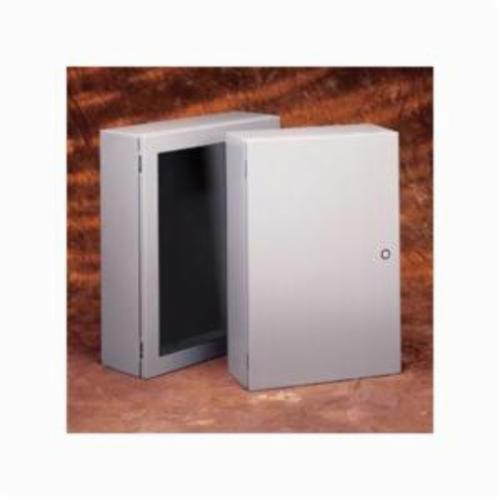

B-Line Wall Mount Enclosure, 1-Door, Series: Premier™, 12 in Length, 12 in Width, 6 in Depth, NEMA 4, Hinged Cover, 10 in H x 10 in W Panel, Quarter Turn Latch Lock, Panel Mount, Steel, Polyester Powder Coated, Gray

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_1086_SD_Data_Sheet.pdf

• Enclosure and door are fabricated from code gauge steel
• All continuous welded seams are finished smooth
• Hardware kit provided contains grounding hardware, 0.312-18 flanged hex nuts for panel mounting, and sealing washers for body mounting holes
• Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
• Reduced width flange design increases enclosure opening
• Ground stud provided on enclosure body with provision on door
• Enclosure mounting holes in body provided for direct mounting or optional mounting feet
• Utility bracket provides wire management and accessory mounting options
• Doors are secured to the body with a unique spring loaded hidden hinge design on one side and slotted quarter-turn flush latches on the opposite side
• Doors are easily removed and interchangeable
• Door has a seamless poured in place gasket
• Door opens 170 deg for easy access
• Utility rail provides grounding, rigidity and wire management
• Window-door enclosures feature flush-mounted clear polycarbonate window
• Protects against circulating and windblown dust, falling dirt, dripping non-corrosive liquids, rain, splashing water and hose directed water
• 10.5 x 10.37 in mounting size
• 8.25 x 7 in window size
• ANSI 61 gray
• 16 ga steel
