B-Line B494-12GRN

Share Print

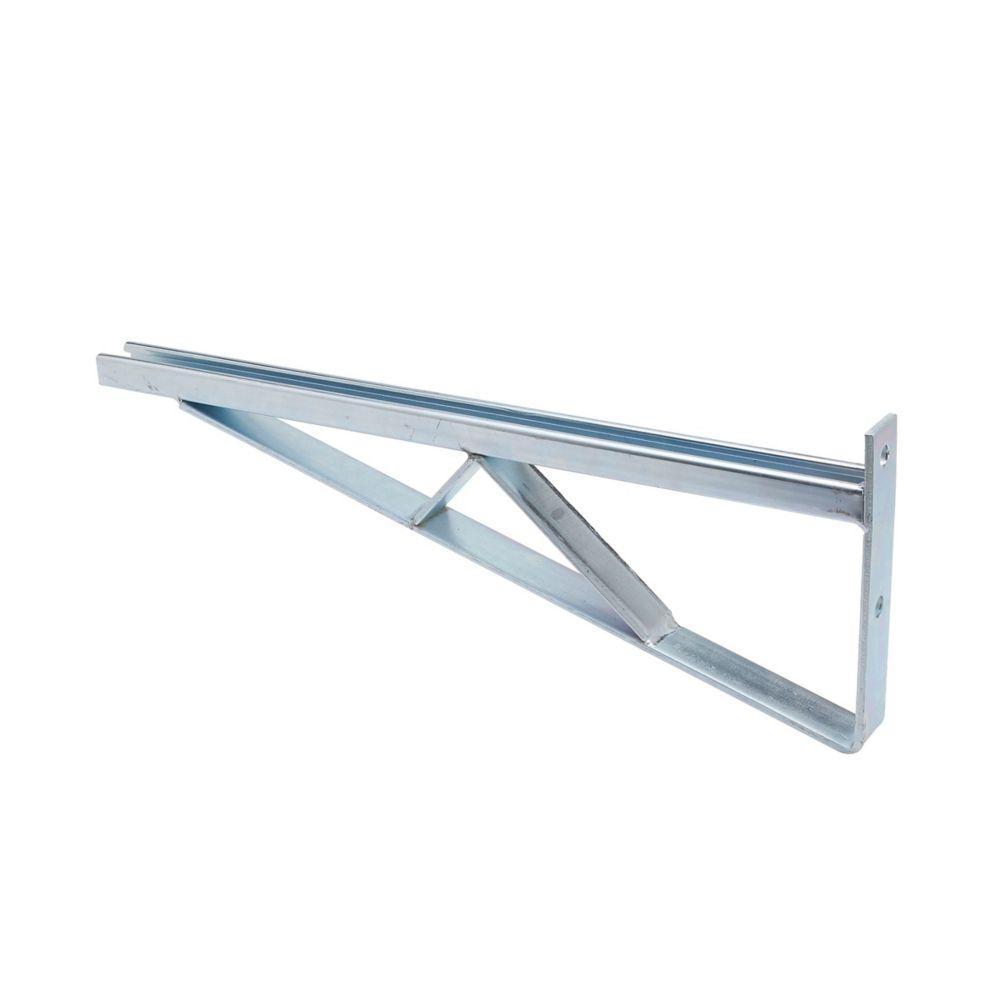

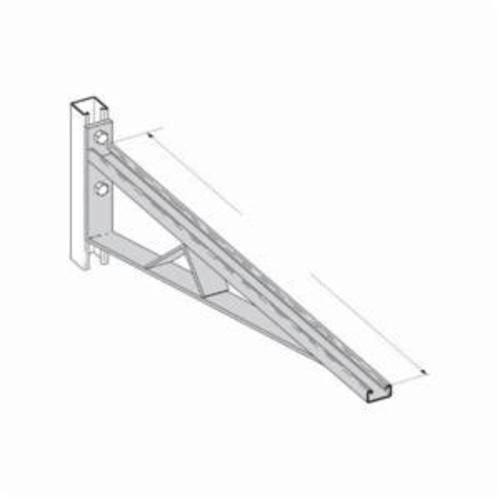

B-Line B494-12GRN Braced Single Bracket, 2 Holes, 12 in L x 1-5/8 in W x 1/4 in THK, Steel

  • MPN: B494-12GRN

  • IESPN: 74867

  • UPC: 781011577025

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line B494-12GRN

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

B-Line Braced Single Bracket, 1580 lb Load, 2 Holes, 12 in Length, 1-5/8 in Width, 8-3/4 in Depth, 1/4 in Thickness, 9/16 in Hole, 4 in Hole Spacing, For Use With: B42 Channel, Steel, Epoxy Coated, Dura Green

Load Capacity      1580 lb
Number of Holes      2
Length      12 in
Width      1-5/8 in
Depth      8-3/4 in
Thickness      1/4 in
Hole Size      9/16 in
Hole Spacing      4 in
Suitable For Use With      B42 Channel
Material      Steel
Finish      Epoxy Coated
Color      Dura Green
  • 2.5 safety factor
