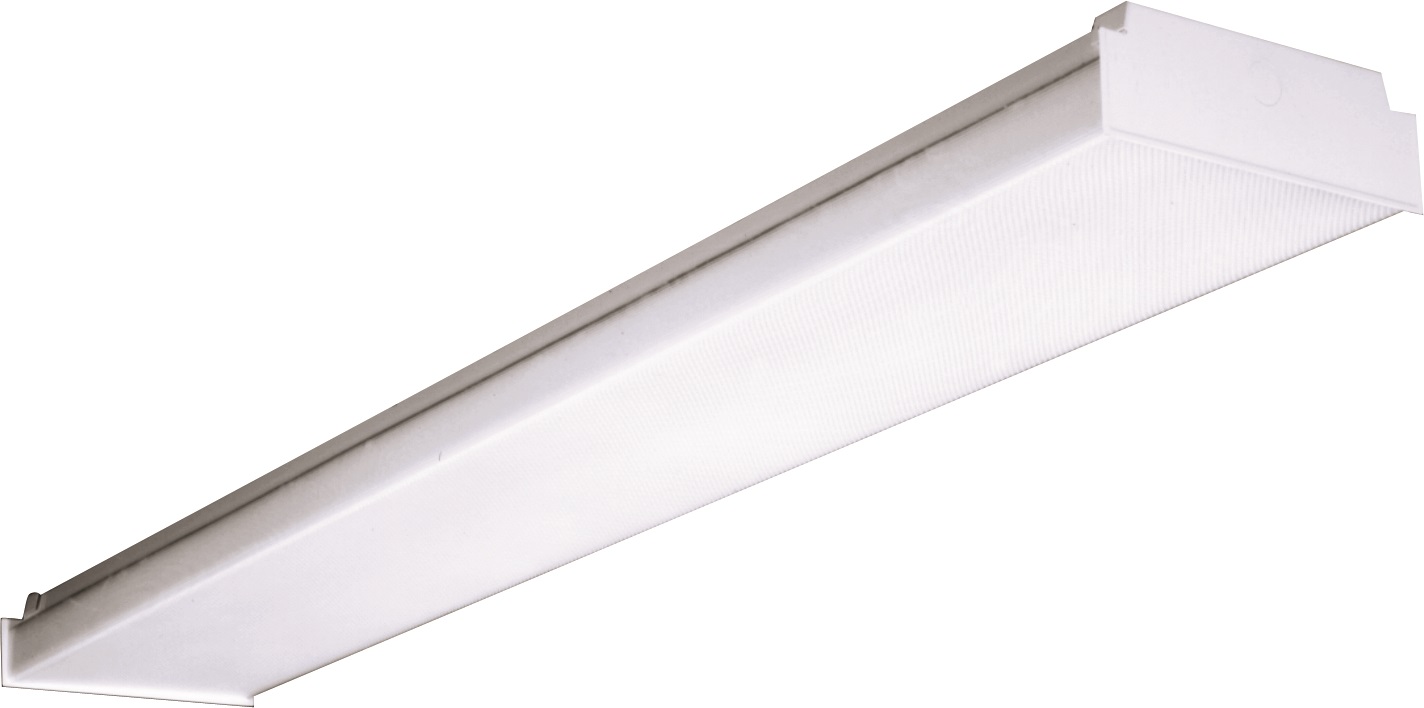

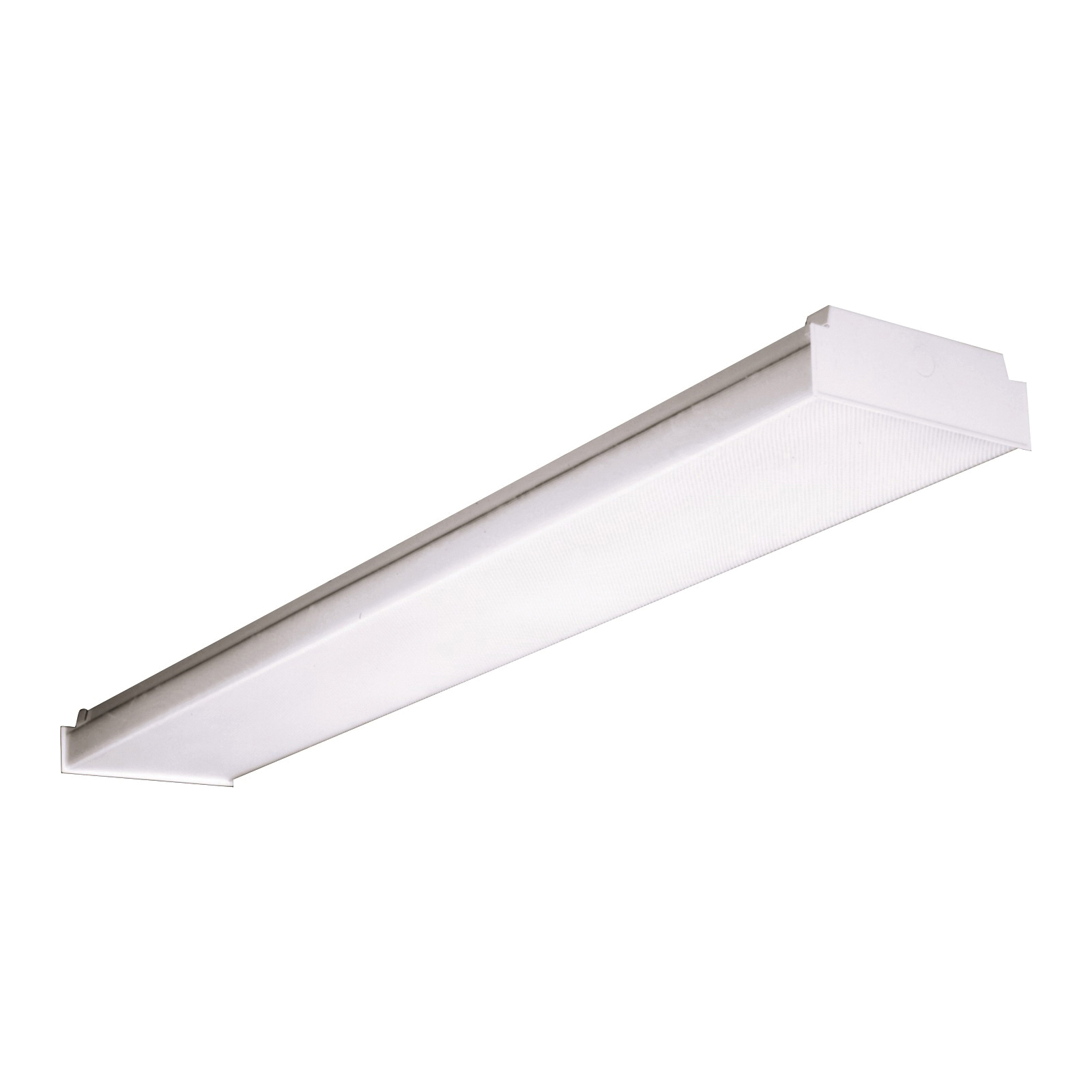

Columbia Lighting Wraparound, Low Profile, Series: AWN, 120 to 277 VAC, T8 Fluorescent Lamp, 32 W Lamp, Bi-Pin Lamp Base, 4 Lamps, Electronic Instant Start Ballast, Clear Prismatic Acrylic Lens, 2900 Lumens, Surface Mounting, Steel Housing Material, White Baked Enamel Housing Finish, 8 ft L x 8.3125 in W x 2.8 in H Dimensions

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128012243.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11361/ID-BRO-v1-co1046.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Columbia_Lighting_AWN8_232_4ELWU_Datasheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537667852006.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11361/ID-SPE-v1-awn.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128660945.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11361/Hubbell_Lighting_Indoor_Limited_Warranty_30_Jan_2015.pdf

• Clear acrylic prismatic diffuser, flat bottom with vertical sides
• Hinges from either side
• White steel end plates with flush knockouts for continuous row mounting
• Heavy gauge steel housing, die embossed for maximum rigidity
• Heat sink embossments and levelling projections allow direct mounting of HPF fixtures on combustible low density cellulose fiberboard ceilings
• All metal parts are treated with a five stage phosphate bonding process and finished with a baked white ename
