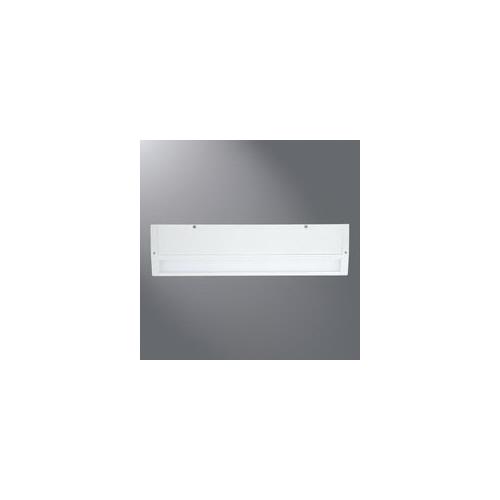

Halo HU1009D930P

Halo HU10 Dimmable Integrated Driver Under Cabinet Light,) LED Lamp, 120 VAC

  • MPN: HU1009D930P

  • IESPN: 211782

  • UPC: 080083692804

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Halo HU1009D930P

Ideal for task, accent, office, cove, utility, under and above cabinet lighting display, the Halo Undercabinet low-profile design delivers maximum energy savings and life with easy installation. The integrated driver allowing 120 V direct to the fixture for easy installation. Fixtures are available in 9, 18, 24, 36 or 48 in lengths, the Halo system can be configured to fit almost anywhere. Smooth dimming down to 5% using a standard dimmer. Connector cables in a variety of different lengths make it easy to link one unit to another. Each unit has an integrated on-off switch.

Halo Under Cabinet Light, Dimmable Integrated Driver, Series: HU10, 120 VAC, 1.6 A, LED Lamp, 3000 K Color, 90 CRI, Frosted Glass Lens, Cabinet Mount, Aluminum Housing, 10 in L x 5 in W x 1-1/4 in H

Type      Dimmable Integrated Driver
Series      HU10
Voltage Rating      120 VAC
Amperage Rating      1.6 A
Lamp Type      LED
Color Temperature      3000 K
Color Rendering Index (CRI)      90 CRI
Lens Type      Frosted Glass
Mounting Type      Cabinet
Housing Material      Aluminum
Dimensions      10 in L x 5 in W x 1-1/4 in H
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_HU1009D930MB_Brochure.pdf
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127863342.pdf
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-halo-hu10-br518005en-bro.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128394016.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-halo-hu10-adv150144-ins.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_HU1009D930MB_Datasheet.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128309267.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537667966589.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-halo-hu10-td518002en-spec-sss.pdf
  • videoVideo Link http://www.cooperindustries.com/content/public/en/lighting/products/indoor_ceiling_wall_mount_lighting/undercabinet/_823259.videos.html#product-tabs
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf
  • Less than 3/4 in overall fixture height
  • Heavy gauge aluminum housing
  • Cord and plug or direct wire
  • Even light distribution
  • >0.99 power factor
  • <10% total harmonic distortion
  • 330 Lumens/ft nominal
