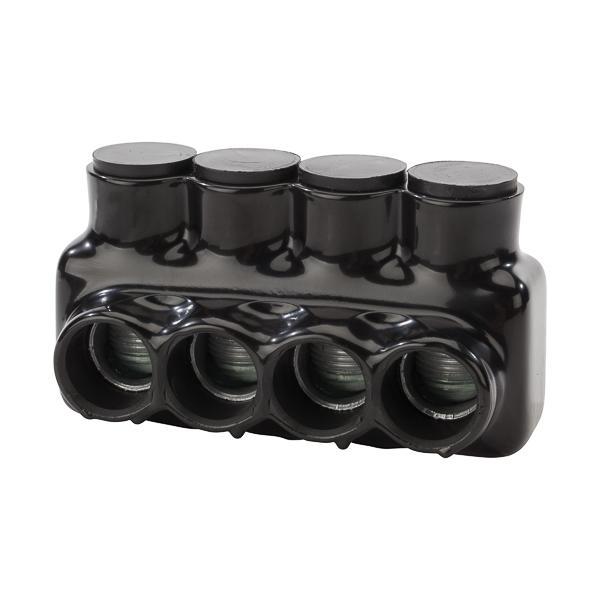

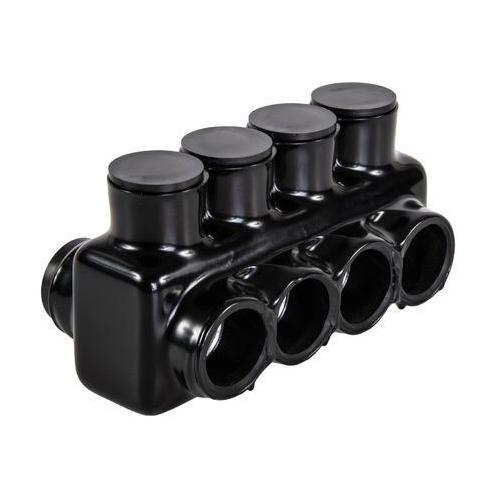

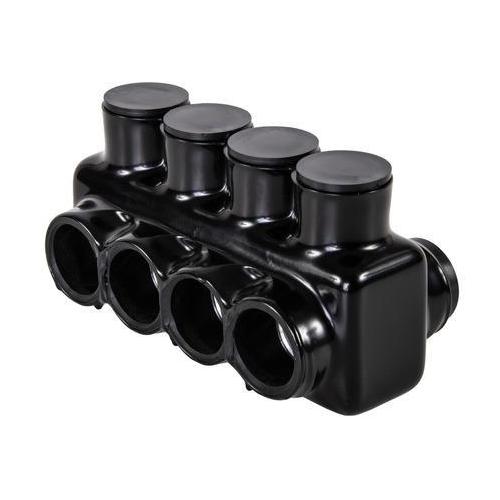

The Polaris IPLD500-4 4-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to four conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 500 MCM - 4 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, which is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IPL500-4 connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 806 and 631 respectively. These connectors are even UL-listed for parallel configurations, allowing you to tackle larger jobs safely. Polaris: the original pre-insulated connector and still the brand most asked for by name.

NSI Polaris™ Insulated Multi-Tap Connector, Double Sided Entry, Series: IPLD, Aluminum/Copper Conductor, 4 AWG to 500 kcmil Conductor, 600 VAC, 1 Pole, 4 Conductor, Class B and C Wire Type, 5/16 in Hex, -45 to 90 deg C, Plastisol, Black, 5.24 in L x 2.83 in W x 2.91 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_IPL4-3_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_IPL4-3_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_IPLD500-3_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_IPLD500-3_Technical_Bulletin.pdf

• Dual-Sided Wire Entry, Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 500 MCM and 4 AWG
• Ergonomic Design, Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
• Removable Plugs, Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
• Pre-filled Oxide Inhibitor, All 4 dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
• Parallel Rated, This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
