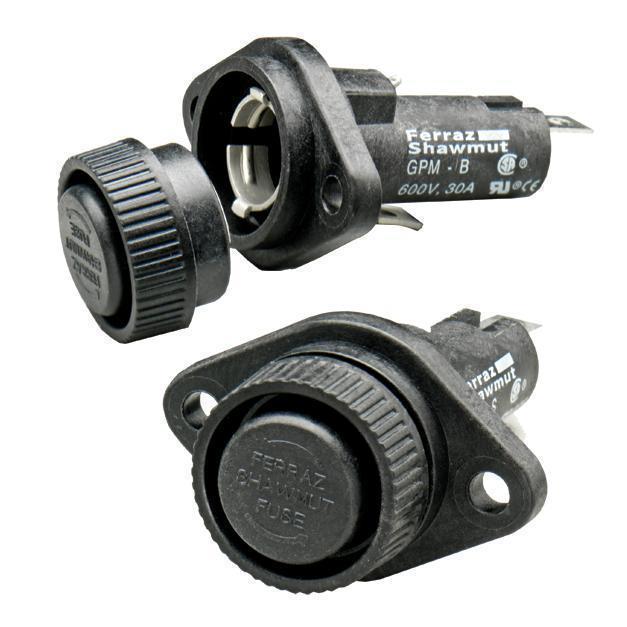

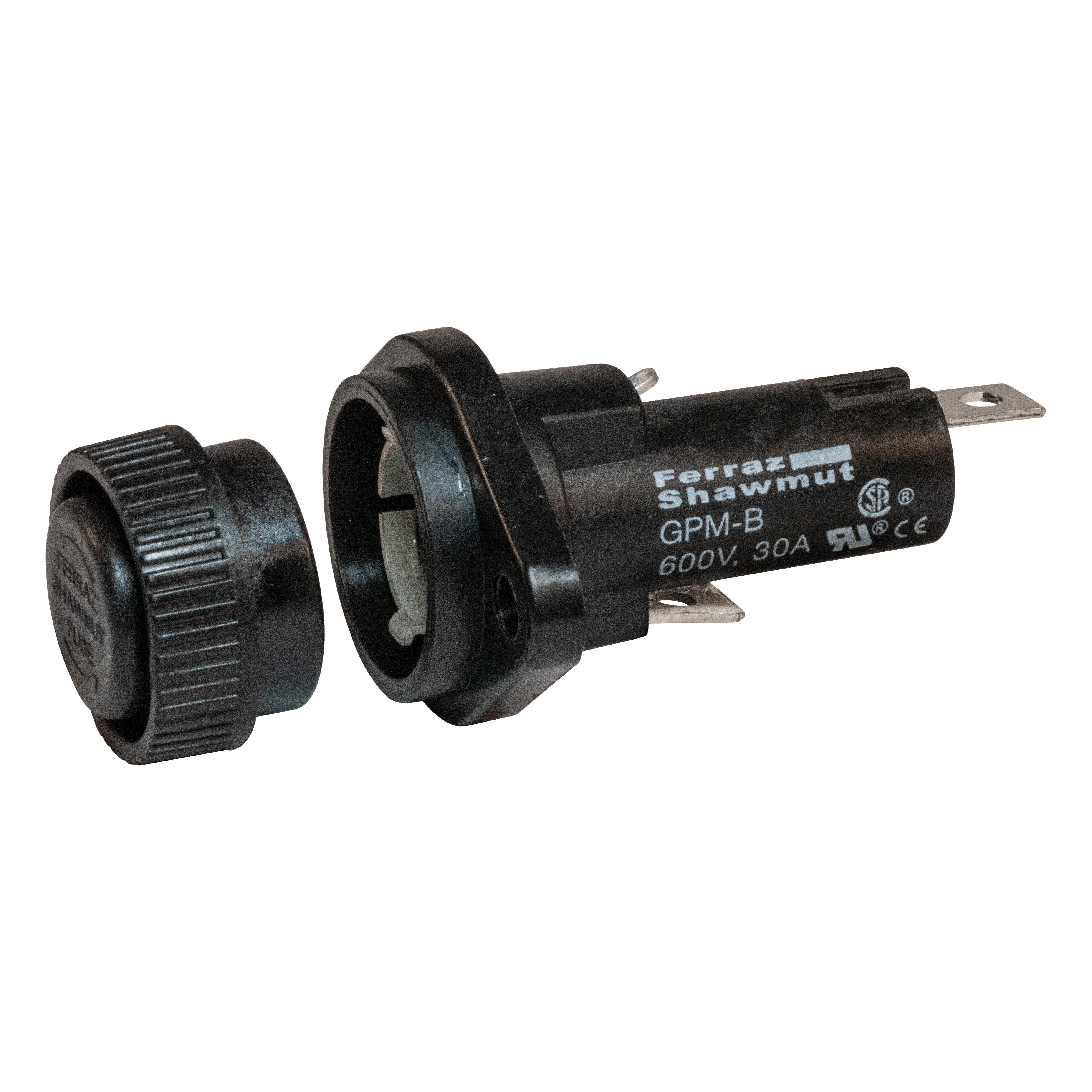

Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.

Mersen Fuse Holder, Miniature, Series: GPM, 600 VAC, 30 A, 1 Pole, 1, Class: Midget, 1/4 in Quick-Connect/Solder, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: ATQ, ATM, TRM, OTM, GGU, A13X-2, A25Z-2, A60Q-2 and A6Y-2B Series Fuse, Polycarbonate, 1.13 in L x 1.71 in W x 2.42 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_GPM-S90_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_GPM-S90_Specification_Sheet.pdf

• 1/4 turn bayonet knob cap
• 100 kA short-circuit current rating
