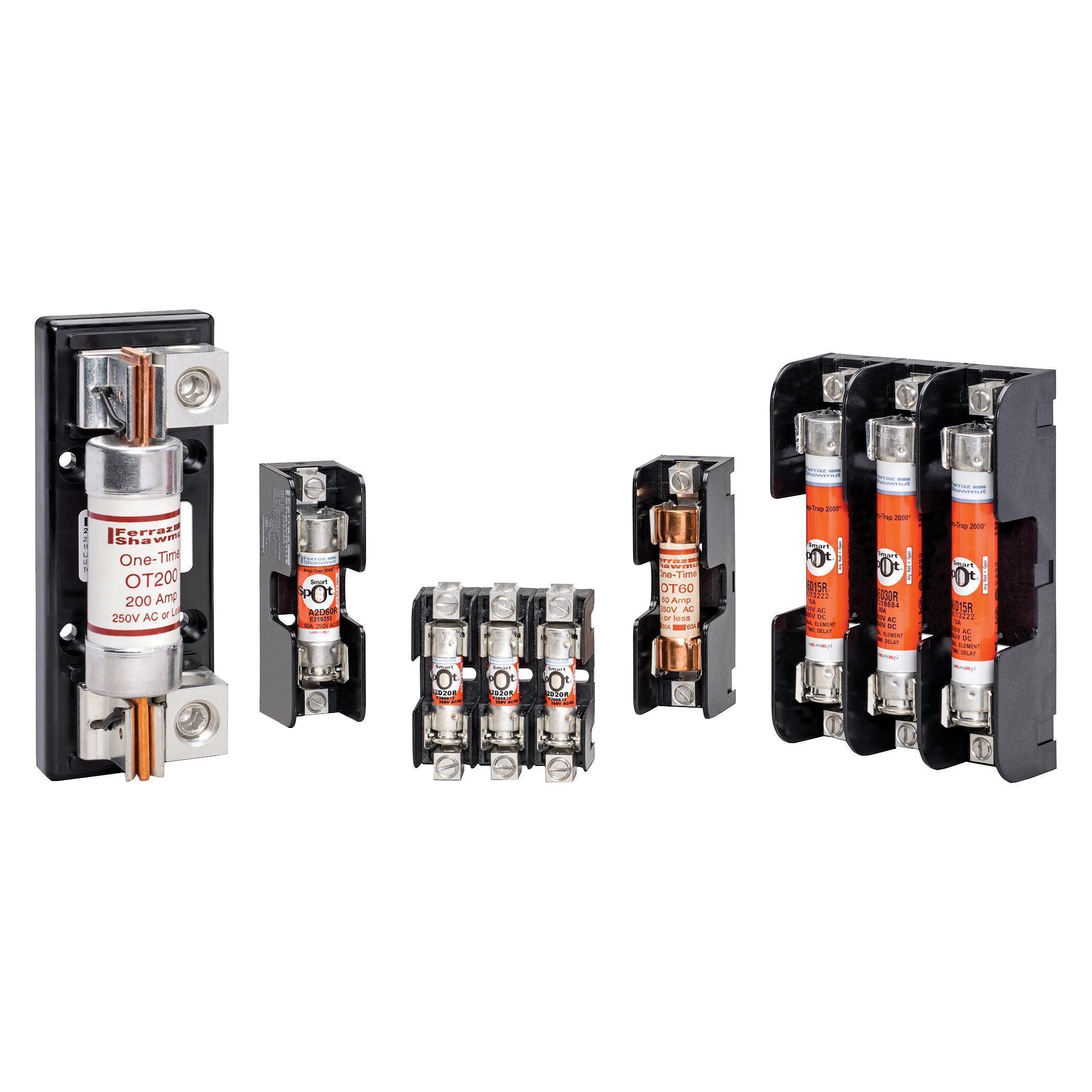

Mersen Class H and K fuse blocks accommodate all Class H and K power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. 30, 60, 100 and 200 A fuse blocks feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper.

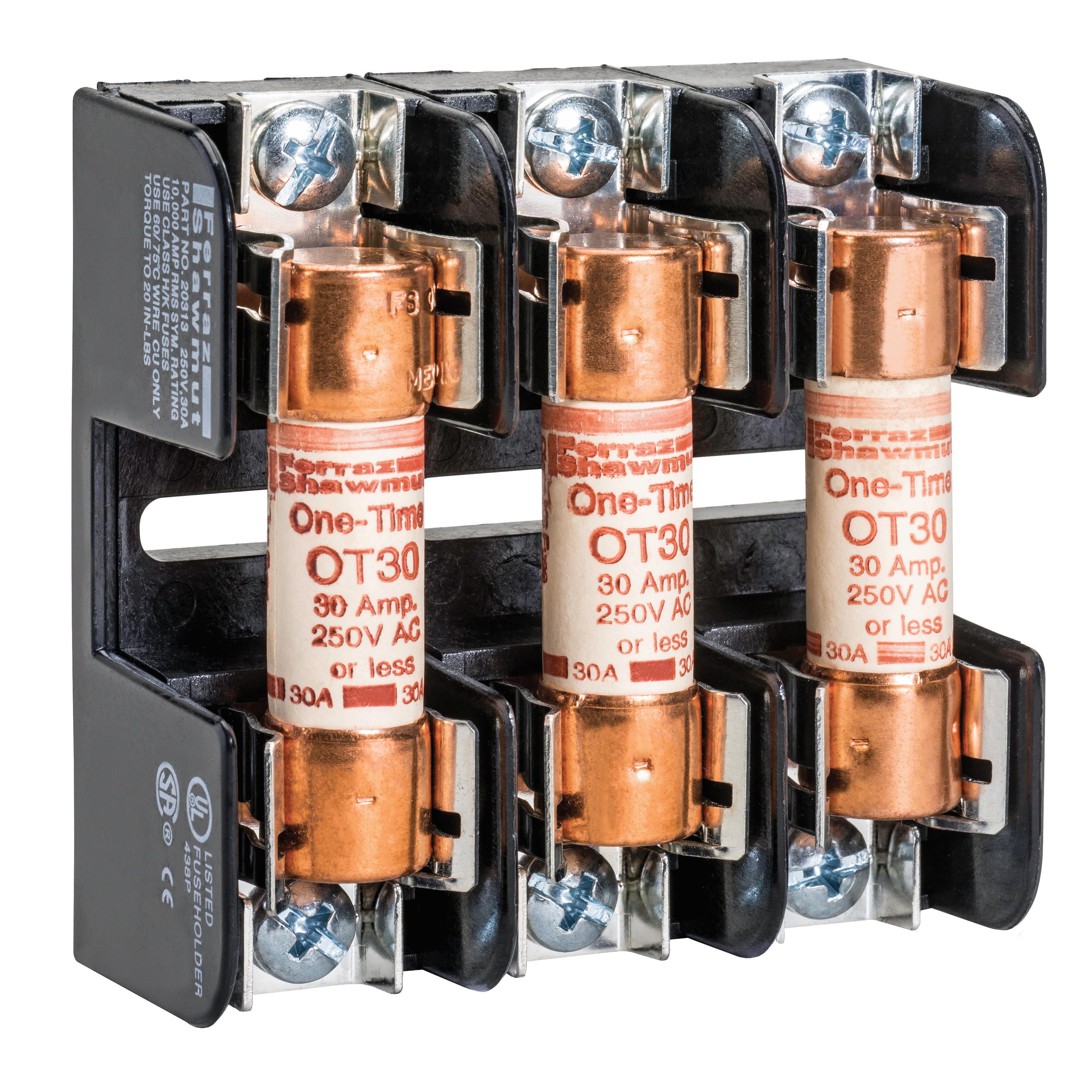

Ferraz Shawmut Fuse Block, Open Style, 250 VAC/VDC, 30 A, 3 Pole, 3, Class: H, Screw, 14 to 10 AWG Wire, Threaded Mount, For Use With: OT, RF, A2Y Types 1 and 3 OTN, CRN and NRN Fuse, Glass Reinforced Polycarbonate, 3 in L x 3 in W x 1.38 in H

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873512592.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_FerrazShawmut_20305_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11450/BRO_ADV-H-Fuse-Blocks-and-Holders-Class-K-250V-Fuse-Blocks.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599195142.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11450/ID-SPE-v1-DS-Class-H-K-R-250V-600V-Fuse-Blocks-Mersen-H.pdf

• 10 kA short circuit current rating
