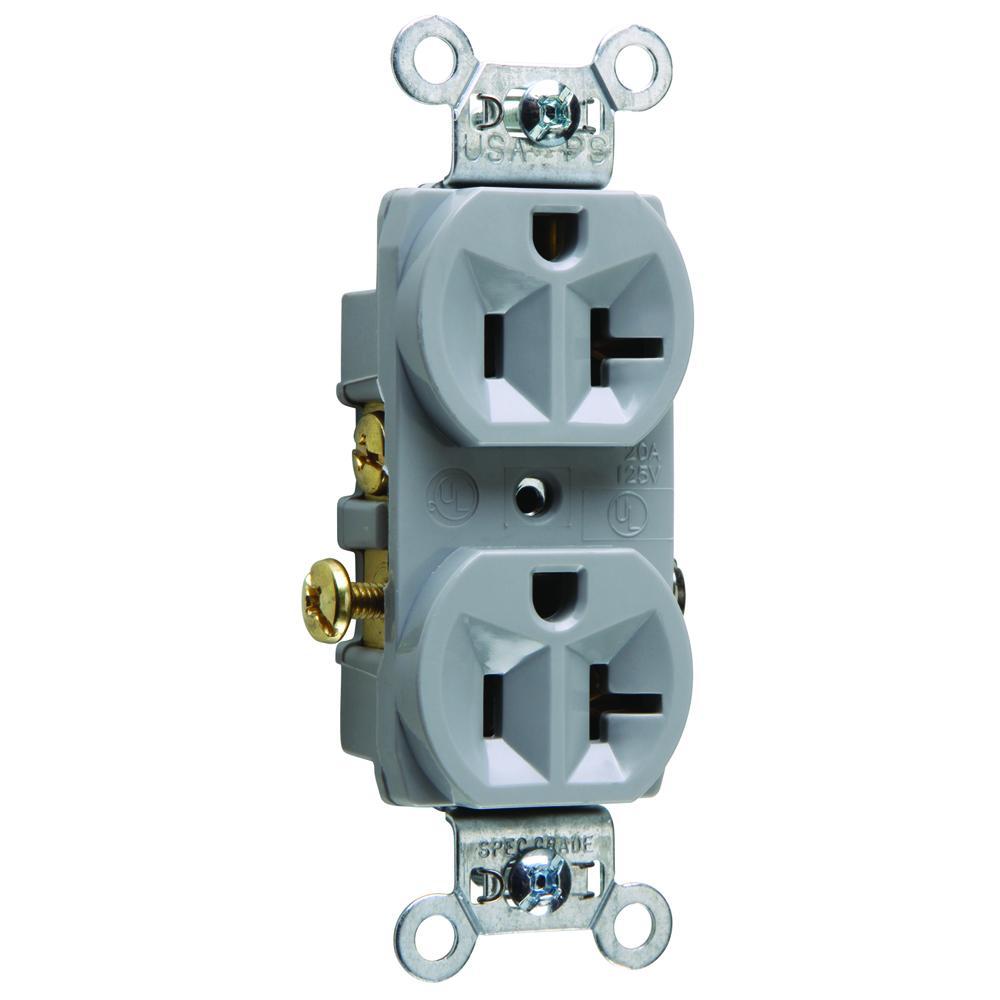

Pass & Seymour® Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential Grade, -40 to 50 deg C, Side Wire Terminal, Thermoplastic, Gray, 3.3 in H x 1.32 in W x 0.78 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CR20RED_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CR20RED_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8200BK_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8200BK_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CR15_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CR15_Specification_Sheet.pdf

• Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
• 0.032 in thick, brass, triple-wipe power contacts for lasting retention
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
• Accepts 14 - 10 AWG solid or stranded copper or copper-clad wire
• Terminal compartments isolated from each other for positive conductor containment
• Auto-ground clip assures positive ground
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
• Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
• Operating Temperature, Maximum continuous +50 deg C, minimum -40 deg C without impact
