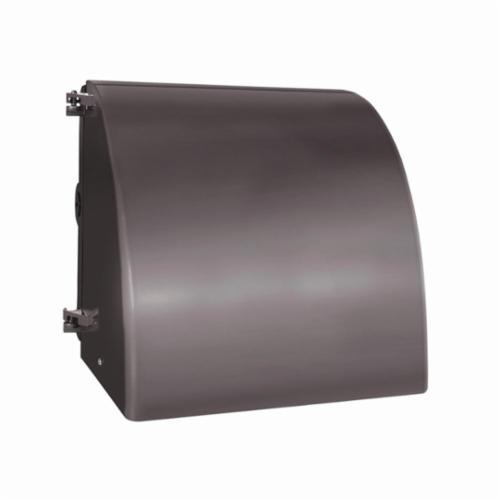

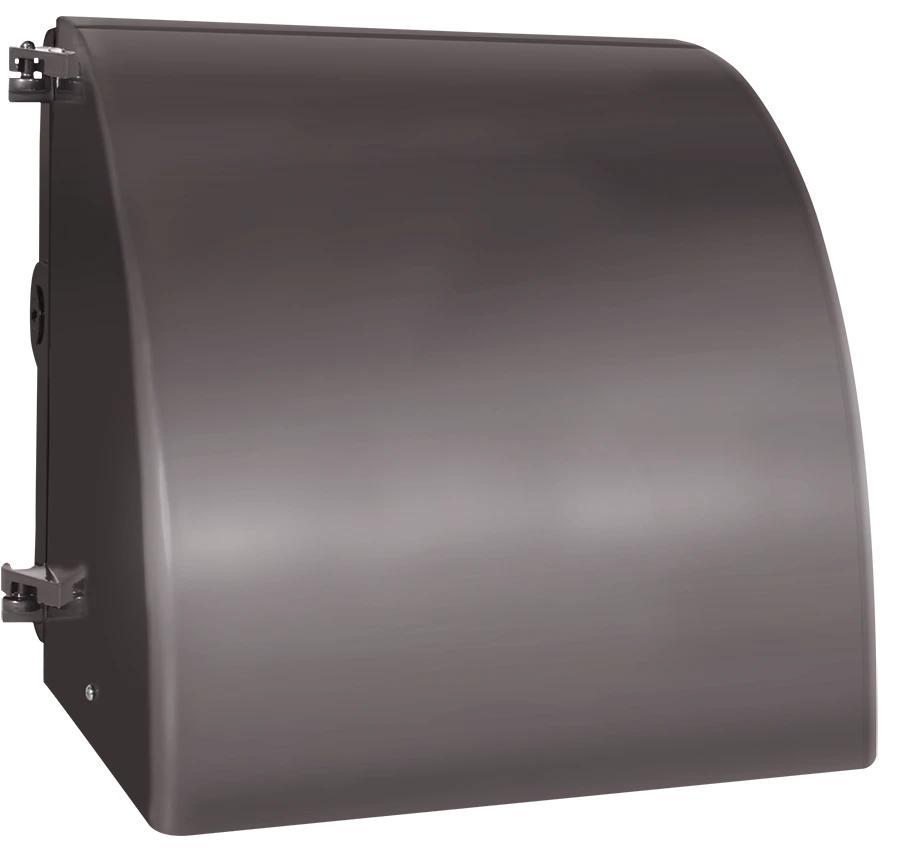

RAB Wallpack, Full Cutoff HID, Series: WP1, 120/208/240/277 VAC, 129 W Fixture, 1.2/0.8/0.7/0.6/0.5 A, ED17 Lamp, 100 W Lamp, Medium Lamp Base, 1 Lamp, 15000 hr Average Life, HX-HPF Quad Tap Ballast, Flat Tempered Glass Lens, 9000 Lumens, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9 in H x 10-3/8 in W x 9-1/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WP1FCH100QT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WP1FCH100QT_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf

• Easy access conduit openings and ballasts for fast internal wiring
• Silicone gasket remains in-place during re-lamping
• Cut-off glare shield for friendly lighting
• Hinged door swings open and remains captive for easy re-lamping
• 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol
• Hinged refractor frame
• Continuous 1-piece silicone rubber gasket
• Semi-specular anodized aluminum, removable for installation
• Symmetrical light pattern maximizes distance between fixtures reflector
• Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
• Top, side and back conduit openings
• 70 Lumens/W efficacy at lamp, 78% efficacy at ballast
• 1.2/1.2 A at 120 VAC, 0.7/0.7 A at 208 VAC, 0.7/0.8 A at 240 VAC, 0.6/0.5 A at 277 VAC
