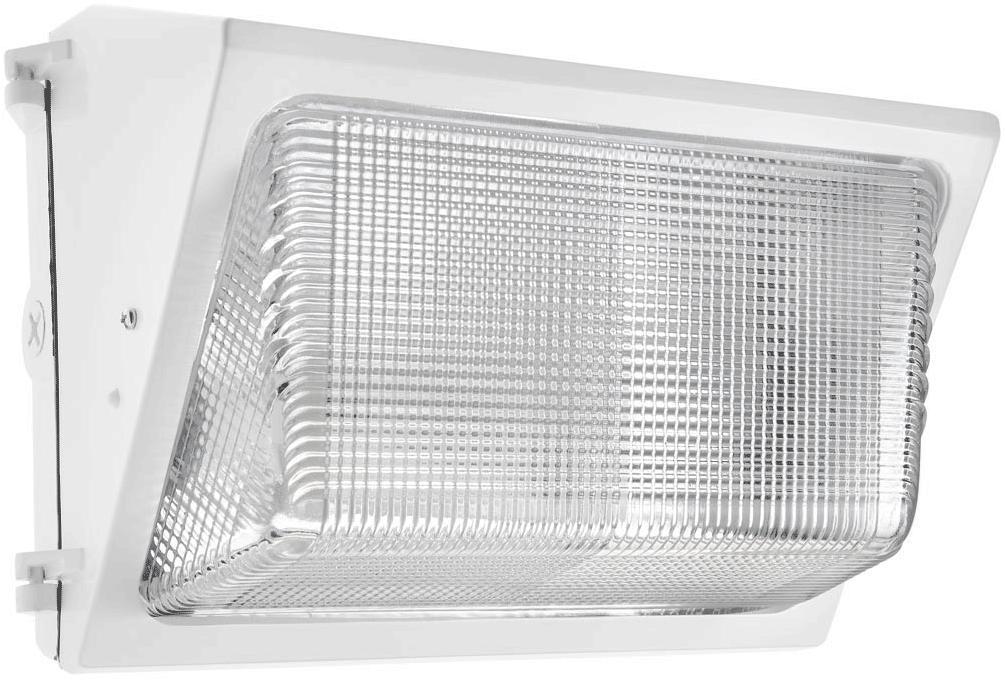

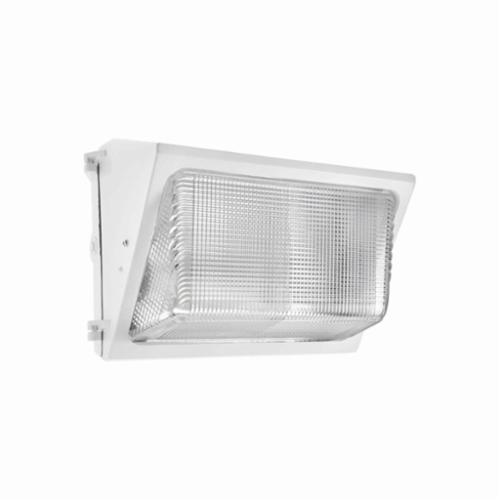

RAB Wallpack, Series: WP2, 120/208/240/277 VAC, 93 W Fixture, 0.78/0.5/0.5/0.33 A, CFL/Triple Tube Lamp, 84 W Lamp, GX24q-4 Lamp Base Type, 1 Lamps, 12000 hr Average Life, Electronic HPF Quad Tap Ballast, Tempered Glass Lens, 6400 Lumens, Wall Mount, Die Cast Aluminum Housing, White Housing, 9 in H x 14 in W x 7-1/4 in D

• VIDEO LINK https://www.youtube.com/watch?v=GQ-TTqLz7v0
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf

• Drilling template for easy box mounting
• Silicone gasket remains in-place during relamping
• Top, side and back conduit openings
• 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol
• Hinged refractor frame
• Continuous silicone rubber gasket
• Specular anodized aluminum, removable for installation, symmetrical light pattern maximizes distance between fixtures
• Symmetrical light pattern maximizes distance between fixtures reflector
• Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
• Prismatic optics designed to minimize glare and throw light down and out
• Heat resistant borosilicate glass
• 69 LPW efficacy at lamp, 90% efficacy at ballast
• 0.78 A at 120 VAC, 208 A at 208 VAC, 0.5 A at 240 VAC, 0.33 A at 277 VAC
