Offering maximum versatility the Philips Advance family of SmartMate® ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple tube, circline, 2D and long twin tube lamps. SmartMate® ballasts energy efficient design, compact and lightweight housing and user-friendly features make these ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement.

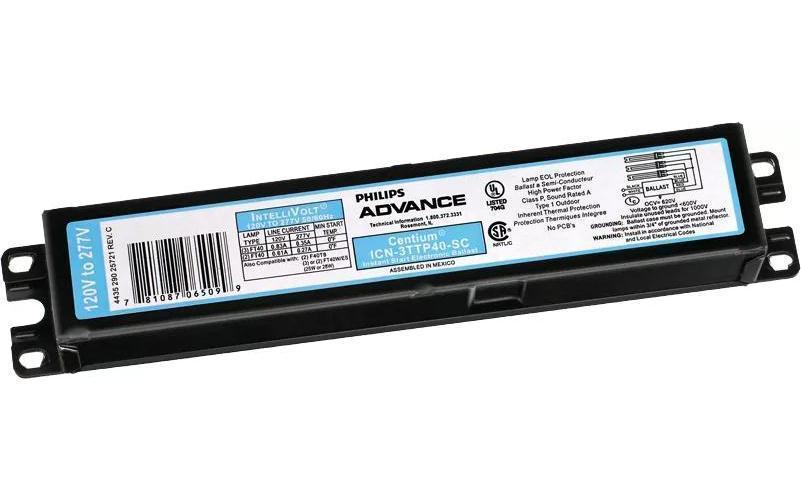

Advance Centium® Compact Fluorescent Ballast, Electronic Small Can, Twin Tube 2G11 CFL Lamp, 40 W Lamp, 99/97 W Wattage, 120 to 277 VAC, 0.35 to 0.83 A, 60 Hz Frequency, Instant Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, 3 Lamps, 4-Pin 2G11 Lamp Base, Ballast Factor: 0.88, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_ICN3TTP40SC35M_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_ICN3TTP40SC35M_Specification_Sheet.pdf

• Solid wire type
• 18 AWG wire
• Automatic restart
• 1.7 lamp current crest factor
• 0.5/0.375 mm L wire strip
• Allowed wiring configuration remote, tandem, through with maximum distance ballast to lamp 20 ft
• 0.1 s ignition time
• Parallel lamp connection
• High power factor
