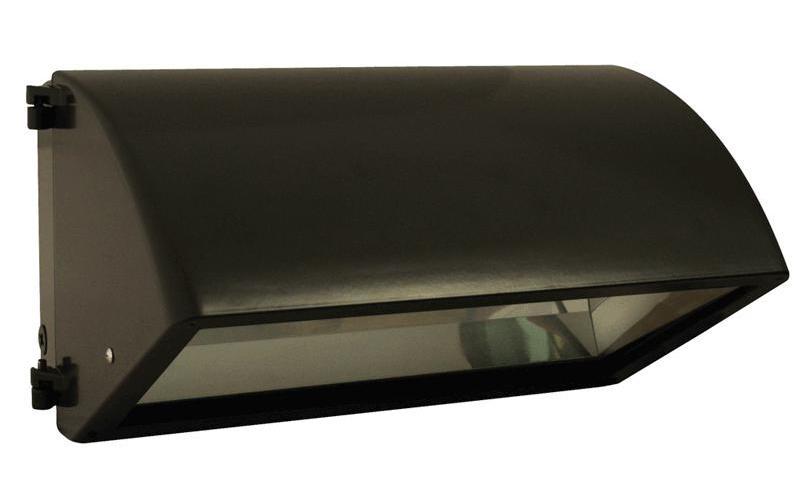

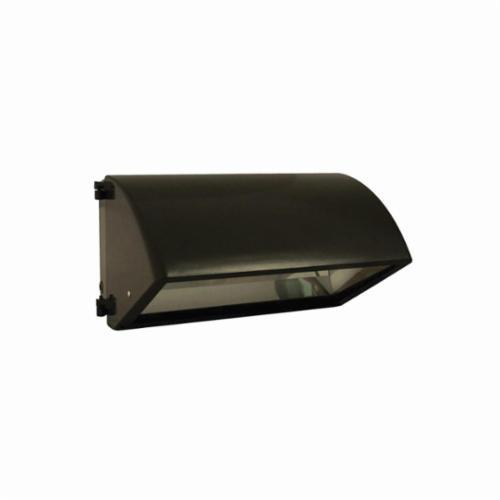

RAB Wallpack, Cutoff, Series: WP3, 120/208/240/277 VAC, 295 W Fixture, 2.5/1.7/1.5/1.3/1.1/1/0.8/0.7 A, ED28 Lamp, 250 W Lamp, Mogul Lamp Base, 1 Lamp, 24000 hr Average Life, Constant Wattage Autotransformer (CWA) HPF Quad Tap Ballast, Tempered Glass Lens, 28500 Lumens, Wall Mount, Die Cast Aluminum Housing, Bronze Housing, 9 in H x 18 in W x 9-3/8 in D

• VIDEO LINK https://www.youtube.com/watch?v=GQ-TTqLz7v0
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf

• Hinged door frame opens and remains captive for easy relamping
• Silicone gasket remains in-place during relamping
• 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol
• Hinged refractor frame
• Continuous silicone rubber gasket
• Specular anodized aluminum, removable for installation
• Symmetrical light pattern maximizes distance between fixtures reflector
• Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
• 97 LPW efficacy at lamp, 85% efficacy at ballast
• 1.7/2.5 A at 120 VAC, 1/1.5 A at 208 VAC, 0.8/1.3 A at 240 VAC, 0.7/1.1 A at 277 VAC
