Pass & Seymour® 7813PMD

Share Print

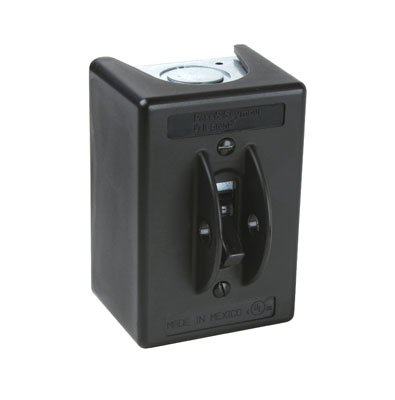

Pass & Seymour® 7813PMD 3-Way Manual Controller Switch, 600 VAC, 30 A, 60 Hz

  • MPN: 7813PMD

  • IESPN: 229116

  • UPC: 785007267693

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® 7813PMD

Pass & Seymour® Manual Controller Switch, 3-Way, 600 VAC, 30 A, 60 Hz Frequency, 30 A at 600 VAC Contact, 3 Pole, Toggle Actuator, Back/Side Wired Connection, NEMA 1 Enclosure, Surface Mounting, 1000/50000 Cycles Operating Cycles, Thermoplastic, Environmental Conditions: -40 to 75 deg C Operating Temperature, 2.825 in W x 2.8 in D x 3.91 in H Dimensions

Type      3-Way
Voltage Rating      600 VAC
Amperage Rating      30 A
Frequency Rating      60 Hz
Contact Rating      30 A at 600 VAC
Number of Poles      3
Actuator      Toggle
Connection      Back/Side Wired
Enclosure      NEMA 1
Mounting      Surface
Operating Cycles      1000/50000 Cycles
Material      Thermoplastic
Environmental Conditions      -40 to 75 deg C Operating Temperature
Dimensions      2.825 in W x 2.8 in D x 3.91 in H
  • High Horsepower rating of 20HP
  • Gull-wing shaped brass terminal pressure clamps
  • Constructed of glass-reinforced thermoplastic
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
