Pass & Seymour® PS560R9S

Share Print

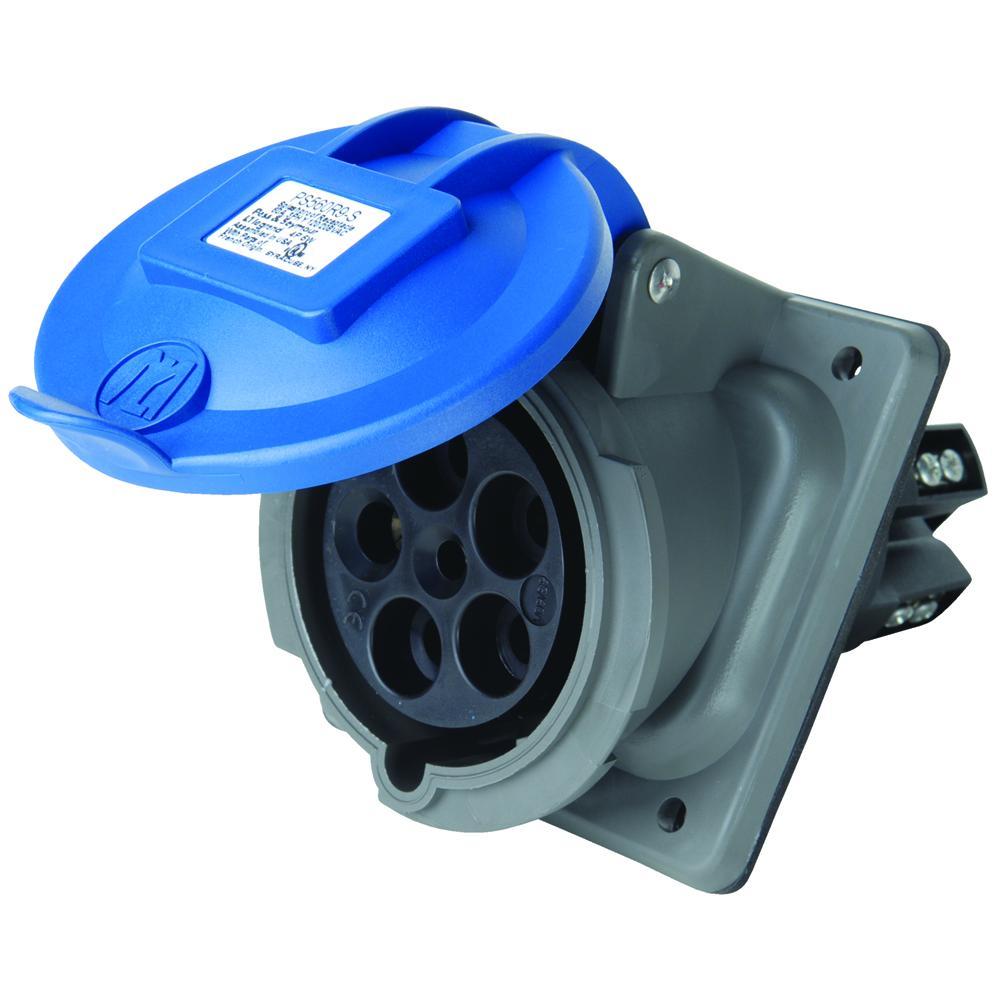

Pass & Seymour® PS560R9-S 3-Phase Splashproof Pin and Sleeve Receptacle, 277/480 VAC, 60 A, 4 Poles, 5 Wires, Black

  • MPN: PS560R9S

  • IESPN: 194141

  • UPC: 785007617702

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® PS560R9S

Pass & Seymour® Pin and Sleeve Receptacle, 3-Phase Splashproof, 277/480 VAC, 60 A, 60/400 Hz, 4 Pole, 5 Wires, Commercial Grade, IP44 Enclosure, -50 to 80 deg C, Screw Terminal, Thermoplastic/Nylon, Black, 6-3/4 in

Type      3-Phase Splashproof
Voltage Rating      277/480 VAC
Amperage Rating      60 A
Frequency Rating      60/400 Hz
Number of Poles      4
Number of Wires      5
Grade      Commercial
Enclosure      IP44
Temperature Rating      -50 to 80 deg C
Terminal Type      Screw
Material      Thermoplastic/Nylon
Color      Black
Dimensions      6-3/4 in
  • Legrand Pin and Sleeve products provide installation ease, enduring performance in harsh conditions
  • Arrives ready to wire, with cord grip open and cable-ready
  • Front and back body require no disassembly prior to assembly
  • Nylon construction for highimpact and corrosion resistance
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated
  • Natural-rubber grommets provide watertight protection at cable entry
  • Combination-head screws for added convenience and quick installation
