Pass & Seymour® TR5362WSP

Share Print

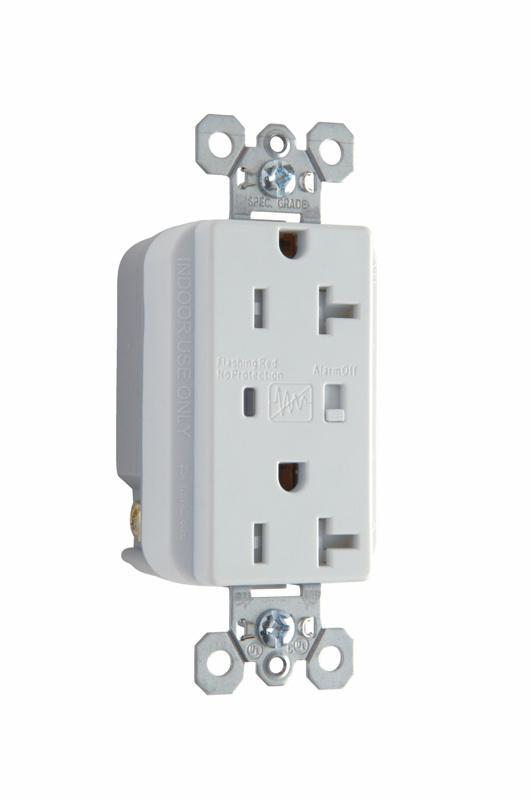

Pass & Seymour® TR5362WSP Duplex Extra Heavy Duty Surge Protective Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

  • MPN: TR5362WSP

  • IESPN: 199537

  • UPC: 785007020335

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® TR5362WSP

Pass & Seymour® Straight Blade Receptacle, Duplex Extra Heavy Duty Surge Protective Tamper-Resistant, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -4 to 131 deg F, Back/Side Wire Terminal, Nylon/Thermoplastic, White, 1.75 in W x 0.94 in D x 3.82 in H Dimensions

Type      Duplex Extra Heavy Duty Surge Protective Tamper-Resistant
Voltage Rating      125 VAC
Amperage Rating      20 A
Frequency Rating      60 Hz
Number of Poles      2
Number of Wires      3
NEMA Rating      NEMA 5-20R
Grade      Specification
Temperature Rating      -4 to 131 deg F
Terminal Type      Back/Side Wire
Material      Nylon/Thermoplastic
Color      White
Dimensions      1.75 in W x 0.94 in D x 3.82 in H
  • Dual mechanical shutter system to help prevent insertions of foreign objects
  • AC receptacles available in 15 and 20 A 125V
  • 0.032 in thick brass triple-wipe power contacts for lasting retention
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
  • Auto-ground clip assures positive ground
