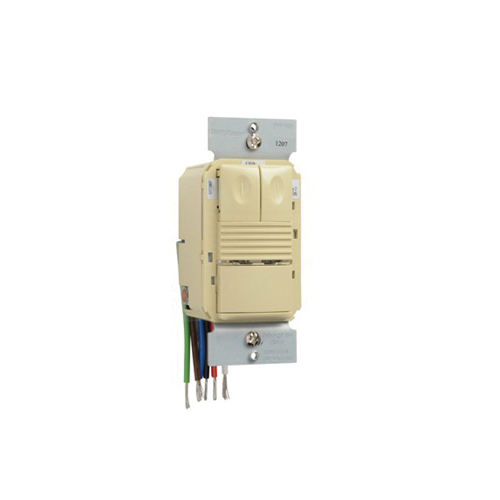

Pass & Seymour® Occupancy Vacancy Sensor, Bi-Level, 120/230/277 VAC, 1/6 hp Power, 1050 sq-ft Coverage, 180 deg Viewing, 5 to 30 min Time Delay, Incandescent Lamp, 50/60 Hz Response, Automatic On/Manual Off Control Output, Ivory, 2.73 in H x 1.76 in W x 1.83 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_WSP201_I_Datasheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_WSP201_I_Datasheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=qsVCQV9uGKM&feature=youtu.be

• Choice of auto-on or manual ON operation, selectable for each relay
• Selectable time delay automatically adjusts for maximum savings
• Selectable walk-through mode turns lights off three min after the room is initially occupied if no motion is detected after the first 30 sec
• Selectable test mode allows quick and easy adjustments, selectable audible alert for impending shutoff
• In Auto-ON mode, if the sensor is manually turned OFF, Auto-ON will not enable until no motion is detected for 5 min, this prevents the light from turning ON when it was intended they remain OFF, ideal for presentations
• LED indicates occupancy detection
• Built-in light level sensing with simple, one-step setup
• Override mode allows sensor to operate as a service switch in the unlikely event of a failure
• NEMA WD 7 guideline utilized for coverage testing
• PIR (high/low) sensitivity adjustment, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp load, 1-pole
• 180 deg, up to 1050 sq-ft, major motion 35 x 30 ft, minor motion 20 x 15 ft
• Incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp load
• Requires neutral
• Incandescent, fluorescent, compact fluorescent lamp
• Up to 1050 sq-ft, 35 ft x 30 ft major motion, 20 ft x 15 ft minor motion coverage
