Wiremold® evolution furniture feed series floor boxes are just some of the latest advancements in open space solutions from one of the most innovative manufacturers in the industry. Features such as one box that works in three different floor types (concrete, raised and wood floors) and large knockouts for cable feeds, makes it ideal for applications such as commercial office spaces, conference rooms and entertainment venues.

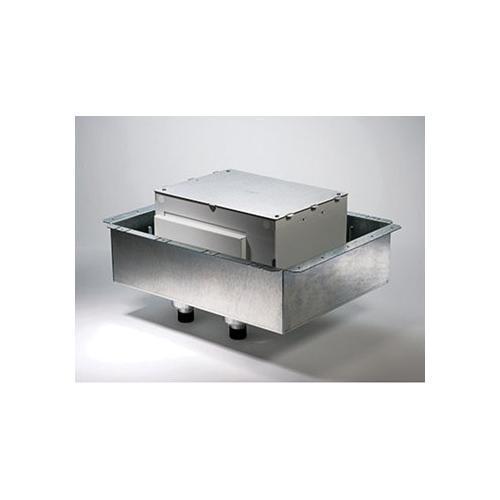

Wiremold® Floor Box, Fire Classified, Series: Evolution™ Series, 8 Gangs, 4 Knockouts, 1-1/4 in Knockout, Concrete/Floor/Threaded Mounting, 246 cu-in Capacity, Steel, 21-3/4 in L x 17-1/4 in W x 6-1/4 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_EFB6S_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_EFB6S_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_EFB8S-FC_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_EFB8S-FC_Installation_Manual.pdf
• VIDEO LINK https://www.youtube.com/watch?v=QV8L6sF_C6k
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf

• Designed to accept standard size wall plates
• Box comes complete with all components needed for initial installation
• Consult structural engineer before making cuts into decking
• Add additional supports as instructed by the structural engineer
• Outlet Boxes and Fittings Classified for Fire Resistance Wiremold (R8209) Type EFB6S-FC, EFB8S-FC and EFB10S-FC preset electrical insert for use in 2 hr fire rated D900 Series
• Floor-Ceiling designs constructed with nominal 2 in or 3 in deep fluted steel floor units having a nominal 5 in wide valley and crests spaced 12 in OC, with a minimum 3 1/4 i inch (83mm) thickness of structural concrete topping
• When installed in accordance with the installation instructions accompanying the preset electrical insert and when the preset electrical insert is spaced 2 in (0.61m) OC with not more than one unit per 4 square feet (0.37m2) of floor area in each span
