Compact bodies leave more room for wires in the box, but that isn't the only way these durable Pass & Seymour® hospital grade receptacles speed installation. They also feature an auto-ground and screw-pressure-plate back wiring (with the option of side wiring). Long service life is ensured by one piece, triple-wipe brass power contacts and a heavy gauge strap that is locked into the high strength thermoplastic back body. A sturdy mechanical shutter system helps prevent children from inserting objects into the receptacle.

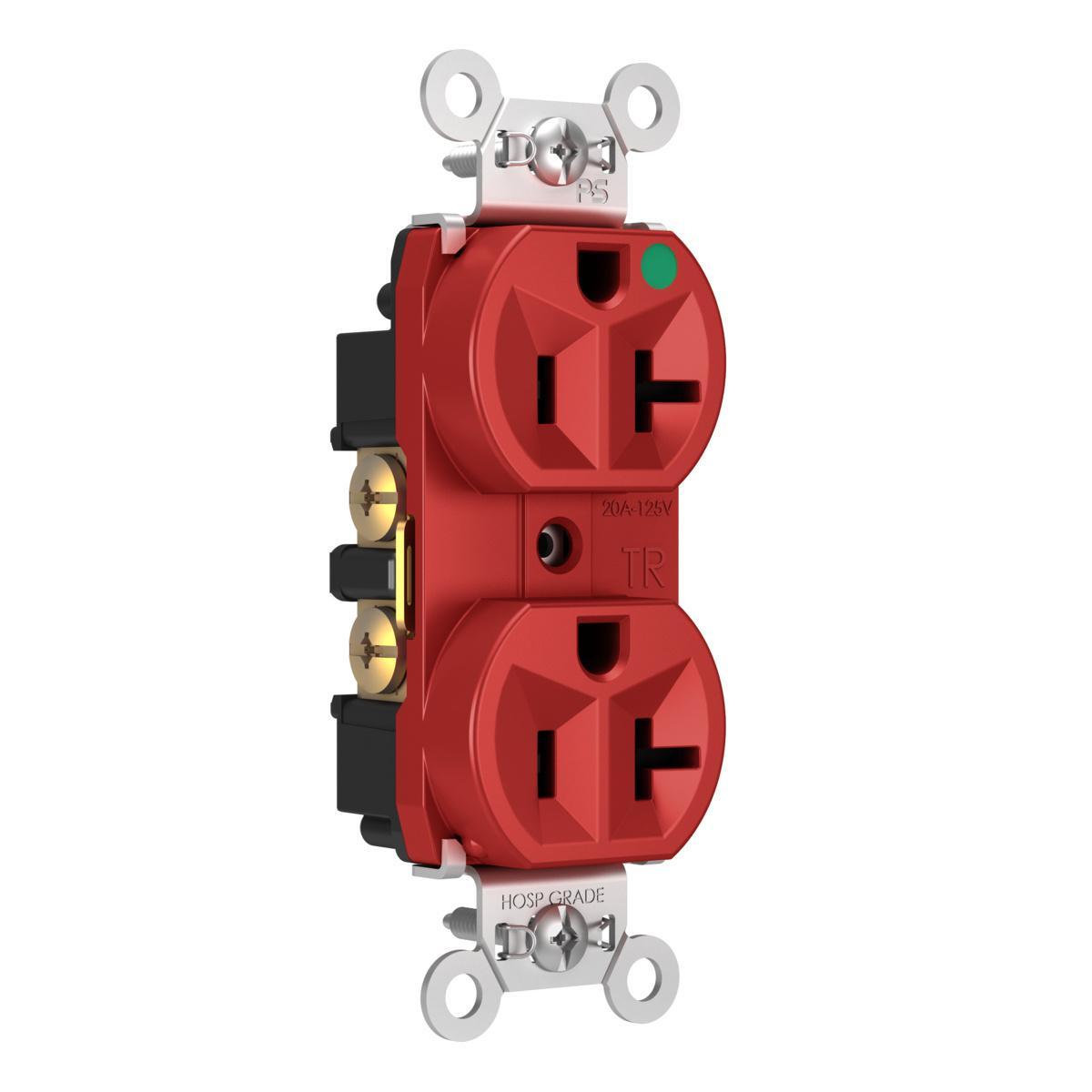

Pass & Seymour® Straight Blade Receptacle, Duplex Heavy Duty Tamper-Resistant, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Red, 1.322 in W x 0.78 in D x 3.281 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR8300HW_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR8300HW_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_15010_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_15010_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR8300HW_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR8300HW_Specification_Sheet.pdf

• Impact-resistant nylon face
• Easily accessible break-off line contact connecting tab for split circuit wiring
• Corrosion-resistant, zinc-plated steel strap is locked in
• Internal screw-pressure-plate back wire and side wire line terminals accept 14 : 10 AWG copper or copper-clad conductors
• Compact design for easy installation
• Tri-drive terminal and mounting screws
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
