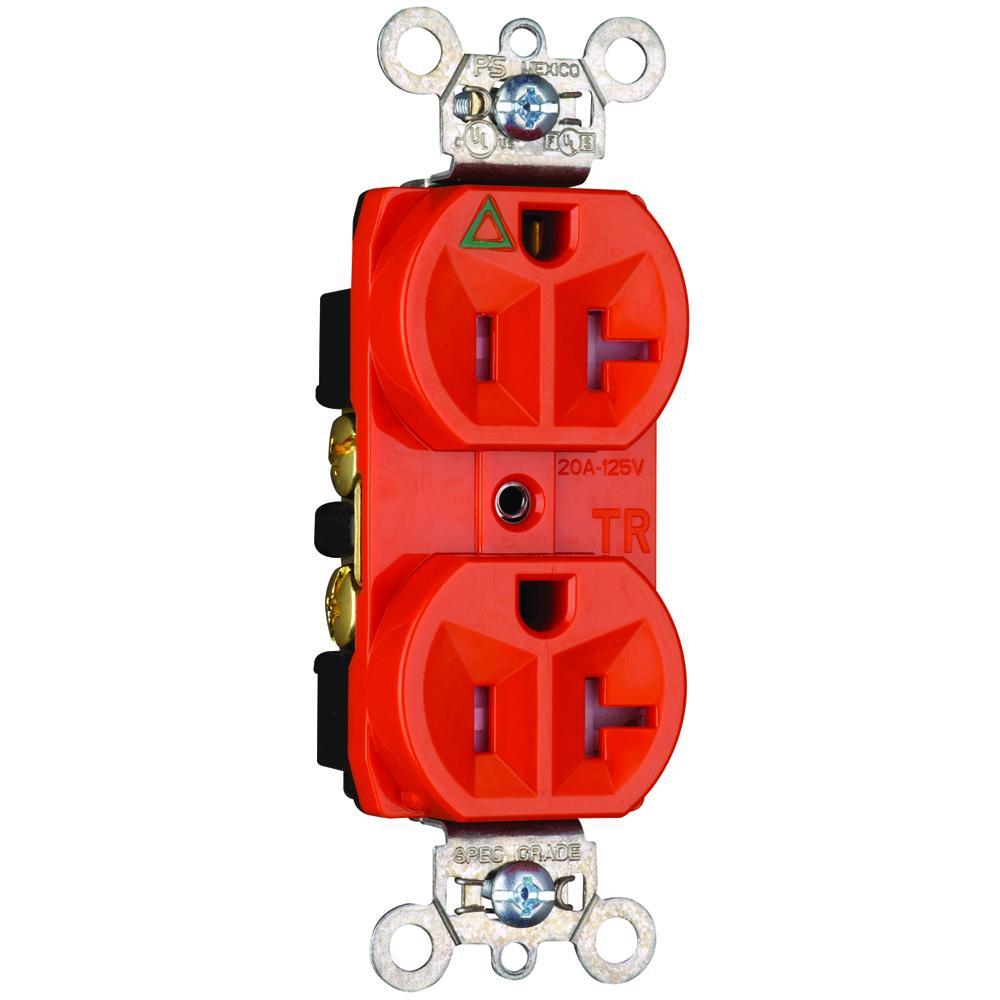

Pass & Seymour® Straight Blade Receptacle, Duplex Heavy Duty Isolated Ground Tamper-Resistant, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, Orange, 1-3/16 in L x 1-1/4 in W x 3-5/8 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PJ50_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PJ50_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_15010_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_15010_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CRL515P_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_CRL515P_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TRIG5362_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TRIG5362_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=CjT4MIzB4sw

• Dual mechanical shutter system to help prevent insertion of foreign objects
• Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
• Backed-out tri-drive brass terminal screws for faster installation
• Internal screw-pressure-plate back and side wire capability
• Two back wire holes for additional wiring flexibility
• 0.032 in thick brass triple-wipe power contacts
• Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
• Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
• Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
