This 4 in low voltage airtight aluminum housing is insulation contact rated. This housing is suitable for new construction in both residential and commercial applications. Features thermal protector guards, adjustable hangar bars and Ideal® push-in wire connectors for easy installation.

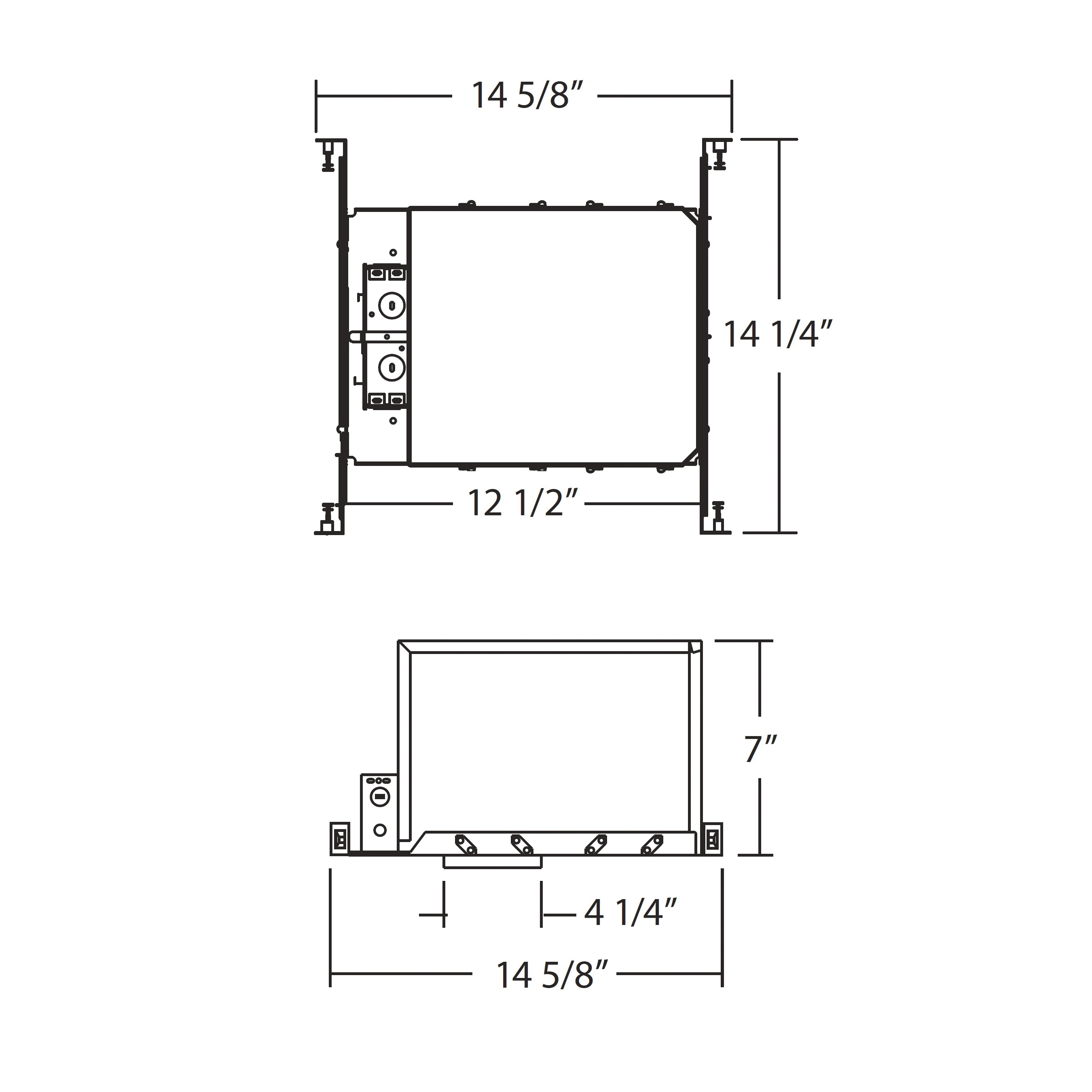

Nicor Recessed Housing, New Construction Low Voltage Universal, 12 VAC, 4-1/2 in Ceiling Opening, MR16 GU5.3 Halogen Lamp, 50 W Lamp, 1 Lamp, IC Insulation, Ceiling Mount, 4 in Dia, 7 in Height, 14-1/4 in Width, 14-5/8 in Depth, Aluminum Housing, Neutral

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14101AR_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14101AR_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14102A_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14102A_Specification_Sheet.pdf

• Aluminum construction provides greater heat dissipation
• Non-IC insulation must be kept a minimum of 3 in from housing
• 7 in height allows use in 2 x 8 in joist construction
• Housing is secured to plaster frame with screws and can be removed for access to junction box
• Housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness
• Transformer includes integral thermal protector guards against improper lamping and misuse of insulation materials
• Uses low voltage 20 to 50 W MR-16 or JC type lamps (12 V) (not included)
• Class H 50 W transformer, step down from 120 to 12 V
• Use dimmers specifically designed for low voltage magnetic transformers
• Supplied with three push-in wire connectors
• Four pry-outs with integral strain relief simplify Romex installation
• Unique hanger bar lip design helps align can to joist
• Four double headed captive nails provide for ease of installation
• Bars can be repositioned 90 deg on plaster frame without tools
• Bars fit onto T-bar spine for quick alignment and can be permanently secured
• Score lines allow bars to be shortened without tools to accommodate a 12 in joist span
• Heavy gauge Nicor captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24 in joist span, then locked in place with set screws
• Washington State Energy Code approved to meet restricted airflow requirements
• Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
