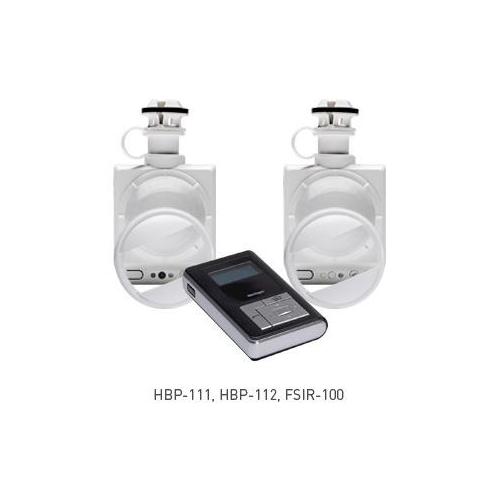

The HBP Series high Bay™ passive Infrared (PIR) occupancy sensors provide automatic control of individual LED and fluorescent lighting fixtures in warehouses and other indoor high and low Bay™ spaces. The lens is engineered to provide reliable coverage from a wide range of mounting heights (15 to 40 ft) and coverage can be masked for aisleway applications using a snap-on accessory (included . A hold off daylighting feature keeps lighting off when the ambient light level is above the selected threshold. Time delay and light level settings can be adjusted via function-specific trimpots.

WattStopper® Fixture Mount Occupancy Sensor, High/Low Bay, Series: HBP-100, 24 VDC, 0.2 W, Passive Infrared Sensor, 1200 sq-ft Coverage, 360 deg Viewing, 15 min Delay, LED Lamp, 50/60 Hz Response, Flying Lead, Automatic On/Automatic Off Control Output, 35 deg C, Plastic, White, 4.95 in L x 2.76 in W x 1.64 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBP111L7_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBP111L7_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_HBPL7_Technical_Bulletin.pdf

• Compact line voltage sensor with integral lens for all high Bay™ applications
• 360 deg coverage (from 15 to 40 ft), rotatable snap-on aisleway masking
• Adjustable time delay and hold off day lighting level
• Snap-in mounting hardware
• Tungsten, electronic and magnetic ballasts, fluorescent and LED compatible load
• Maximum, medium, low via trimpot or FSIR-100 default maximum sensitivity
• Pushbutton functions: manual mode, test mode, service mode, fail-on mode, fail-off mode, factory default
• 5 to 95% non-condensing relative humidity
• ABS, flame-retardant, impact-resistant material
• lens covers 100 in diameter area from 40 in height
• HBP-111 adjustable via handheld wireless configuration tool
• 120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
