Resource RFB series of floor boxes are versatile recessed activation solutions that provide power, communication and/or audio/video services to open space areas or directly to workstations. Resource RFB series floor boxes are available in two to six-gang models with a variety of aesthetic cover options including colors and profiles available.

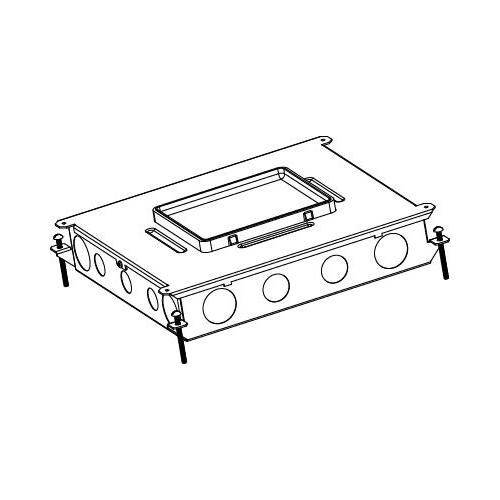

Wiremold® Recessed Floor Box, Above Grade/On-Grade, Series: RFB, 6 Gangs, 26 Knockouts, 3/4 to 1-1/4 in Knockout, Concrete/Threaded Mounting, 254 cu-in Capacity, Steel, 14-5/8 in L x 14 in W x 3-1/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB-B_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB-B_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB6E_Instruction_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB6E_Instruction_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB6_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_RFB6_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_828SPTC_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_828SPTC_Warranty_Information.pdf

• Provides the first recessed wood floor box for both commercial and residential applications
• Special fusion bonded epoxy corrosion resistant paint finish allows for slab-on-grade use without the weight of cast-iron material
• Allows a consistent aesthetic finish for the RFB2, RFB4 and RFB6 series recessed floor boxes
• Labor savings by adapting to various pour depths and conditions
• Allows for most conduit schemes, even feed through capability, which saves time and money during installation
• Provides top guard protection from water, dirt and debris and has been redesigned for added strength and durability
• Flexibility in design to have adjacent compartments wired together
• Can adapt to most power and communication needs, reduces overall life cycle cost
• Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, and video applications at the point of use
