Auto-close egress doors. Egress doors lock in position when slid open and automatically close around cables, reducing the egress opening to the smallest size possible. Improved hinge design. Provides greater durability while creating a more fluid, intuitive, opening and closing motion. Designed for a 6 in [152 mm] core hole and provides up to two and one-half (2-1/2) gangs of power, communication or A/V capability.

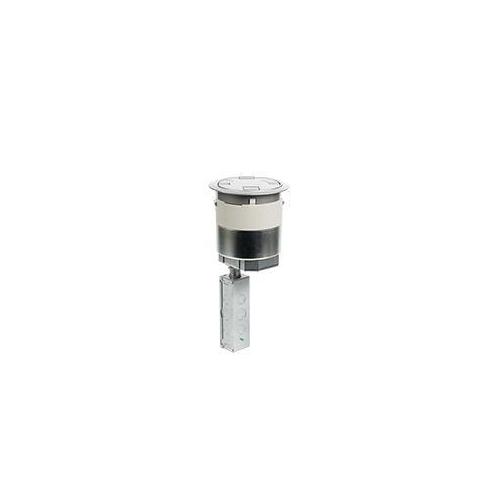

Wiremold® Evolution Poke-Through Assembled Device, Multi-Service Unwired Recessed, Series: 6AT, 6 in, 16-3/4 in Length, 7-3/4 in Width, For Use With: 6CTC2, 6CT2 and 6CFFTC Style Cover, Black/Brass/Bronze/Gray/Silver

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_28557371a34d29d5f5f491fe018ebd764f07fa3a756d1b36130cae92bff66b04.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_28557371a34d29d5f5f491fe018ebd764f07fa3a756d1b36130cae92bff66b04.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf

• Preassembled unwired poke-thru device, Connect to conduits and install now, but save configuration and plate choices for later
• Recessed devices, All power, communications and A/V devices are recessed below floor level, providing maximum protection and device longevity
• Step-on-it' installation, Quick and easy installation without the need for additional fasteners or a second installer
• Open system for expanded compatibility, Accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron and more
• Plug load control up to 30 ft, Tested with Pass and Seymour Wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
• 2 hr fire rating, Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 2 hr
• The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
