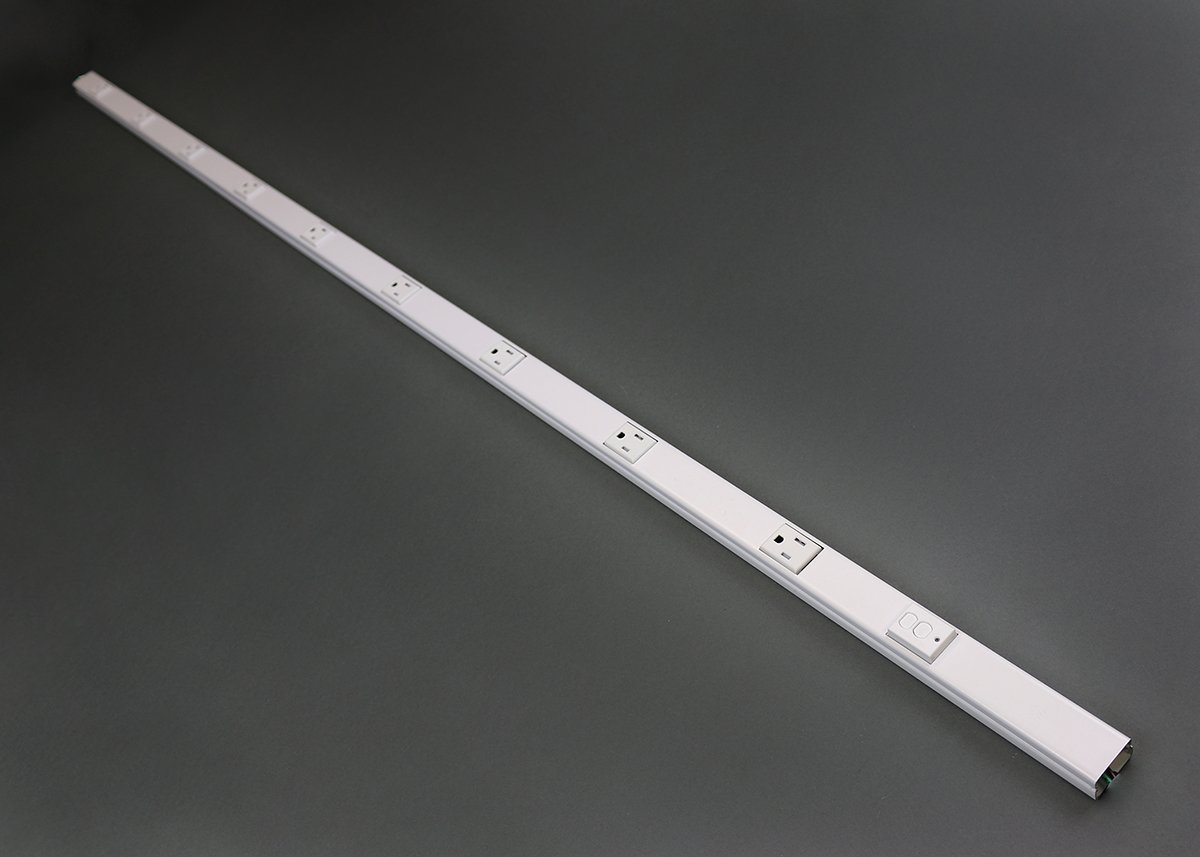

Wiremold® WH20GB506TRGFI

Wiremold® Plugmold® WH20GB506TRGFI 1-Channel Multi-Outlet Power Strip, 125 VAC, 20 A, 9 Outlets, Surface Mount

  • MPN: WH20GB506TRGFI

  • IESPN: 196920

  • UPC: 786776182460

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: UNIT
    • Availability: loading

    • Branch Availability
Wiremold® WH20GB506TRGFI

Plugmold Multioutlet Systems are now available in a tamper-resistant GFCI version that is a great solution for adding GFCI protection to multiple outlets without having to install additional outlets. The tamper-resistant feature provides safety for multi-user facilities, residential living spaces and kitchens. Designed to mount on wall surfaces, the low profile, aesthetically-pleasing design is available in 3', 5' and 6' (915mm, 1.52m and 1.8m) lengths in a variety of colors and finishes.

Wiremold® Plugmold® Multi-Outlet Power Strip, 1-Channel, Series: 2000GFCI, 125 VAC, 20 A, 9 Outlets, 60 Hz Frequency, 12 AWG Conductor, Surface Mounting, Steel Housing Material, NEMA 5-15R/Simplex Receptacle, White, 60 in L x 1-9/32 in W x 1 in H Dimensions

Type      1-Channel
Series      2000GFCI
Voltage Rating      125 VAC
Amperage Rating      20 A
Number of Outlets      9
Frequency Rating      60 Hz
Conductor Size      12 AWG
Mounting      Surface
Housing Material      Steel
Receptacle Type      NEMA 5-15R/Simplex
Color      White
Dimensions      60 in L x 1-9/32 in W x 1 in H
  • Built-in GFCI protection. Provides GFCI protection for all outlets on the Plugmold strip and all devices plugged into them. Great for residential kitchens with multiple small appliances, as well as laboratories
  • Tamper-resistant receptacles. Patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements
  • Dry interior locations
  • GB wiring configuration
  • 6 in outlet center distance
  • 3-wire, #12 THHN (1 hot, 1 neutral and 1 ground), 1 circuit, has insulated grounding conductor
  • Screw mounted to surface
  • Painted White
