All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

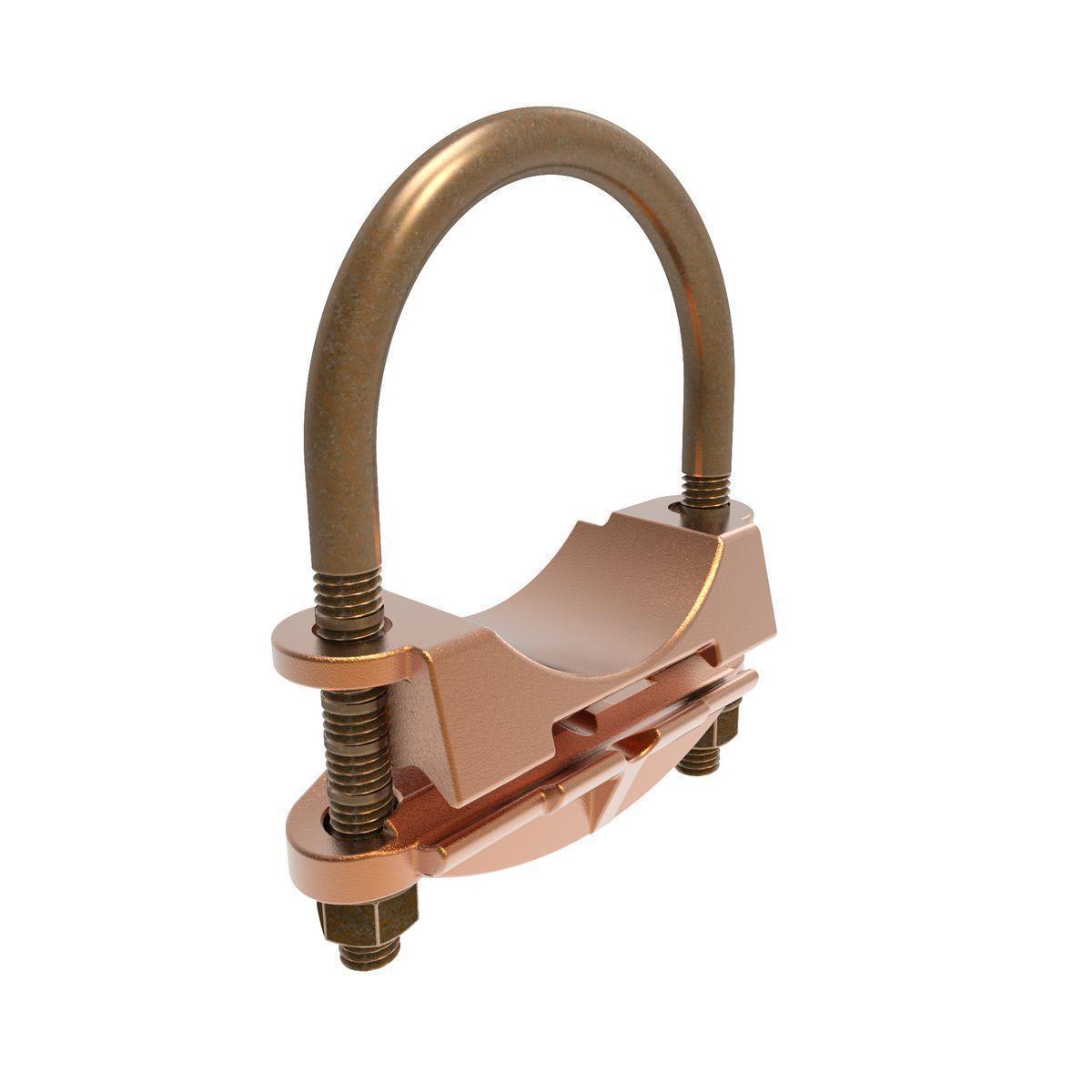

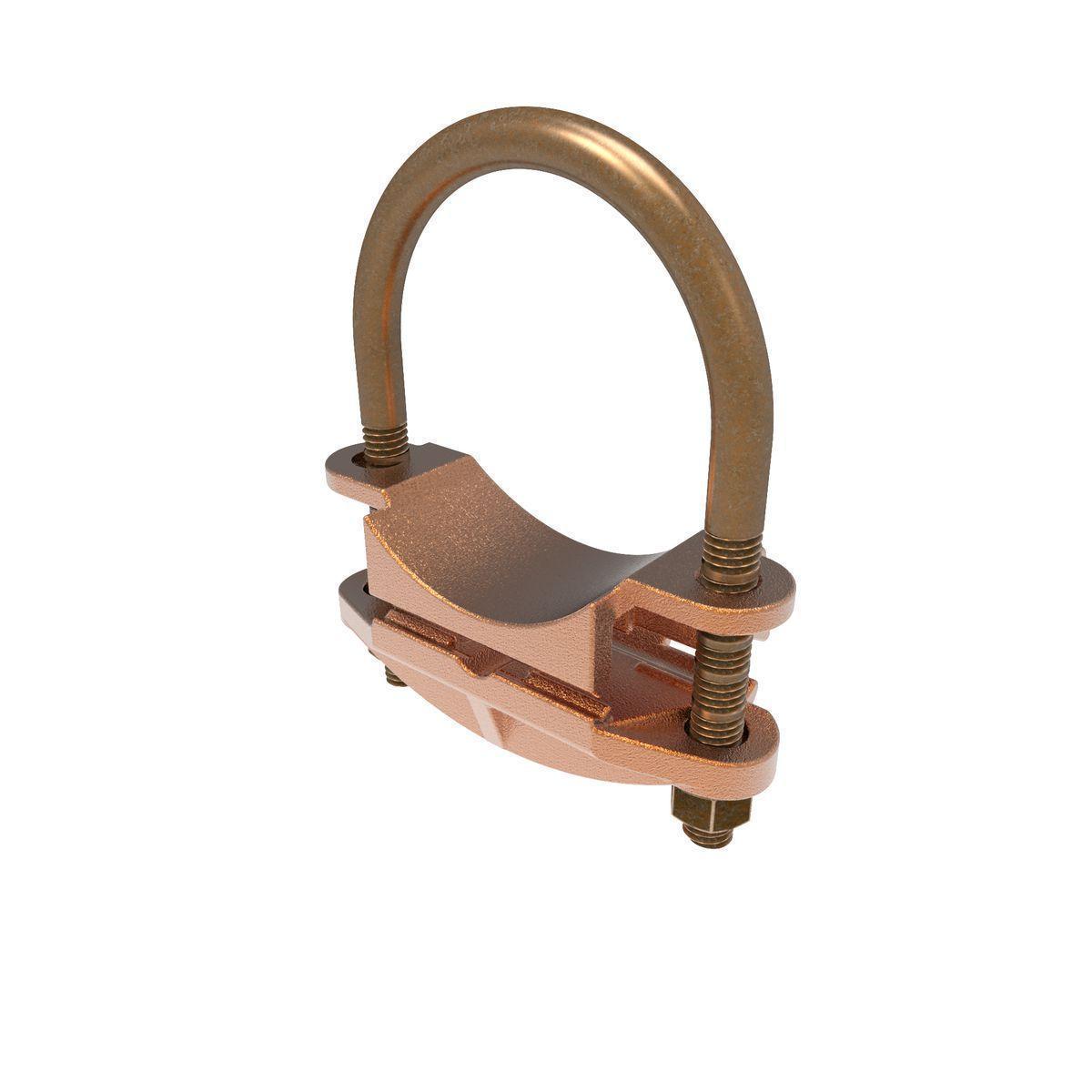

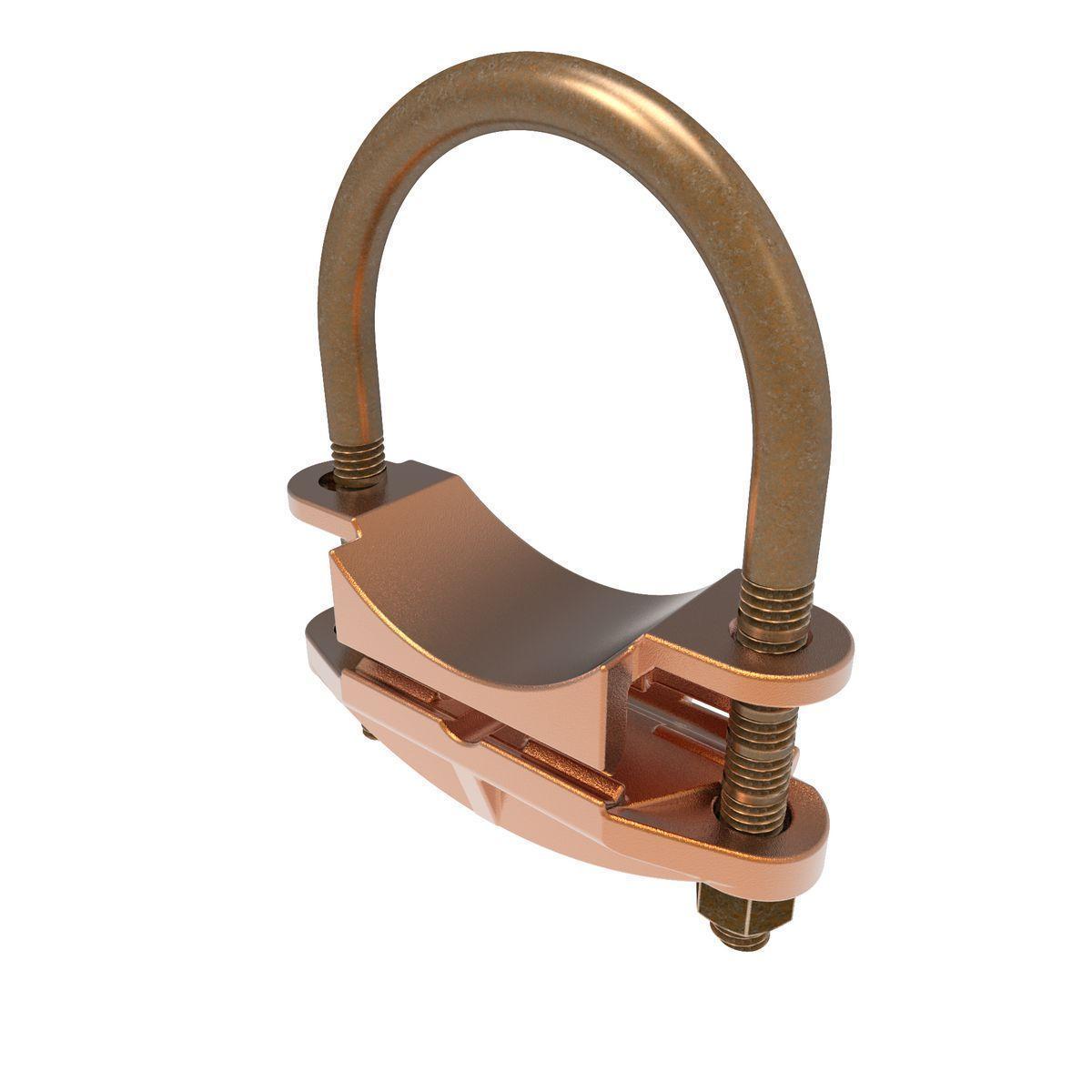

BURNDY® Mechanical Grounding Connector, Series: GAR, 2 in Pipe, 2 to 2-3/8 in Rod, Copper/Stranded/Solid Conductor, 4 to 2/0 AWG Conductor, Cable to Rod/Pipe, Wrench Installation, Copper Alloy, Bright Dipped, 1.56 in L x 3.75 in W x 4.25 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1126_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1126_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1826_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1826_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1826_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_GAR1826_Specification_Sheet.pdf

• High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube
• Especially good for fence posts
• High copper alloy cast body with Durium U-bolts, nuts and lock washers
• Permit entire connection to be buried in ground or concrete without danger of corrosion
• Acceptable for direct burial
• 240 in-lb installation torque
• 3-gang/8 in bolt size
• 4 AWG solid to 2/0 AWG stranded (main/primary) conductor size
• Silicon bronze hardware
• 2 in IPS pipe
• Made of high strength copper alloy
