Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical and impact resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring auto ground and external, screw pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.

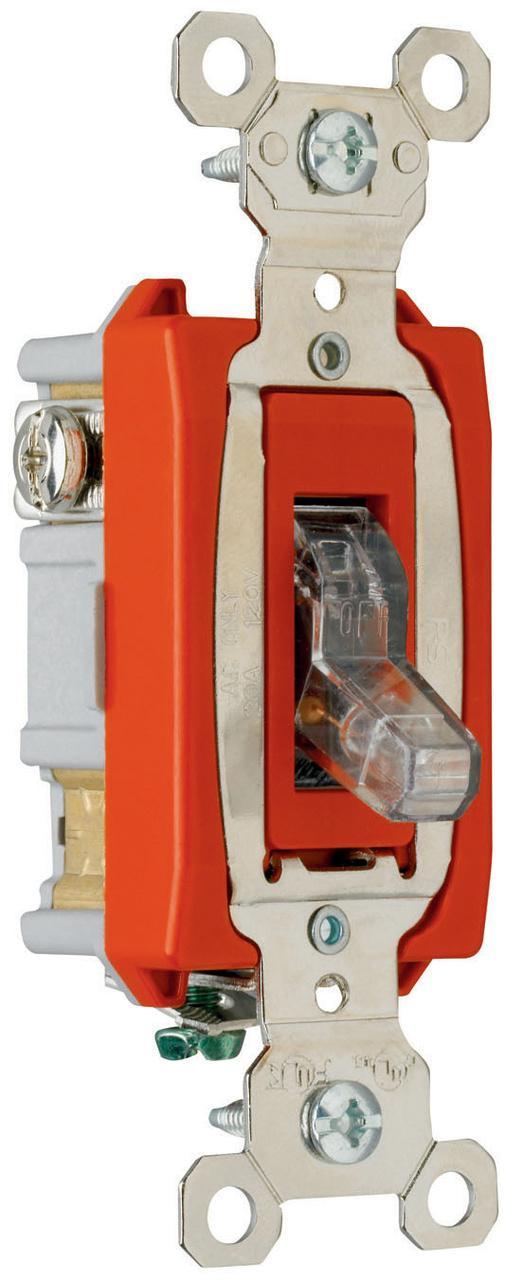

Pass & Seymour® Pilot Light Switch, Heavy Duty Specification Grade, 120/277 VAC, 20 A, 1/2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Back/Side Wired/Screw Connection, Wall Mounting, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 115 deg C Operating Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8200BK_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8200BK_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_4710_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_4710_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PS15AC3CSL_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PS15AC3CSL_Specification_Sheet.pdf

• Accepts 14 - 10 AWG copper or copper-clad conductors
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
• Cam controls fast 'make and positive break' to minimize arcing
• Heavy-duty bumper pads for quiet operation
• High strength thermoplastic polycarbonate toggle
• Back body made of glass-reinforced nylon
• Locking support provides resistance to face and back body separation
• Oversized silver alloy contacts for long life and better heat dissipation
• Grounding terminal is standard
• Shallow design for ease of installation
• Strap nickel-plated steel with integral ground
• Auto-ground clip assures positive ground
