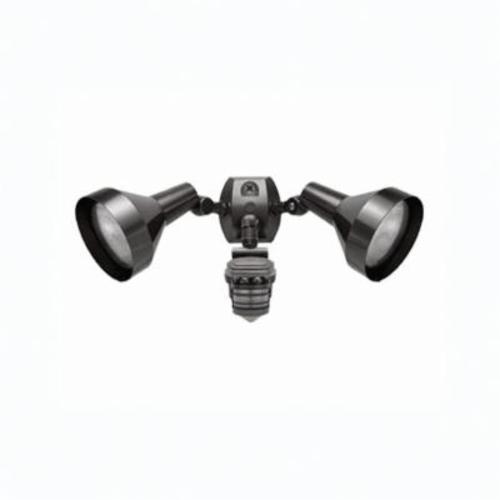

Super Stealth® 360 sensor with twin precision die cast H101 deluxe shielded bell floods pre-wired and assembled on universal CU4 EZ plate. Accepts PAR-38 lamps, 150 W maximum. Lamps not supplied.

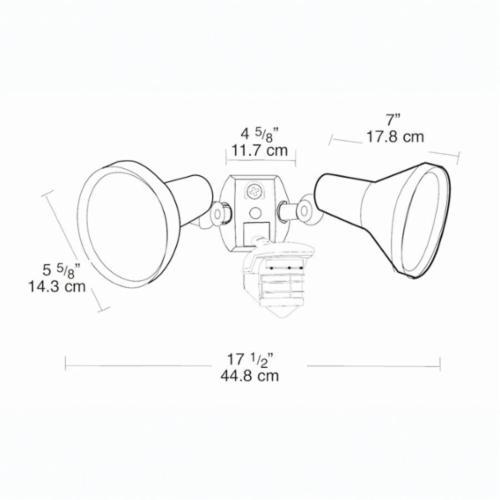

RAB Sensor Floodlight, Bell, Series: Super Stealth® 360, 120 VAC, 1 W Fixture, 8 A, PAR38 Lamp, 150 W Lamp, Medium Lamp Base, 3 Lamps, Vandal-Resistant Lens, Surface Mounting, Aluminum Housing Material, 180/360 deg Sensing, 5 s to 12 min Time Delay, 17-1/2 in L x 4-5/8 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360H_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360H_Warranty_Information.pdf

• 1000 W Incandescent at 120 VAC, 8 A switching capacity
• Protected manual override with auto-reset
• Radio frequency immunity
• 6000 VAC surge protection
• 60 Hz frequency
• Senses 180 deg out/360 deg down for total detection
• Two flip logic prevents activation by momentary power outages
• Override resets to Auto after 6 hr or at dawn, no extra wiring needed
• Can be wired in parallel
• Bronze color
• Adjustable from 100 to 30% wide sensitivity control
• Pre-wired and pre-assembled on CU4 universal EZ plate
• Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
• Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperature
• Circuits fully shielded for maximum radio frequency immunity
• 5-5/8 in Dia x 7 in H lamp
• Minimizes false triggers
• CU4 plate allows the sensor to be mounted under a soffit, scanning LED
• Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
• Customized press apply lens mask included to reduce coverage easily, STL360 full coverage pattern reduces need for aiming and adjustment
