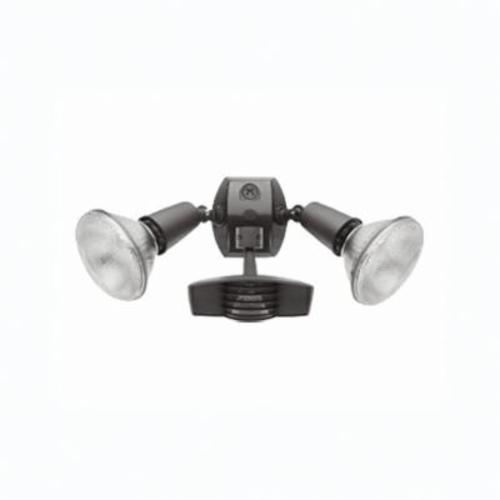

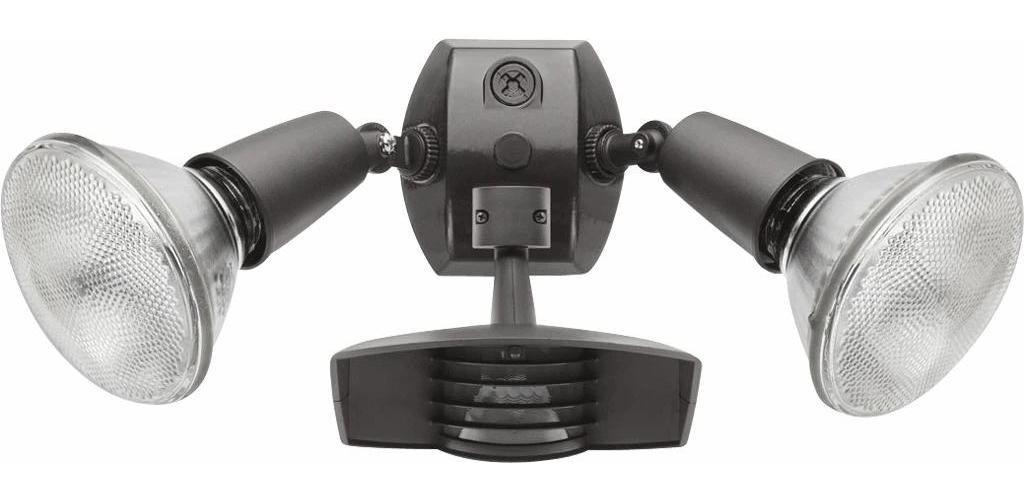

Stealth® sensor with twin die cast R90 PAR-38 floods pre-wired and assembled on universal CU4 cover plate. Accepts PAR38 lamps, 150 W maximum. Lamps not supplied.

RAB Outdoor Sensor Light, Economy, 120 VAC, 1000 W Fixture, 8 A, PAR38 Incandescent Lamp, 150 W Lamp, Medium Lamp Base, 2 Lamps, Vandal-Resistant Lens, Aluminum Housing Material, 110 deg Sensing, 5 s to 12 min Time Delay, 110 deg Detection, 3-1/2 in L x 5 in W x 5 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL110R_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL110R_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf

• 1000 W incandescent at 120 V, 8 A switching capacity
• Protected manual override with auto-reset
• Radio frequency immunity
• Color matched vandal-resistant lens and grill
• Two flip logic prevents activation by momentary power outages
• Override resets to auto after 6 hr or at dawn, no extra wiring needed
• Can be wired in parallel
• Adjustable from 100 to 30% wide sensitivity control
• LED detection and "on guard" indicator
• Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
• Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
• Circuits fully shielded for maximum radio frequency immunity RF immunity
• Customized press apply lens mask included to reduce coverage easily
• Minimizes false triggers, 1/2 in NPS threaded
• Keeps sensing pattern level for fast, error free installation horizontal lock, no tool joints
• Precision die cast aluminum, 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
• Stealth sensor with twin die cast R90 PAR38 floods pre-wired and assembled on universal CU4 cover plate
• Lamps not supplied
• Non-fixture
