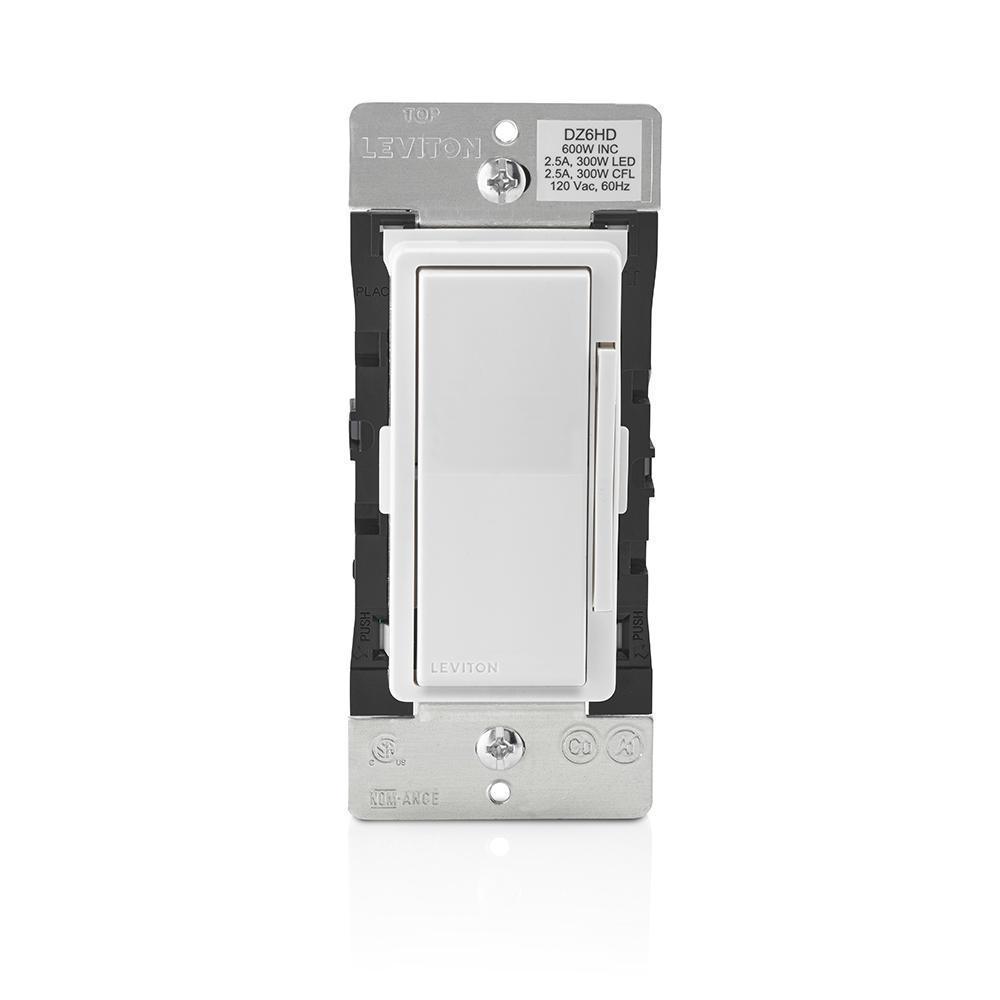

The Leviton® DZ6HD is a Z-Wave® plus enabled universal dimmer designed for residential lighting applications. It uses the latest generation of Leviton® dimming technology for smart lighting control, engineered to function with extremely sensitive, low-wattage light sources, such as a single LED bulb in a hallway or a strand of holiday lights, ensuring LED's do not glow when off. The DZ6HD is fully compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub), as well as all other certified Z-Wave® controllers, security systems, gateways, and hubs. Attach one or multiple DZ6HD devices to these controllers to provide automation and remote access. In addition to universal lighting support, the DZ6HD features two-way feedback, is scene capable, and is Z-Wave® plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates. Includes 49 different fade rates and features user presets for powering on and minimum brightness. Also features transient surge suppression built-in. Can be used in 3-way, multi-way circuit by using matching DD00R-DL remote dimmer. The UL required air gap switch disconnects power from load locally. It is concealed during normal operation and is accessible without moving the wall plate.

Leviton® Decora® Dimmer Switch, 3-Way Universal, 120 VAC, 600 W Power, 60 Hz Frequency, 1 Pole, CFL/Incandescent/LED Lamp, ON/OFF Control, Wall Mounting

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_DZ6HD_1BZ_Brochure.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_DZ6HD_1BZ_Brochure.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_DZ6HD_1RZ_Instructions.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_DZ6HD_1RZ_Instructions.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_02d99713f5d44e97d795fca90c28764682080a1d16b03efb1fc99edd6be8517a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_02d99713f5d44e97d795fca90c28764682080a1d16b03efb1fc99edd6be8517a.pdf

• Works with Amazon, Alexa for voice control
• Multi-location achieved using up to 4 remote units, DD00R-DL
• Hot, neutral, load and ground required for installation and traveler for multi-switch applications optional
