Pass & Seymour® TR15

Share Print

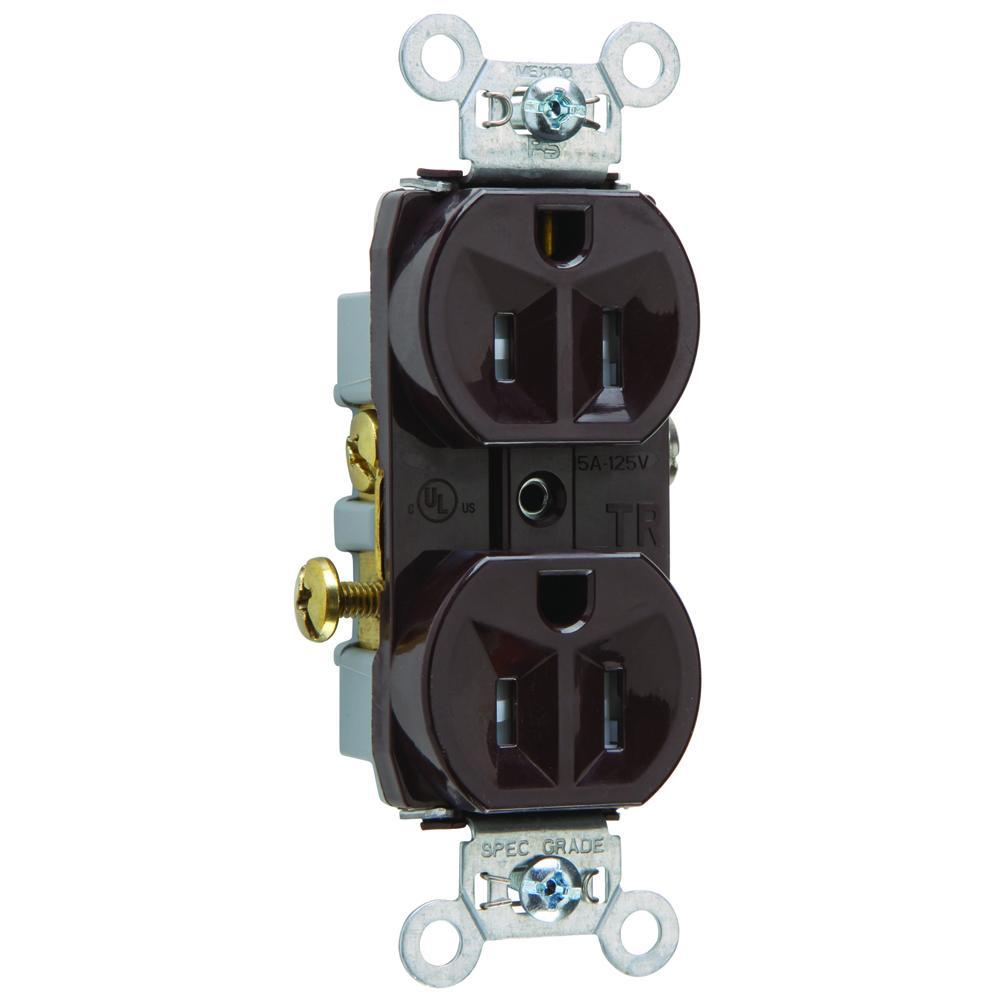

Pass & Seymour® TR15 Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

  • MPN: TR15

  • IESPN: 194775

  • UPC: 785007241600

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® TR15

Pass & Seymour® Straight Blade Receptacle, Duplex Tamper-Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, NEMA WD-1/WD-6 Enclosure, -40 to 50 deg C, Side Wire Terminal, Nylon/Thermoplastic, Brown, 1.322 in L x 1.13 in W x 3.281 in H Dimensions

Type      Duplex Tamper-Resistant
Voltage Rating      125 VAC
Amperage Rating      15 A
Number of Poles      2
Number of Wires      3
NEMA Rating      NEMA 5-15R
Grade      Commercial/Residential
Enclosure      NEMA WD-1/WD-6
Temperature Rating      -40 to 50 deg C
Terminal Type      Side Wire
Material      Nylon/Thermoplastic
Color      Brown
Dimensions      1.322 in L x 1.13 in W x 3.281 in H
  • Dual mechanical shutter system to help prevent insertions of foreign objects
  • Auto-ground clip assures positive ground
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
  • Backed-out tri-drive steel terminal screws
  • Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
  • Operating Temperature, Maximum continuous +50 deg C, minimum -40 deg C without impact
