Pass & Seymour® PS460P12S

Share Print

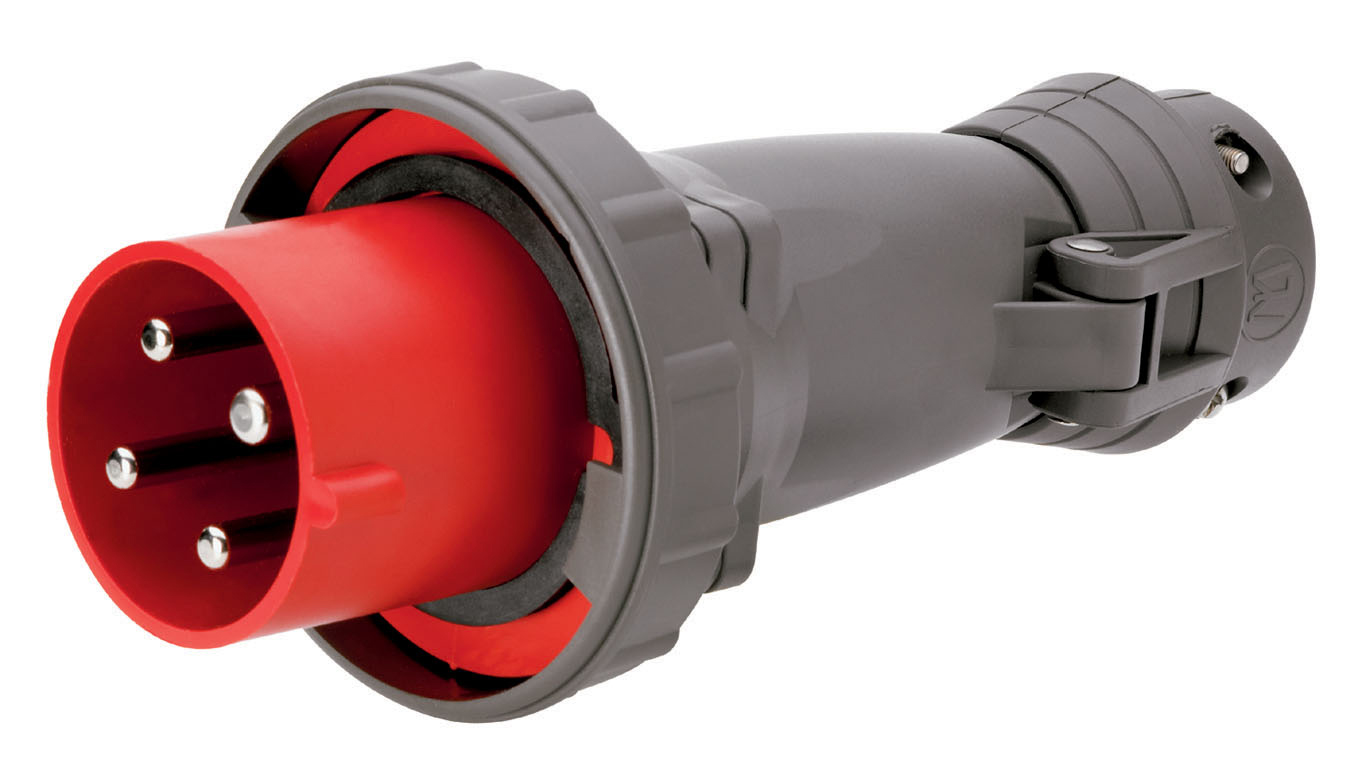

Pass & Seymour® PS460P12-S 3-Phase Splashproof Pin and Sleeve Plug, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Gray

  • MPN: PS460P12S

  • IESPN: 206379

  • UPC: 785007617511

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® PS460P12S

Pass & Seymour® Pin and Sleeve Plug, 3-Phase Splashproof, 125/250 VAC, 60 A, 60 to 400 Hz, 3 Pole, 4 Wires, Industrial Grade, IP44 Enclosure, -50 to 80 deg C, Screw Terminal, Nylon/Rubber, Gray, 14.25 x 9.37 x 7.25 in

Type      3-Phase Splashproof
Voltage Rating      125/250 VAC
Amperage Rating      60 A
Frequency Rating      60 to 400 Hz
Number of Poles      3
Number of Wires      4
Grade      Industrial
Enclosure      IP44
Temperature Rating      -50 to 80 deg C
Terminal Type      Screw
Material      Nylon/Rubber
Color      Gray
Dimensions      14.25 x 9.37 x 7.25 in
  • Legrand Pin and Sleeve products provide installation ease, enduring performance in harsh conditions
  • Arrives ready to wire, with cord grip open and cable-ready
  • Front and back body require no disassembly prior to assembly
  • Nylon construction for highimpact and corrosion resistance
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated
  • Natural-rubber grommets provide watertight protection at cable entry
  • Combination-head screws for added convenience and quick installation
