The new FlameStopper thru-wall/floor Fittings from Wiremold®/ Legrand® have been redesigned to provide fire stopping solutions for both new and retrofit applications. Flamestopper thru-wall/floor Fittings provide installers with a variety of UL Classified ready-to-use options for transitioning cables through firewalls and floors to ensure that the integrity of the fire rating is maintained. These fittings have been tested by Underwriters Laboratories Inc. to ASTM E814 UL1479, Fire Tests of Through-Penetration Fire stops. The FlameStopper thru-wall/floor Fittings offer a passive fire and life safety system with ratings up to four hours (with or without cables installed) to complement existing sprinkler systems and up to three hours for through floor applications.

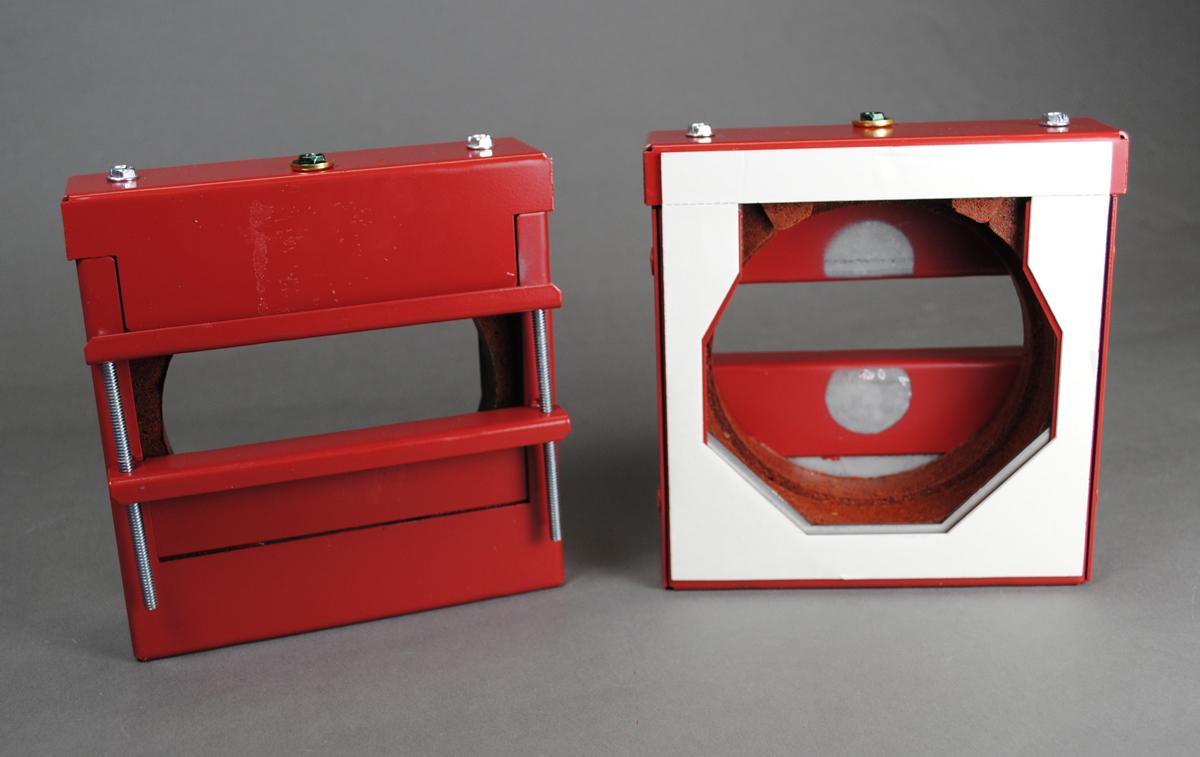

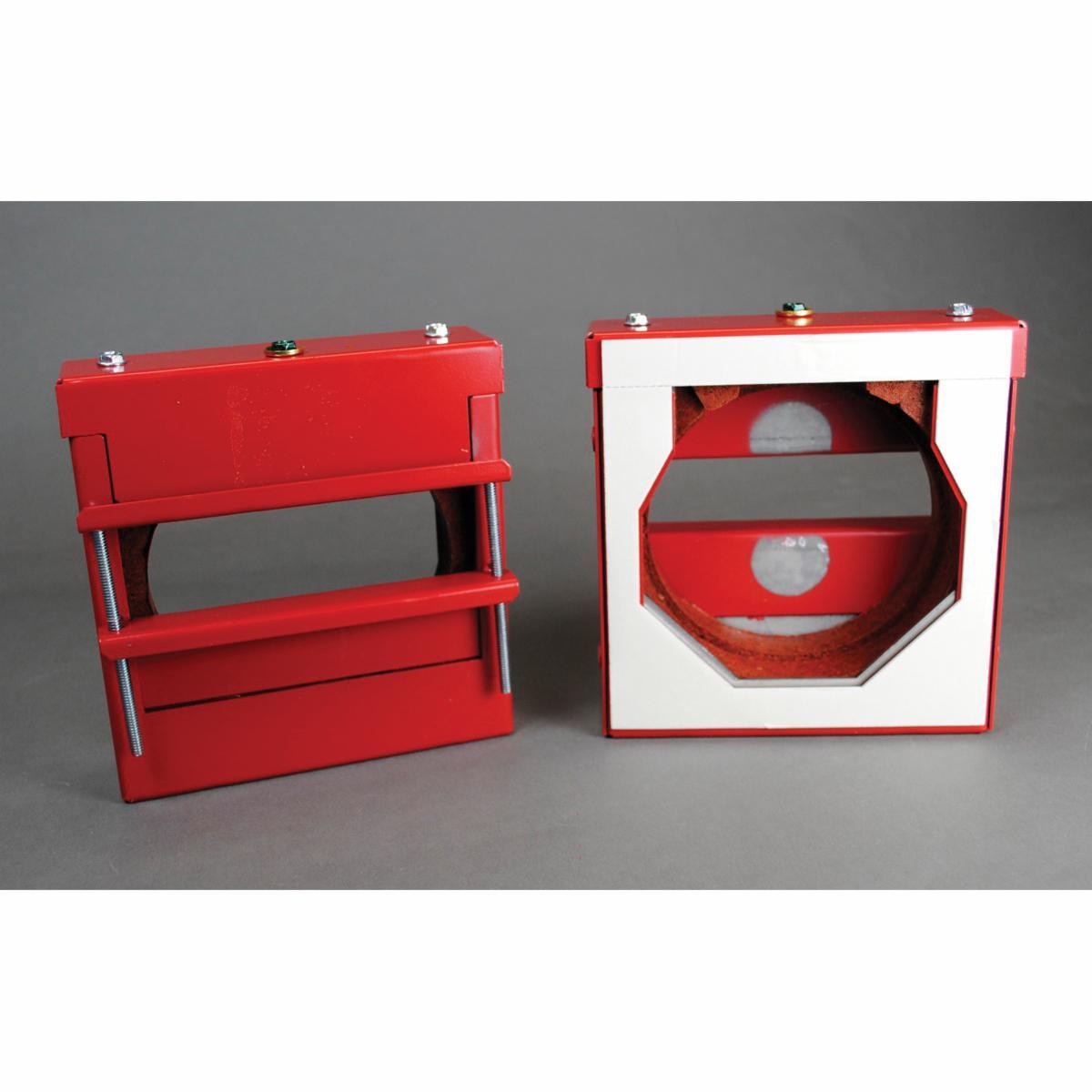

Wiremold® Through-Wall Conduit Fitting, Poke Through, Series: FlameStopper, Through Floor/Wall Mount, Steel, Red, 6 in L x 1-3/4 in W x 6-1/4 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_919b0c85ec22de9cf909cc82b187df305f4d4e5b016ffad1b4cc9e3afa512c8d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_919b0c85ec22de9cf909cc82b187df305f4d4e5b016ffad1b4cc9e3afa512c8d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d4e7b09e0841073bc0180c400269fa0a8ef2f0cb07918aefb99189226af1470f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d4e7b09e0841073bc0180c400269fa0a8ef2f0cb07918aefb99189226af1470f.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2064c8dcdd20da510874fb7e94305d9ebfff2aa69927063c5f1c17ea169ab6a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2064c8dcdd20da510874fb7e94305d9ebfff2aa69927063c5f1c17ea169ab6a.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf

• Built-in fire stopping expands with exposure to heat
• Through floor/wall mounting
• 4 in CRFB size
• For transitioning cable through fire rated walls/floors for both new and retrofit applications
• Engineered for rapid expansion when exposed to fire or high temperatures to quickly seal the pathway and prevent the passage of flames and smoke
