Milbank® U5898-O-200

Share Print

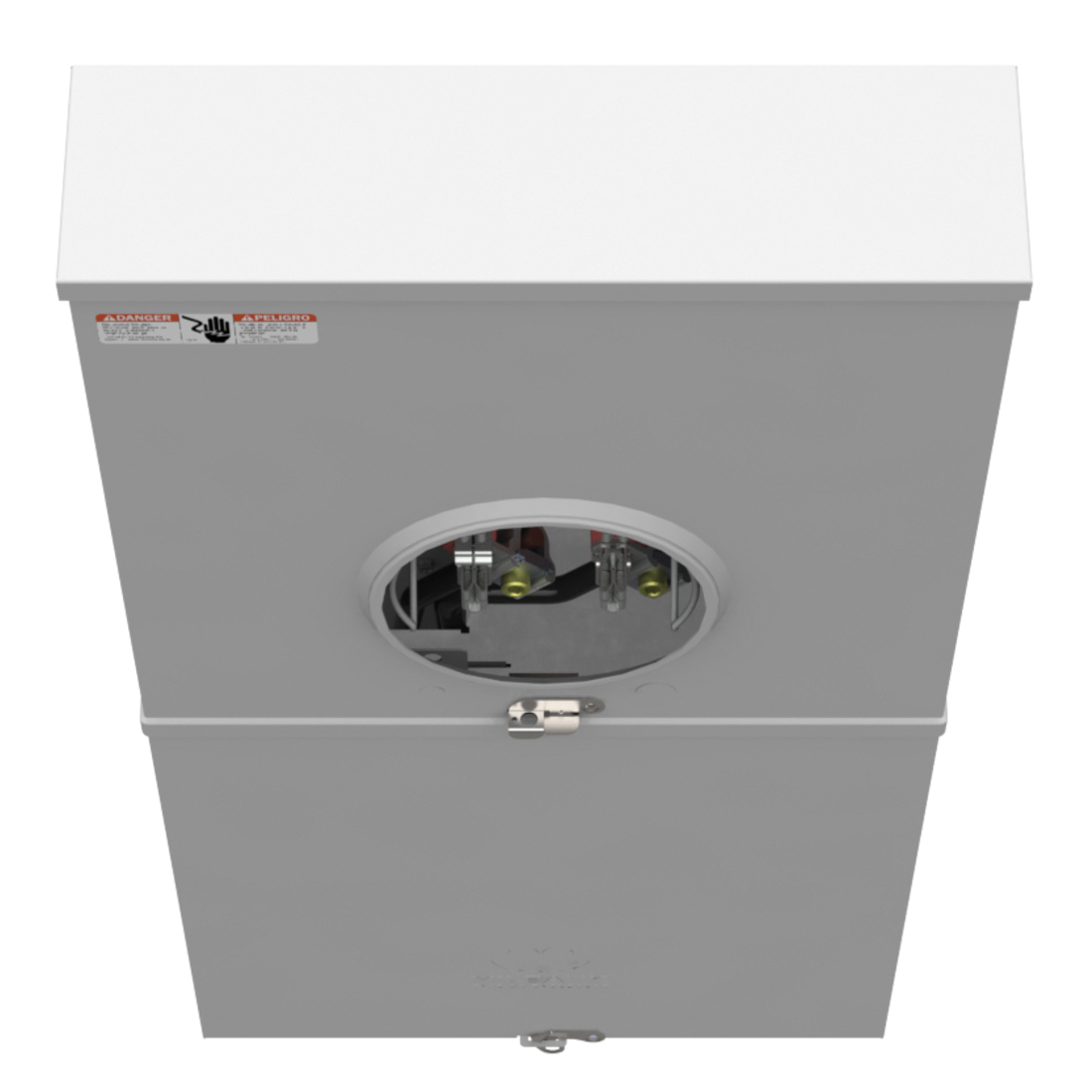

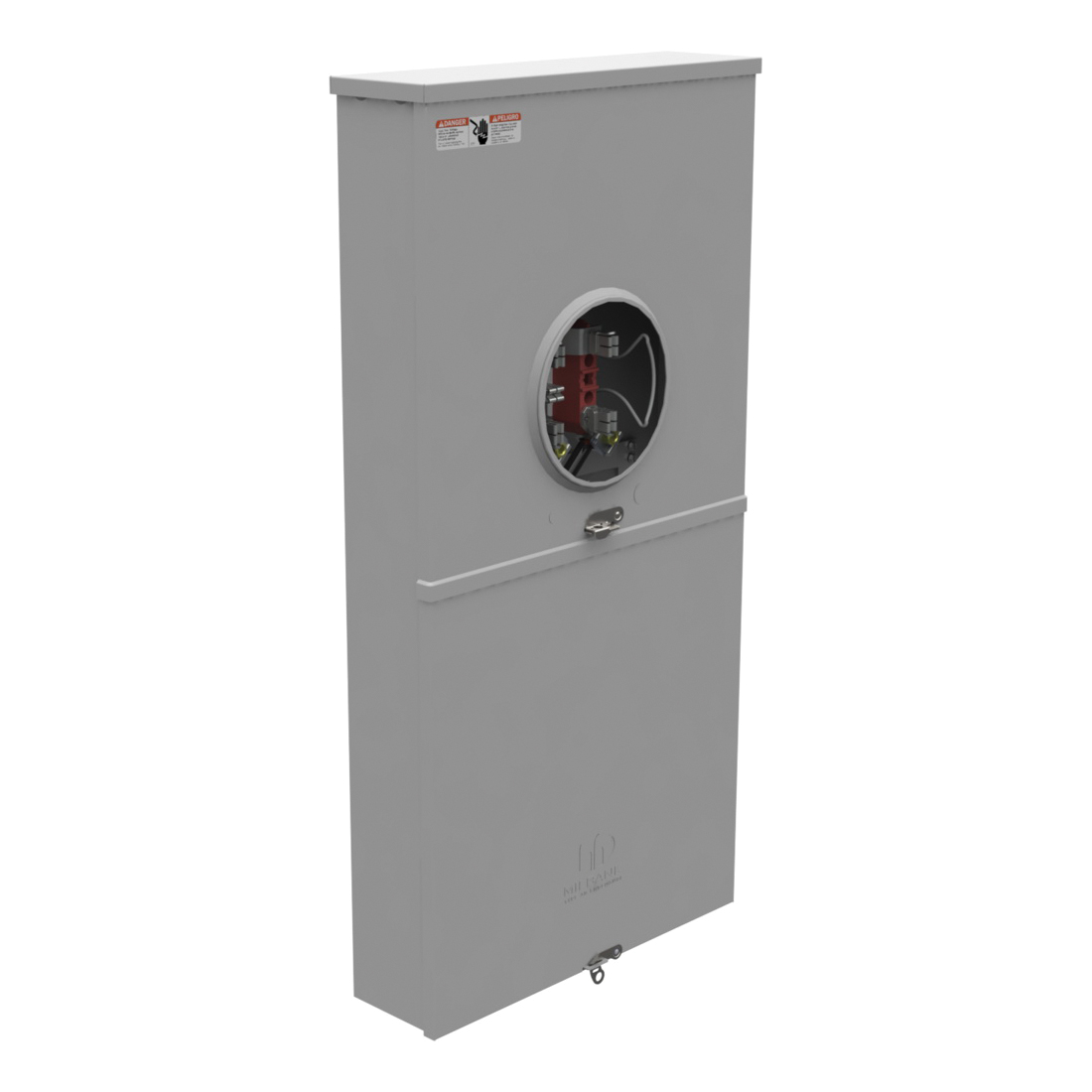

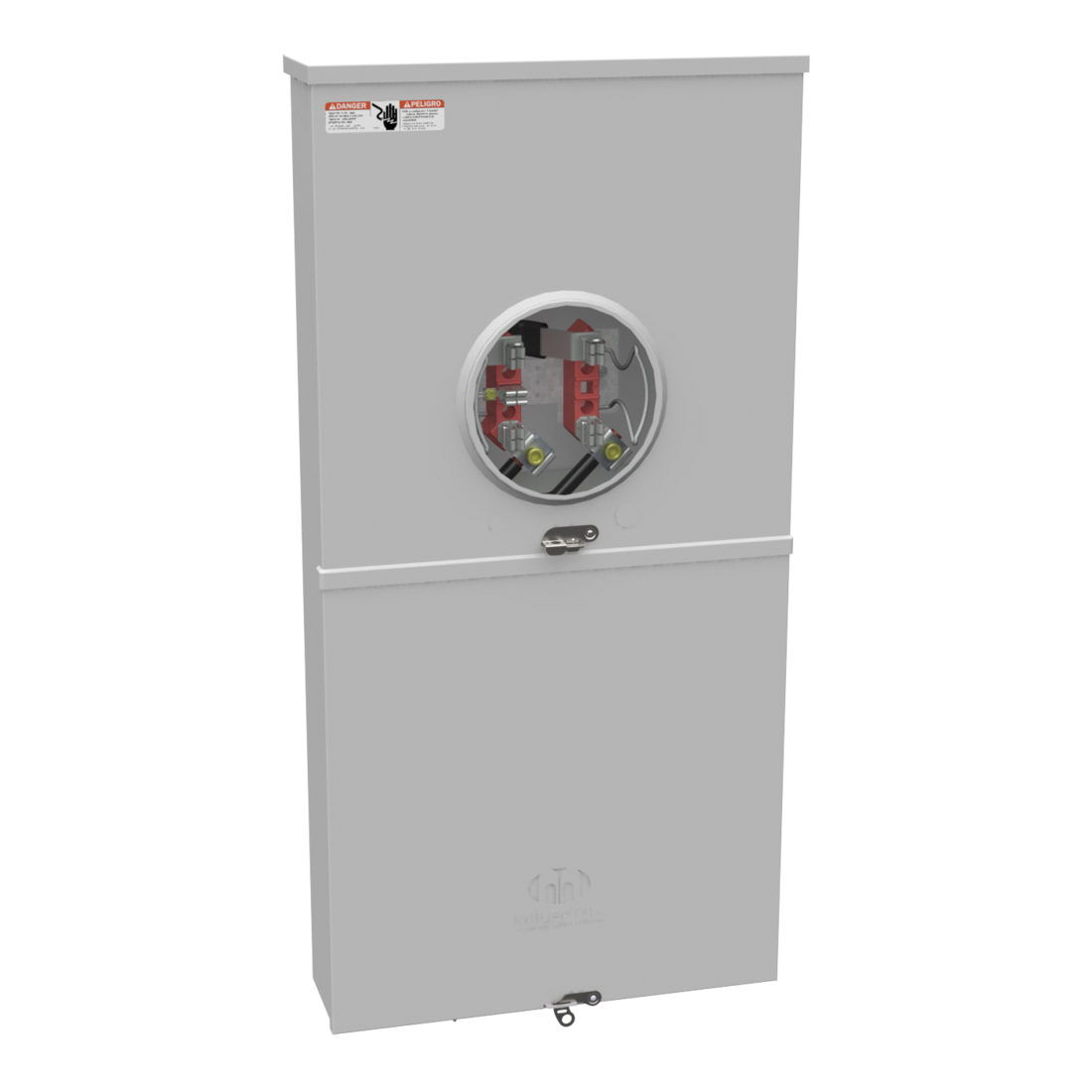

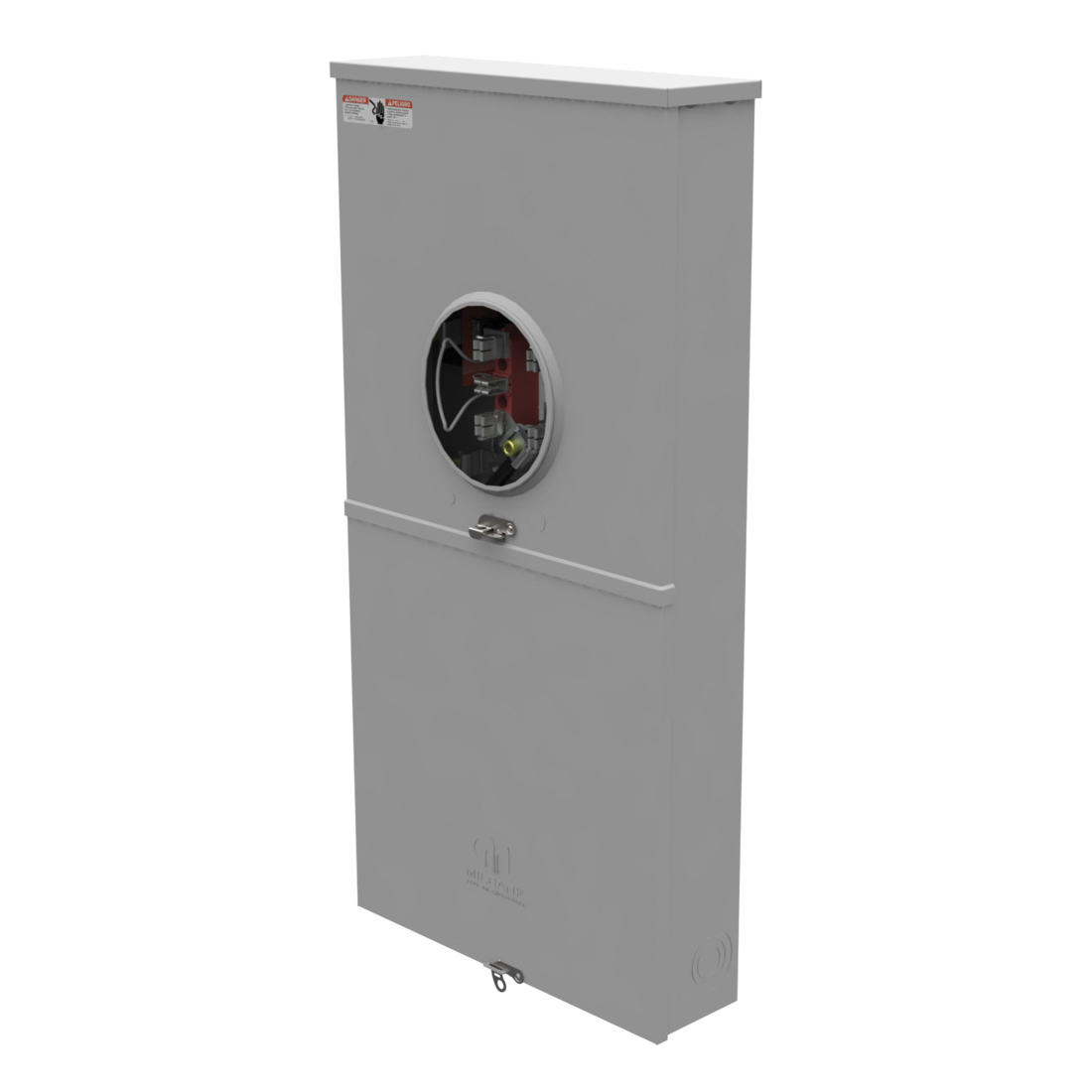

Milbank® U5898-O-200 1-Position 3-Wire Ringless Meter Socket With Main and Load Center, Up to 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

  • MPN: U5898-O-200

  • IESPN: 169592

  • UPC: 784572518476

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Milbank® U5898-O-200

Milbank® Ringless Meter Socket, 1-Position 3-Wire, Up to 240 VAC, 200 A, 1 ph, 60 Hz Frequency, Underground with Side Wireway Feed, 4 Jaws, 6 AWG to 350 kcmil Line/Load Side Wire, Plain Top Hub, Lay-In Terminal, Glass Polyester Insulation, Surface Mounting, NEMA 3R Enclosure, 4-1/2 in L x 17 in W x 34-1/2 in H Dimensions

Type      1-Position 3-Wire
Voltage Rating      Up to 240 VAC
Amperage Rating      200 A
Phase      1
Frequency Rating      60 Hz
Feed Type      Underground with Side Wireway
Number of Jaws      4
Wire Size      6 AWG to 350 kcmil Line/Load Side
Hub Type      Plain Top
Terminal Type      Lay-In
Insulation      Glass Polyester
Mounting Type      Surface
Enclosure Type      NEMA 3R
Dimensions      4-1/2 in L x 17 in W x 34-1/2 in H
