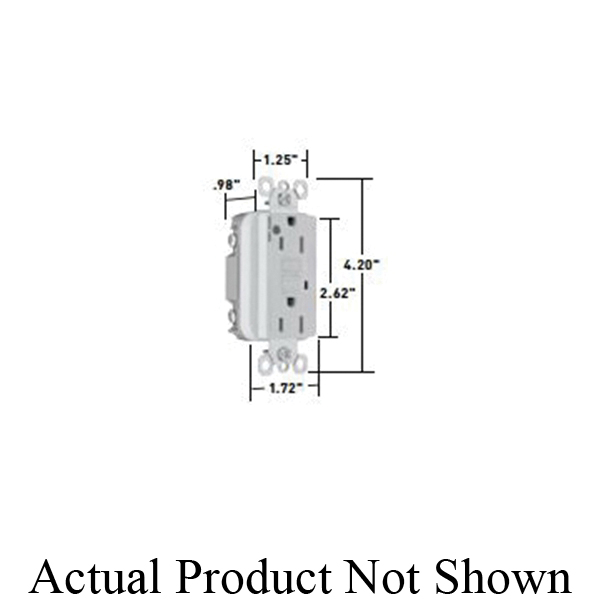

Pass & Seymour® Duplex GFCI Receptacle, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Light Almond, 4.2 in H x 1.72 in W x 0.98 in D Dimensions

• VIDEO LINK https://www.youtube.com/watch?v=wWKZUjGeZcA&feature=youtu.be

• Class A rated GFCI
• 5 +/-1 mA trio threshold, 20 A feed-thru capacity
• SafeLock protection if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected
• Trip indicator light (red LED)
• Feed-thru wiring configuration allows GFCI to protect downstream receptacles
• Prevents line-load reversal miswire no power to the face or downstream receptacles if wired incorrectly
• Exceeds UL943 voltage surge requirements, survives 100x the required UL 3 kA/6 kV voltage surge test cycles
• Side or internal screw-pressure-plate back wire with 10 to 14 AWG solid or stranded copper wire
• High-impact-resistant thermoplastic construction
• Ground screw has a back wire clamp for easy installation, two back wire holes per terminal
• 10 kA short circuit rating, 102 to 132 VAC supply voltage range
• Mounting screws are shipped captive in the device and wallplate for easier installation
• Extra-long strap, button colors match the device face, dual-direction test and reset buttons
• Withstands 1500 V minimum dielectric, 4 to 6 mA trip level
• 0.025 second nominal trip time
• 95% maximum humidity, V-2 per UL-94 flammability rating
• Nylon face and body, 0.03 in brass contacts, 0.05 in zinc plated steel mounting straps, steel no 8-32 terminal screws
• Steel hex head grounding screw, zinc plated steel flat head mounting screws, nylon test/reset buttons
