The new Pass & Seymour® self-test GFCI receptacle with SafeLock™ protection conducts an automatic test every three seconds, ensuring its always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected. The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.

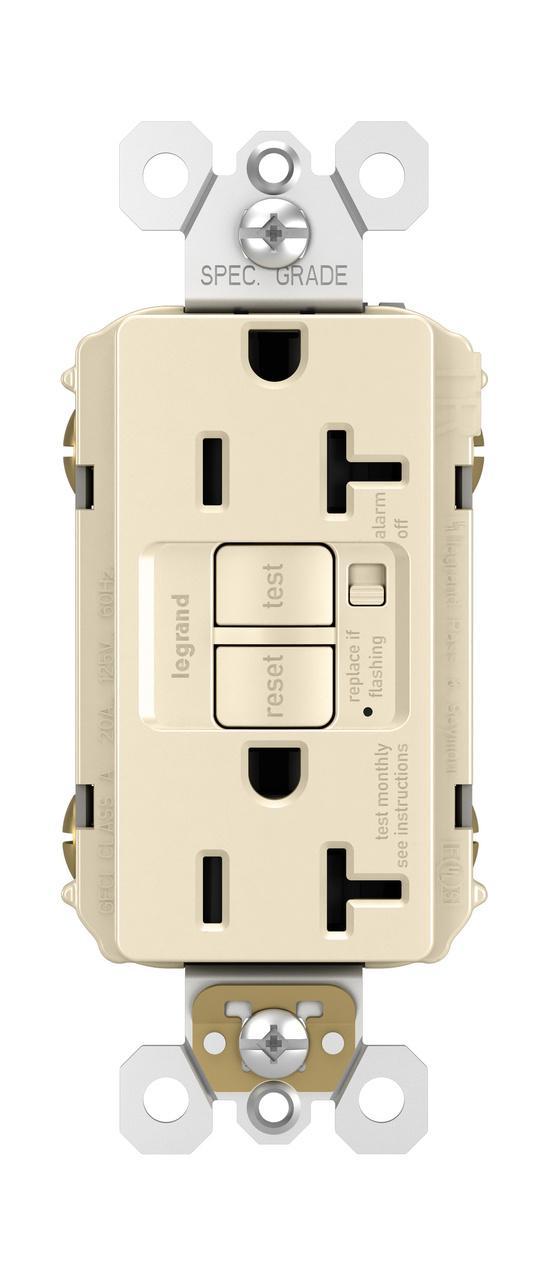

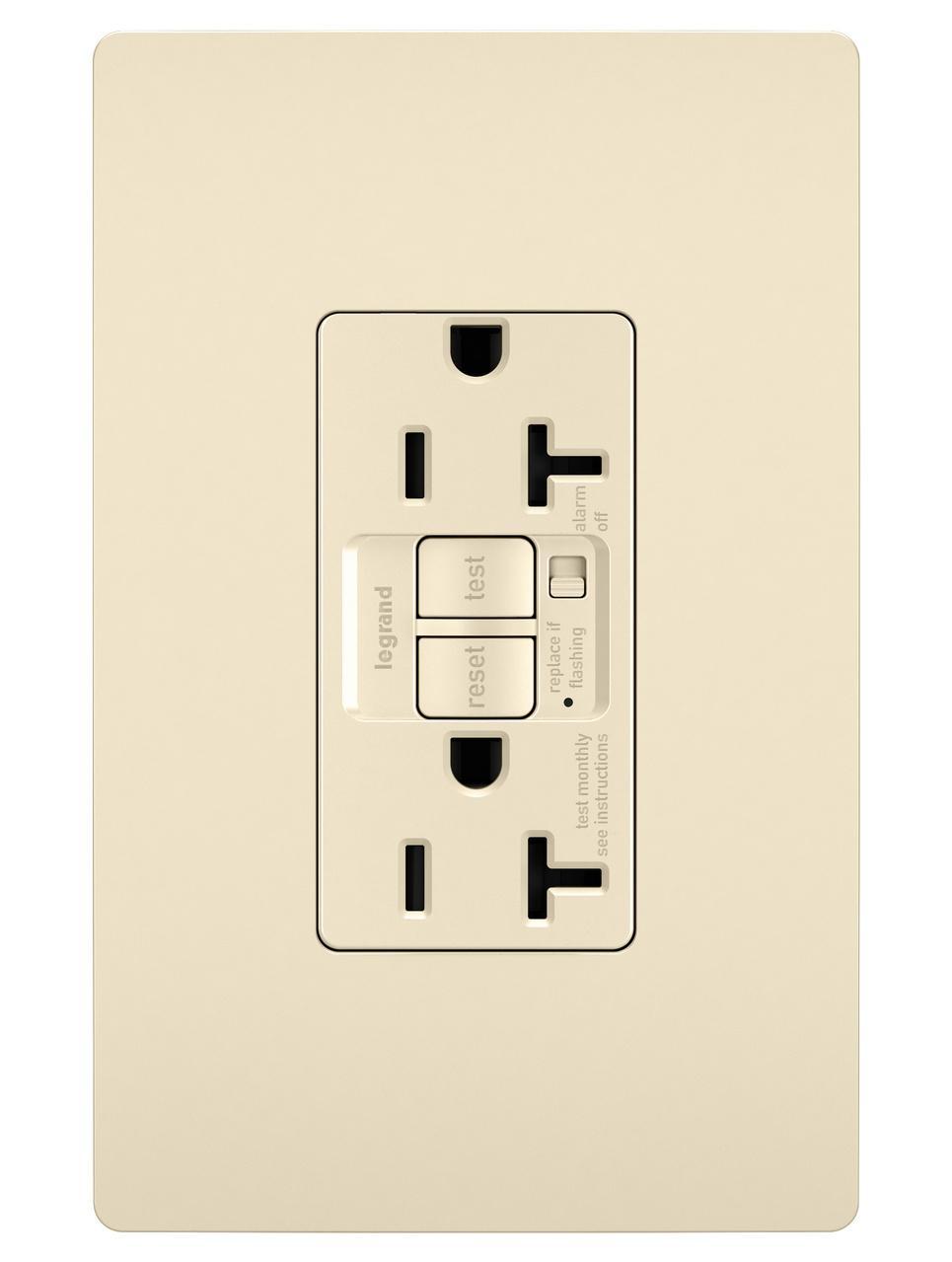

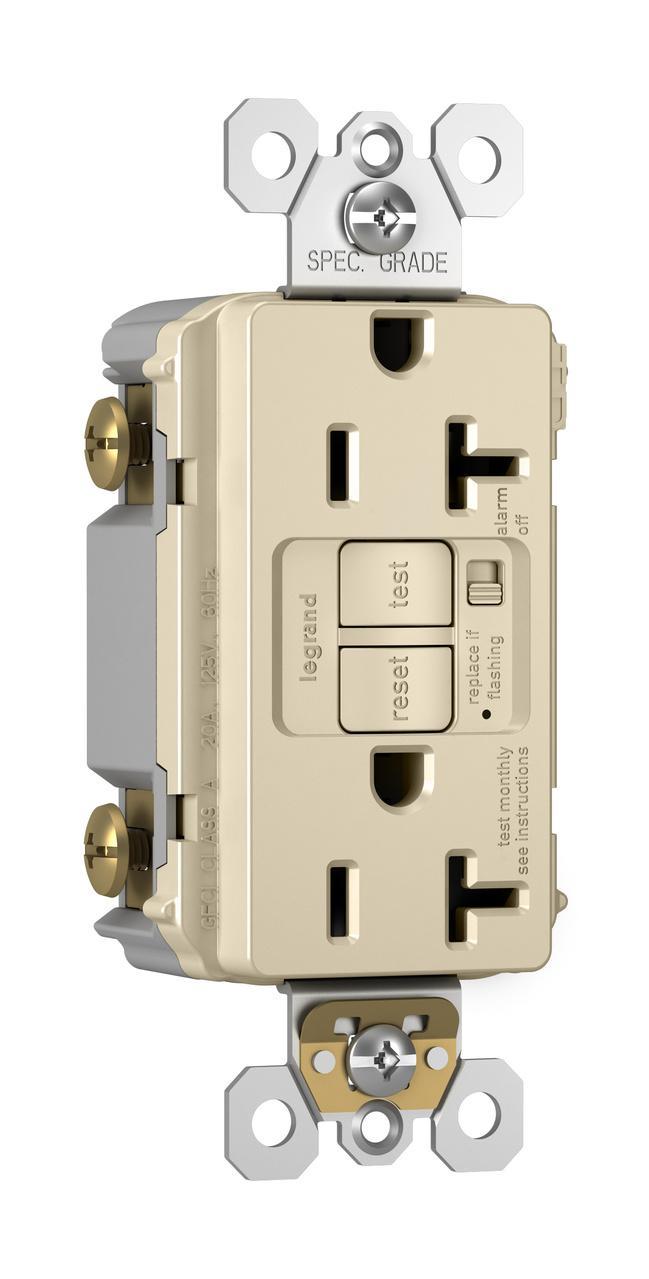

Pass & Seymour® Radiant® GFCI Receptacle, Audible Alarm Duplex Self-Test Tamper-Resistant, Series: 2097TR, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TM870STMBKCC6_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TM870STMBKCC6_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_1597SWTTRBKCCD4_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_1597SWTTRBKCCD4_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_2097BK_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_2097BK_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_2097TRALA_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_2097TRALA_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=wWKZUjGeZcA

• Alarm rated at 60 db at 10 ft
• One-piece, brass, triple-wipe power contacts for lasting retention
• Conducts an automatic test every three seconds, ensuring it's always ready to protect
• If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
• Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
• Feed-thru wiring configuration allows GFCI to protect downstream receptacles
• Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly
• Mounting screws are shipped captive in the device and wall plate for easier installation
• Dual-direction test and reset button colors match the device face
• Thinner than competitors' GFCI Receptacles - leaves more room for wires in the box
