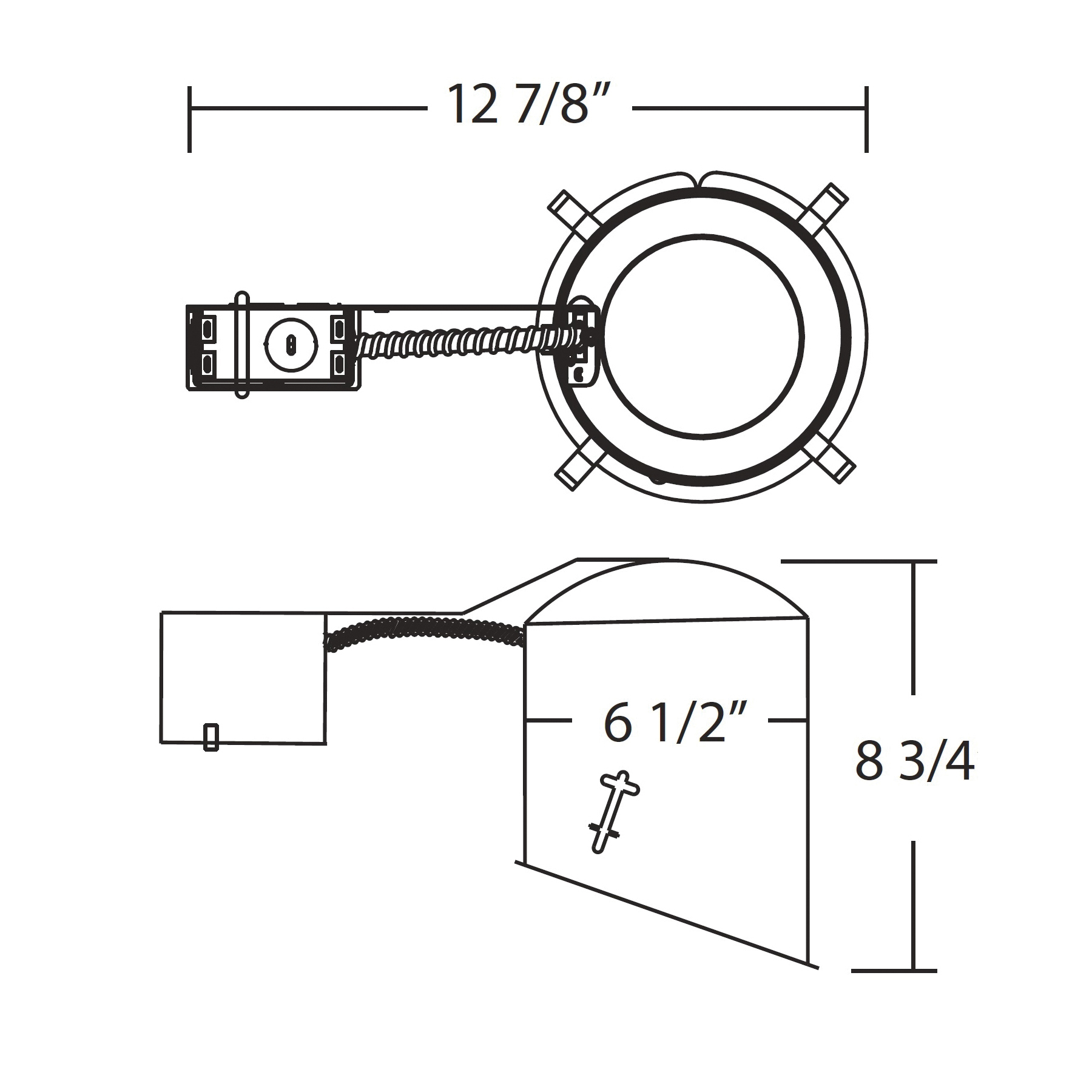

This 6 in IC rated housing is suitable for remodel in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness and its 8-3/4 in height allows it to be used in 2 x 8 in joist construction.

Nicor Recessed Housing, Remodel Sloped, 120 VAC, E26/E27 Medium BR40/PAR38 Incandescent Lamp, 150 W Lamp, 1 Lamp, IC Insulation, Ceiling Mount, 6 in Dia, 8-3/4 in Height, 12-7/8 in Width, Aluminum Housing, Neutral

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022RA_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022RA_Specification_Sheet.pdf

• Aluminum construction provides greater heat dissipation
• Designed for slope ceiling installation for ceilings with pitch between 2/12 and 6/12
• Adjustable socket bracket assures downward lamp positioning regardless of pitch angle
• IC rated, suitable for direct contact with insulation
• 8-3/4 in height allows use in 2 x 8 in joist construction
• Integral thermal protector guards against improper lamping and misuse of insulation materials
• Supplied with three push-in wire connectors
• Washington State Energy Code approved to meet restricted airflow requirements
• Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
• Listed for through branch circuit wiring and includes several 3/4 in knockouts
• UL listed for direct contact with insulation
