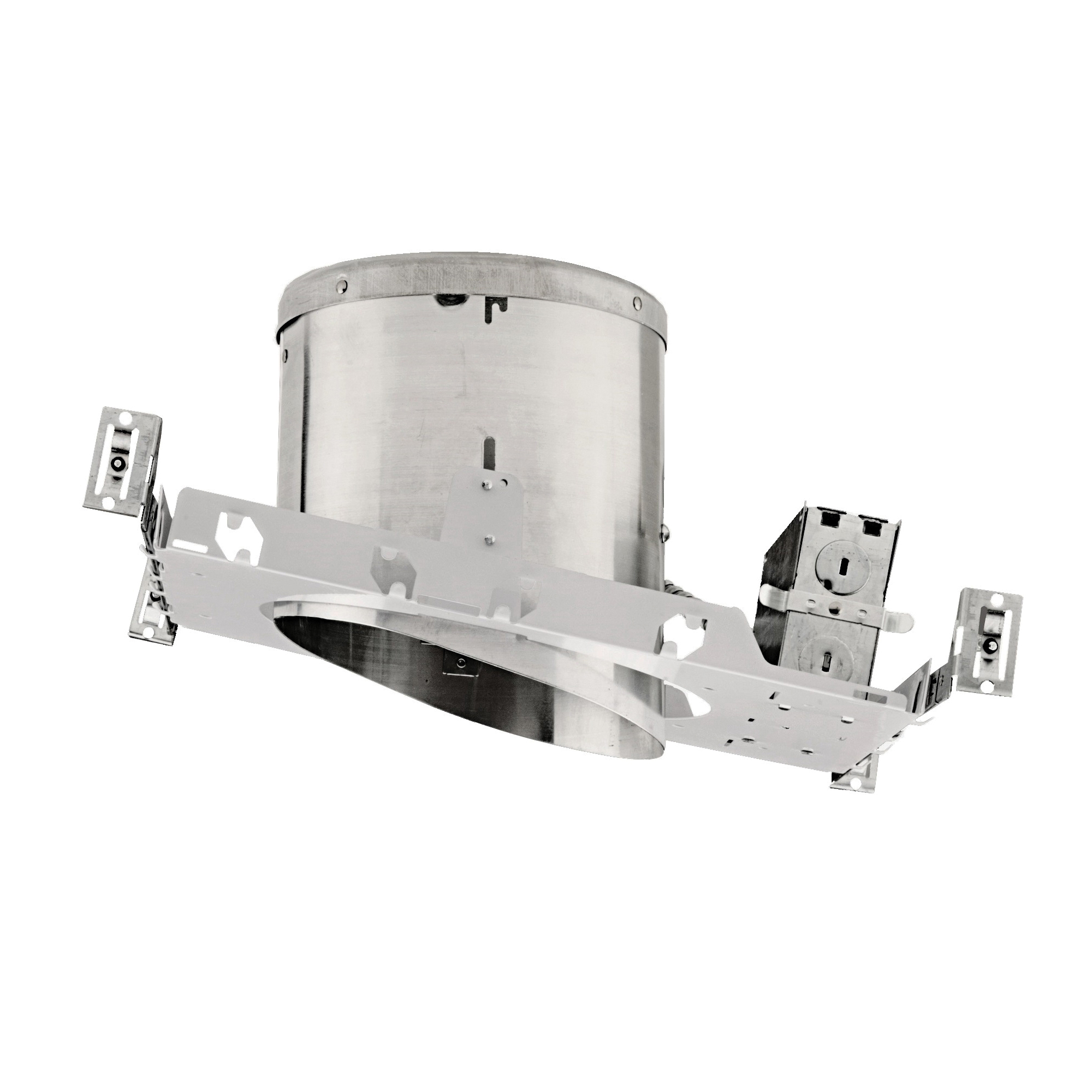

This 6 in IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness and its 7-1/2 in height allows it to be used in 2 x 8 in joist construction.

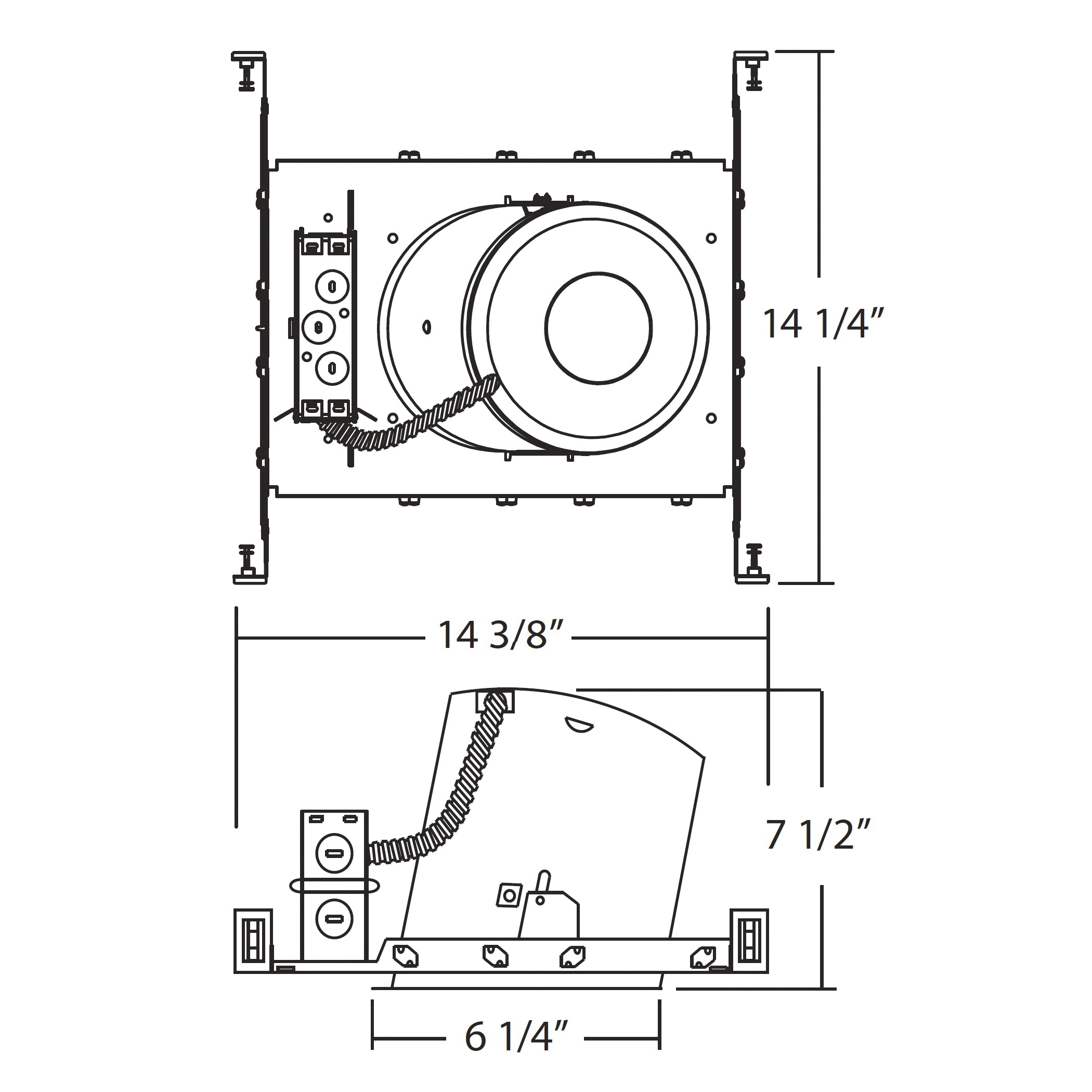

Nicor Recessed Housing, Sloped, 120 VAC, 6-1/2 in Ceiling Opening, E26/E27 Medium BR40/PAR38 Incandescent Lamp, 150 W Lamp, 1 Lamp, IC Insulation, Ceiling Mount, 6 in Dia, 7-1/2 in Height, 14-3/8 in Width, 14-1/4 in Depth, Aluminum Housing, Neutral

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_17022A_Specification_Sheet.pdf

• Aluminum construction provides greater heat dissipation
• Designed for slope ceiling installation for ceilings with pitch between 2/12 and 6/12
• IC rated, suitable for direct contact with insulation
• Adjustable socket bracket assures downward lamp positioning regardless of pitch angle
• 7-1/2 in height allows use in 2 x 8 in joist construction
• Housing is secured to plaster frame with screws and can be removed for access to junction box
• Housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness
• Integral thermal protector guards against improper lamping and misuse of insulation materials
• Supplied with three push-in wire connectors
• Four pry-outs with integral strain relief simplify Romex installation
• Unique hanger bar lip design helps align can to joist
• Four double headed captive nails provide for ease of installation
• Bars can be repositioned 90 deg on plaster frame without tools
• Bars fit onto T-bar spine for quick alignment and can be permanently secured
• Score lines allow bars to be shortened without tools to accommodate a 12 in joist span
• Heavy gauge Nicor captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24 in joist span, then locked in place with set screws
• Washington State Energy Code approved to meet restricted airflow requirements
• Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
• Listed for through branch circuit wiring and includes several 3/4 in knockouts
