Suitable for new construction in residential and commercial applications. Non-IC. Insulation must be kept a minimum of 3 in from housing.

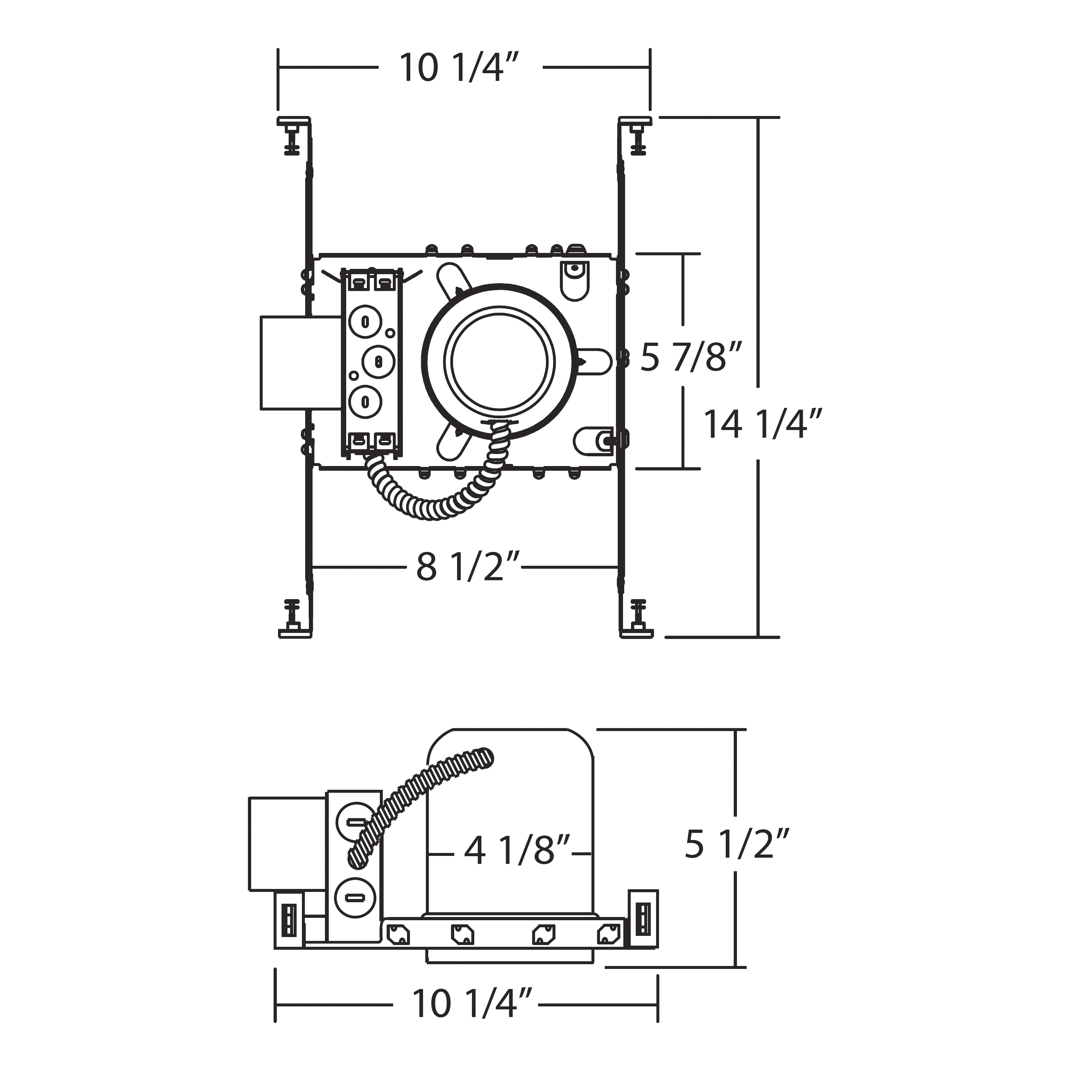

Nicor Recessed Housing, New Construction Low Voltage, 12 VAC, 4-3/8 in Ceiling Opening, MR16 GU5.3 Halogen Lamp, 50 W Lamp, 1 Lamp, Non-IC Insulation, Ceiling Mount, 4 in Dia, 5-1/2 in Height, 14-1/4 in Width, 10-1/4 in Depth, Aluminum Housing, Neutral

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14000A_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14000A_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14000A_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_14000A_Specification_Sheet.pdf

• 5-1/2 in height allows use in 2 x 6 in joist construction
• Housing is secured to plaster frame with screws and can be removed for access to junction box
• Housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness
• Transformer includes integral thermal protector guards against improper lamping and misuse of insulation materials
• Use low voltage 20 to 50 W MR-16 or JC type lamps (12 V) (not included)
• Class H 50 W transformer, step down from 120 to 12 V
• Use dimmers specifically designed for low voltage magnetic transformers
• Supplied with three push-in wire connectors
• Four pry-outs with integral strain relief simplify Romex installation
• Unique hanger bar lip design helps align can to joist
• Four double headed captive nails provide for ease of installation
• Bars can be repositioned 90 deg on plaster frame without tools
• Bars fit onto T-bar spine for quick alignment and can be permanently secured
• Score lines allow bars to be shortened without tools to accommodate a 12 in joist span
• Heavy gauge Nicor captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24 in joist span, then locked in place with set screws
• Washington State Energy Code approved to meet restricted airflow requirements
• Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
• Listed for through branch circuit wiring and includes several 3/4 in knockouts
