This 3 in non-IC rated remodel housing is suitable for remodel or new construction in residential and commercial applications and requires 3 in spacing from insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. The 4-1/2 in H housing allows it to be used in 2 x 6 in joist construction. Suitable for new construction in residential and commercial applications. Non-IC. Insulation must be kept a minimum of 3 in from housing.

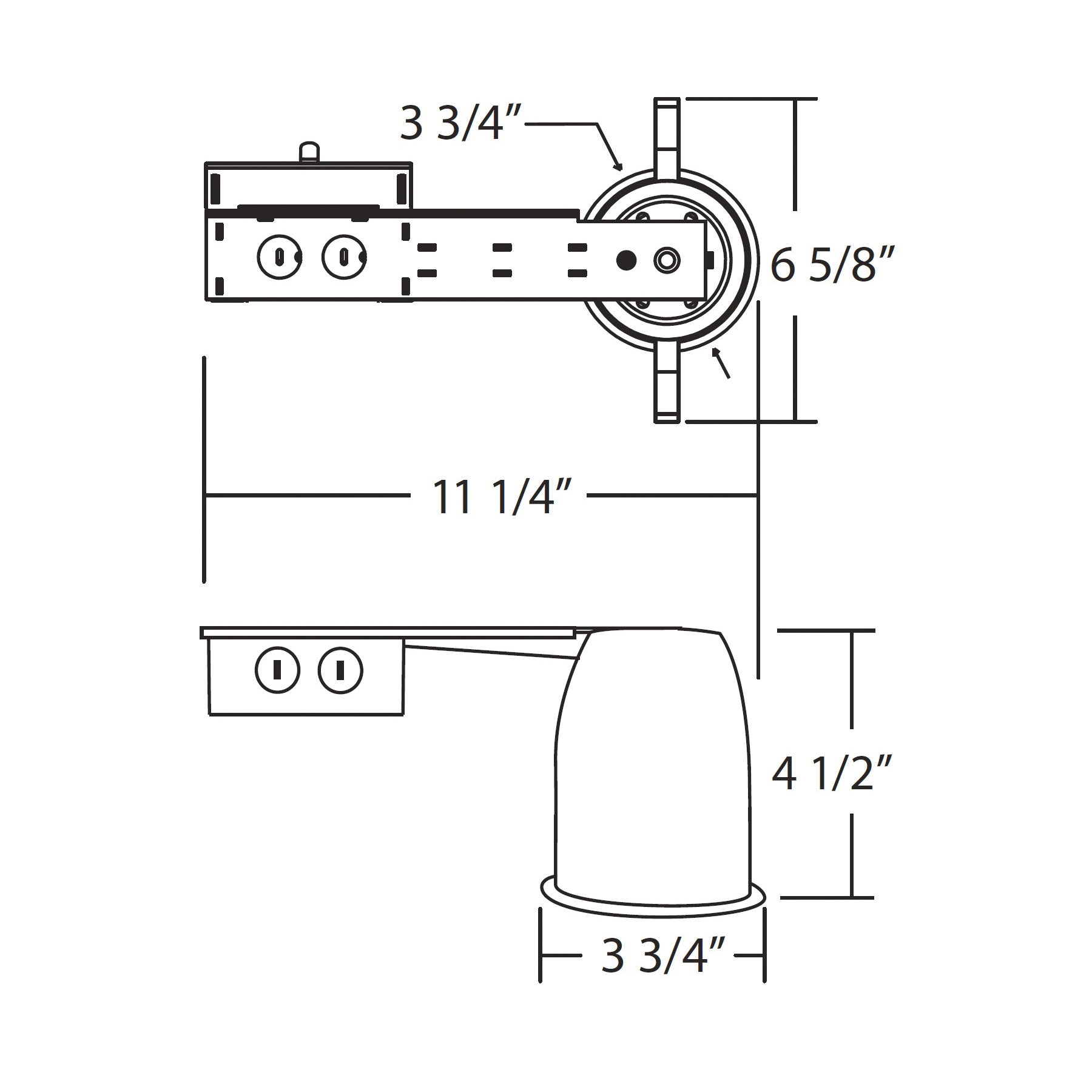

Nicor Recessed Housing, Line Voltage Remodel, 120 VAC, 4 in Ceiling Opening, JC Type/MR16 GU5.3 Halogen Lamp, 50 W Lamp, 1 Lamp, Non-IC Insulation, Ceiling Mount, 3 in Dia, 4-1/2 in Height, 11-1/4 in Width, 6-5/8 in Depth, Aluminum Housing, Neutral

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_13100R_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_13100R_Specification_Sheet.pdf

• Transformer includes integral thermal protector guards against improper lamping and misuse of insulation materials
• Uses 120 V MR-16 lamp (not included) with a GU10 base
• 4-1/2 in height allows use in 2 x 6 in joist construction
• Listed for through branch circuit wiring and includes several 3/4 in knockouts
• Supplied with three IDEAL® push-in wire connectors
