Radiant® dual function AFCI/GFCI receptacles are the latest innovation in electrical safety and a code approved alternative to dual function AFCI/GFCI breakers. Designed to protect against electrical fires caused by arc faults and injury due to electrical shock, these new devices are compliant with NEC® AFCI and GFCI requirements in kitchens and laundry areas for new construction, circuit modifications/extensions and replacement receptacles. Like GFCI receptacles, AFCI/GFCI receptacles are installed in the living space so homeowners can see the indicator light and perform TEST and RESET locally. The Radiant® AFCI/GFCI receptacle has separate indicator lights for AFCI and GFCI, making it easy to distinguish between a trip caused by an arc fault and a trip caused by a ground fault. This means less confusion for the homeowner and therefore fewer callbacks for the contractor. Unlike AFCI/GFCI breakers which must match the brand of the breaker box Radiant® AFCI/GFCI receptacles fit any wall box, reducing inventory. The GFCI function has a self-test feature that tests itself every three seconds instead of the industry standard 3 hr providing an unprecedented level of protection.

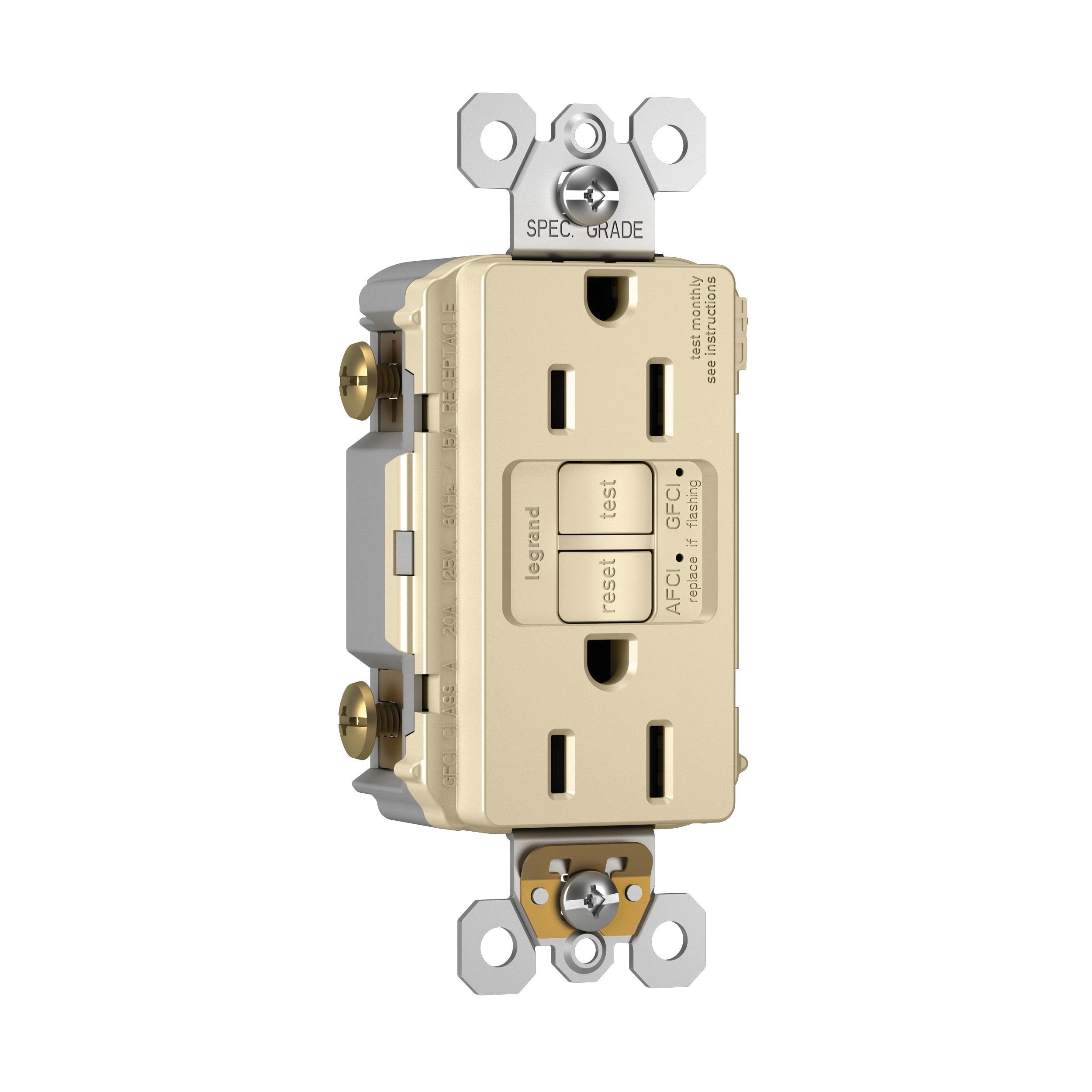

Pass & Seymour® Radiant® AFCI/GFCI Receptacle, Dual Function Self-Test Tamper-Resistant, 125 VAC, 15 A, 60 Hz Frequency, NEMA 5-15R NEMA Rating, -35 to 66 deg C, Back/Feed-Through/Side Wired Terminal, Thermoplastic, Ivory, 1.73 in W x 1.36 in D x 4.21 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_AFGF152TR_Brochure.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_AFGF152TR_Brochure.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d9b4e02e0a9a78ab8f57d8ed40d8713c27384358bc42fe5771323d8248d93cf1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d9b4e02e0a9a78ab8f57d8ed40d8713c27384358bc42fe5771323d8248d93cf1.pdf

• Part of the all new Radiant® collection, rated as a 1-1/2 hp motor control switch
• (2) back wire holes per termination add wiring flexibility, eliminate pigtailing and save box space
• High impact-resistant, thermoplastic construction for superior strength and durability
• Tamper-resistant automatic shutter system prevents young children from inserting common household objects
• Black shutters essentially "disappear" into the background for an invisible effect preferred by end users
• Ground terminal back wire for fast installation
• Patented SafeLock® protection if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected
• 2-Indicator lights, one for GFCI and one for AFCI
• Easy to distinguish between trip caused by arc fault and trip caused by ground fault
• GFCI indicator light flashes if device fails the self-test, signaling that the GFCI should be replaced
• Auto-ground clip assures a positive ground to metal box
• Prevents line load miswire no power to the face or downstream receptacles if wired incorrectly
