Designed for retrofit and new construction, Evolution™ series 8 in poke-thru devices provide convenient access to power, communications and audio/video services recessed below floor level providing maximum device protection. With 5-gangs of capacity that allow you to configure services for the needs of your space, services can be placed in any location within the unit. The low profile durable metal covers are available in six powder coated finishes, designed to match any space. The cover also features sliding doors that allow cables to neatly egress from the unit, protecting cables while reducing tripping hazards. Evolution™ series 8 in poke-thru devices are the perfect fit for meeting and training rooms, classrooms, healthcare facilities or commercial buildings with open-space architecture.

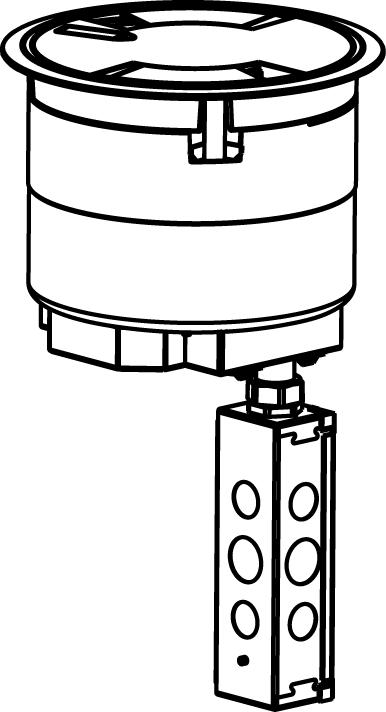

Wiremold® TopGuard™ Poke-Through Assembly, Pre-Wired Recessed, Series: Evolution™ 8AT, 8 in, 3/4 to 2 in Knockout, 5 Gangs, 24.5 cu-in, Fire-Rated Device Type, 9-1/4 in Length, 9-1/4 in Width, 16-3/4 in D, For Use With: Carpet, Tile, Wood, Terrazzo, Polished/Finished Concrete Floor, Die Cast Aluminum Cover, Plastic/Steel, Nickel, Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PNK_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PNK_RoHS.pdf
• VIDEO LINK https://www.youtube.com/watch?v=0YF0qQV6drE

• Pre-wired assembly save on labor with a completely assembled, Pre-wired poke-thru with every power receptacle already installed
• Recessed devices all power, communications and AV devices are recessed below floor level, providing maximum protection and device longevity
• Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer
• The cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
• A surface style cover is for mounting on top of the finished floor surface
• Open system for expanded compatibility - accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more
• Includes 3-gang opening designed to fit A/V devices, including wall plate style transmitters, like the Crestron DM/TX series, without any additional parts
• Plug load control up to 30 ft - tested with Pass & Seymour® wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
• Evolution™ series poke-thru devices use an intumescent material that maintains the fire rating of any floor for up to 2 hr
• The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
