Designed for retrofit and new construction, Evolution™ series 6 in recessed poke-thru devices provide convenient access to power, communications and audio/video services recessed below floor level providing maximum device protection. With 3-gangs of capacity, you will be able to configure services for the needs of your space. The low profile metal covers are available in brushed aluminum, satin brass, satin nickel andmultiple powder-coated finishes designed to match any space. Evolution™ series 6 in poke-thru devices are the perfect fit for kiosks, meeting rooms, training rooms, classrooms, healthcare facilities or commercial buildings with open-space architecture. For carpet, tile, wood and laminate concrete floor coverings.

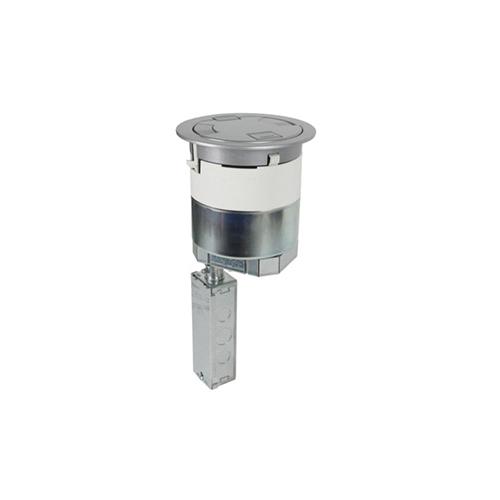

Wiremold® TopGuard™ Poke-Through Assembly, Pre-Wired Recessed, Series: Evolution™ 6AT, 6 in, 3/4 to 2 in Knockout, 3 Gangs, 24 cu-in, Fire-Rated Device Type, 7-1/4 in Length, 7-1/4 in Width, 16-3/4 in D, For Use With: Carpet, Tile, Wood, Finished Concrete Floor, Die Cast Aluminum Cover, Plastic/Steel, Gray, Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_6CT2SB_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_6CT2SB_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_22cc08fc8b2c210f4973dc05efc03fa69a6dcf31d47f97428b0c6332b0aa591d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_22cc08fc8b2c210f4973dc05efc03fa69a6dcf31d47f97428b0c6332b0aa591d.pdf
• VIDEO LINK https://www.youtube.com/watch?v=0YF0qQV6drE

• Prewired Assembly, Save on labor with a completely assembled, prewired poke-thru with every power receptacle already installed
• Recessed Devices, All power, communications and A/V devices are recessed below floor level, providing maximum protection and device longevity
• Quick and easy installation without the need for additional fasteners or a second installer
• Unique Cover Design, The cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
• Multiple Finishes, Evolution Series Poke-Thru Devices are available in multiple finishes - (BK) black, (GY) gray, (NK) nickel, (BS) brass, (BZ) bronze, (AA) brushed aluminum, (SB) satin brass and (SN) satin nickel to seamlessly match your environment
• Plug Load Control Up To 30 ft, Tested with Pass and Seymour Wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
• 3 hr fire rating, Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 3 hr, the longest of its type
• The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
