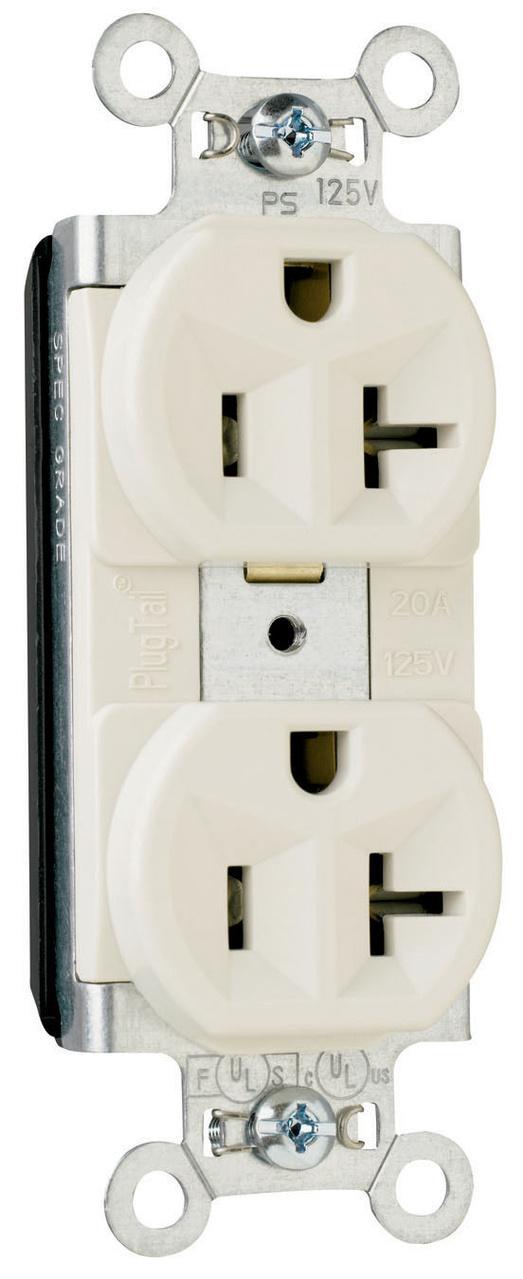

Pass & Seymour® PlugTail® Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, PlugTail Lead Terminal, Nylon/PVC, Light Almond, 1.5 in L x 0.625 in W x 3.281 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5362CDGN_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5362CDGN_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8300LA_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8300LA_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5262W_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5262W_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=_SjD8max4i0

• 0.036 in thick, brass, triple-wipe power contacts for lasting retention
• Plated steel wrap strap design for maximum durability and corrosion resistance
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
• Crimped and welded contacts
• Auto-ground clip assures positive ground
• Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
• Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
• PlugTail Connector - 12 AWG, THHN, copper conductor, 6 in leads, stripped, solid or stranded, for use with PlugTail Receptacles only
