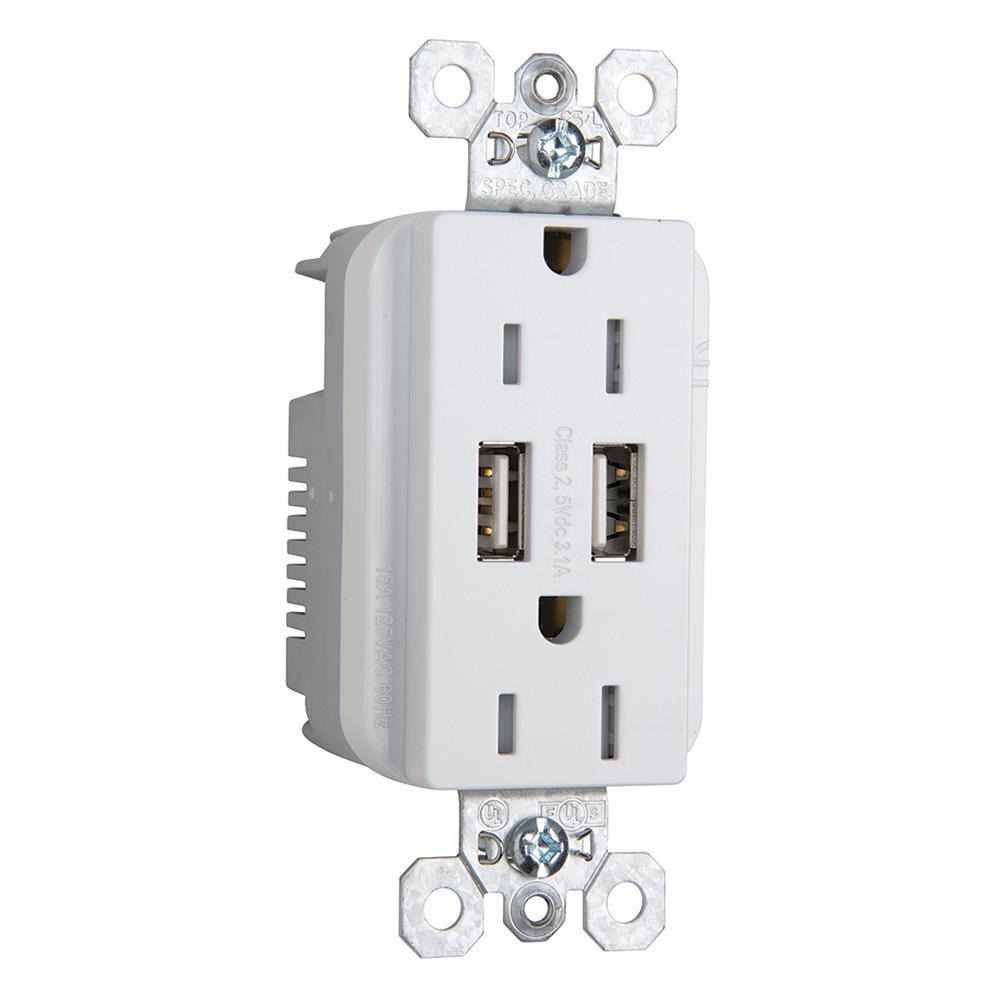

Pass & Seymour® fed spec tamper-resistant single receptacles with USB charging capabilities are designed with strength and durability in mind. They were designed for the commercial market and are capable of withstanding heavy use due to their federal specification certification. This product features an overall 2.1 A USB charging capability, auto-ground clip, zinc plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy.

Pass & Seymour® Combination Receptacle, Decorator Duplex Tamper-Resistant, Series: TR Series, 15 A, 125 VAC Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 10 AWG Wire, 2.0/3.0 USB, 2 USB Quantity, 3.1 A at 5 VDC USB, 1.693 in W x 1.392 in D x 3.281 in H Size, Back/Side Wired Connection, Flush/Surface/Threaded Mounting, Federal Specification Grade, Wiring Method: Back/Side Wired, Nylon/Thermoplastic, White, Environmental Conditions: -40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR5262USBLA_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR5262USBLA_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR5262USBNI_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TR5262USBNI_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PTTR15HACUSBW_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PTTR15HACUSBW_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_26352CH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_26352CH_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PTTR15HACUSBW_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PTTR15HACUSBW_Technical_Bulletin.pdf

• Overall 3.1A USB charging capability, Combination AC duplex receptacles include two 5 V DC USB ports that work with USB 2.0 and 3.0 compatible devices
• AC receptacles are tamper-resistant as standard - patented shutter system prevents improper insertion of foreign objects
• Multiple color options available
• Back and side wire terminals accommodate 14 AWG - 10 AWG stranded and solid copper wire
• Stainless steel auto-ground clips assure positive ground
