For tile, wood and laminate concrete floor coverings. For use in 6 in dia opening. Devices are recessed 3-1/4 in below floor surface. Die-cast aluminum cover is available in the following powder coated finishes: (BK) black, (GY) gray, (NK) nickel, (BS) brass, and (BZ) bronze. INCLUDED: For Side Compartments: No Device Plates are provided. For Centre Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5PTHA 1/2-Gang Pass-Through Housing Assembly, One (1) 1PTHA 1-Gang Pass-Through Housing Assembly, One (1) 575CHA 1/2-Gang 3/4 in Conduit Housing Assembly (also includes junction box attached to the 3/4 in conduit). NOTE: UL Fire Classified for up to 2-hour rated floors. Includes one (1) 6TS Tile Shim. Brass.

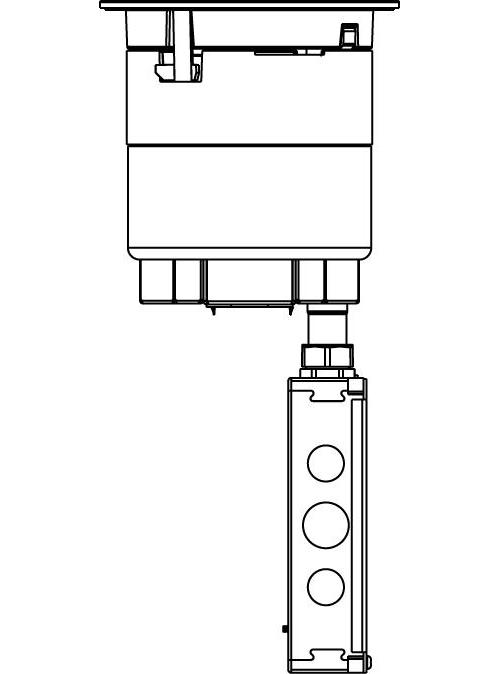

Wiremold® Multi-Service Poke-Through Device, Un-Wired Assembled, Series: Evolution™, 6 in Hole, Fire-Rated Device, 16-3/4 in Length, Die-Cast Aluminum Cover, Brass

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e8732b66d28c5ae8b6e480c127ba39c6857e82e6bc9b800fcc7817160a2359f0.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e8732b66d28c5ae8b6e480c127ba39c6857e82e6bc9b800fcc7817160a2359f0.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d4e7b09e0841073bc0180c400269fa0a8ef2f0cb07918aefb99189226af1470f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d4e7b09e0841073bc0180c400269fa0a8ef2f0cb07918aefb99189226af1470f.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf

• Through floor mounting
• All power, communication and audio/video devices are recessed below floor level, providing maximum protection and device longevity
• Open system design provides maximum flexibility for power and communication device configurations
• The 6AT series accepts a wide variety of industry standard power, communication or audio/video devices from most manufacturers
• The Evolution™ series poke-thru design includes all metal die cast aluminum cover assemblies, with two unique spring-loaded slide egress doors
• Added furniture-feed capacity
• The 6ATCFF series poke-thru device offers the largest dual service furniture-feed capability on the market
• Wide trim flange is designed to meet the ADA accessibility guidelines as it pertains to ADA standard 4.5 which addresses changes in floor and ground surface levels
• The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
• Suitable for use in air handling spaces-in accordance with s 300-22(C) of the national electrical code
• Auto-close egress doors
• Egress doors lock in position when slid open and automatically close around cables, reducing the egress opening to the smallest size possible
• Improved hinge design
• Provides greater durability while creating a more fluid, intuitive, opening and closing motion
• Designed for a 6 in core hole and provides up to two and one-half gangs of power, communication or A/V capability
• UL fire rated for up to 2-hour rated floors maintains the fire classification of the floor
