861 series floor boxes bring power or communication services directly to the point-of-use for open space applications. 861 series floor boxes have been designed for use in both raised and wood-constructed floors and are available with a variety of cover options. These boxes will accept Wiremold® flush-style poke-thru cover assemblies which are available in dedicated power, communication or pass-through versions, They will also accept 895 and 896 series Single Service Covers that are available in brass, brushed aluminum and Non-metallic materials.861 series floor boxes are an ideal solution for bringing power or communication to board rooms, commercial offices or upscale residences. And all 861 series floor boxes include TopGuard™ protection, an industry-leading design that not only meets but exceeds UL scrub water exclusion requirements for tile, wood and carpeted floors.

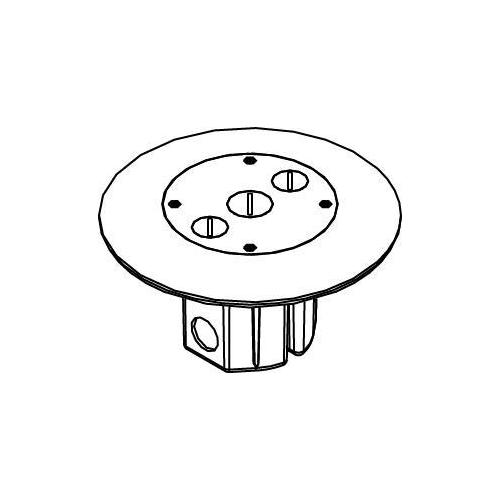

Wiremold® Floor Box Assembly, Furniture Feed Raised, Series: 861, 3 Knockouts, 1/2 in Knockout, 4 in Diameter, Retainer Ring/Raised Floor Mounting, 18 cu-in Capacity, Die Cast Aluminum, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Instruction_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Instruction_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_G3048R_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_G3048R_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_861QTCBS_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_828SPTC_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_828SPTC_Warranty_Information.pdf

• Cover has two 1/2 in trade size conduits and one 3/4 in trade size threaded conduit opening for feeding cables and wires through the floor
• Flush flanges available in a variety of colors/finishes
• Slide covers match painted flange colors
• Aluminum and brass covers shipped with black slide covers
• Brass flange also available with nonmetallic brass-color slide holder
