Flush style poke-thru devices are an excellent solution for bringing power, communication and audio/video services to the workstation in an open space, above-grade floor environment. All Wiremold® flush style poke-thru devices come with built-in TopGuard™ protection, an industry-leading design that meets and exceeds UL scrub water exclusion requirements for tile and carpet floors. TopGuard™ protection prevents water, dirt or debris from entering not just the power devices, but also the communication devices. All Wiremold® flush style poke-thru devices can be installed on tile, carpet or wood covered floors. Each of these devices provides an excellent solution for both new or retrofit construction, with typical applications that include office buildings, airports, malls, shopping centers, libraries and schools.

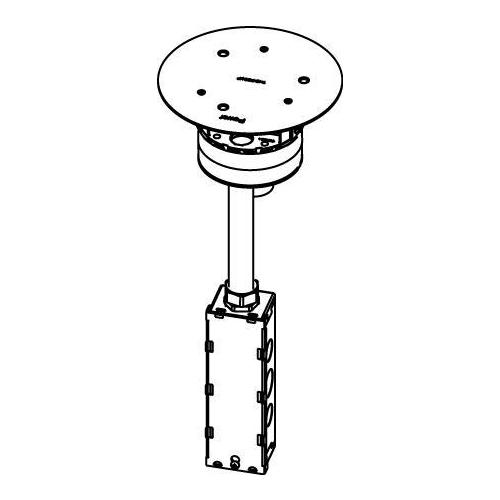

Wiremold® TopGuard™ Poke-Through Stem Assembly, Multi-Service, Series: AV3, 4 in Hole, 3/4 in, 1-1/4 in Knockout, 2 Gangs, Fire-Rated Device, For Use With: Carpet, Tile, Wood Covered Floor, AV3CTC Cover, 7 in Cover, Metal, Black/Brass/Brushed Aluminum/Gray/Ivory

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_AV3APTCBK_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_AV3APTCBK_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_35895e5bf703ea40665da977bb1b84d6add621fda78d0682f718d255fcef3b95.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_35895e5bf703ea40665da977bb1b84d6add621fda78d0682f718d255fcef3b95.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiremold_8AT2PBK_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a82e3bb32453be7930027c60fc5b0c1ab1f5af93631591b9f4c4d98b3126550.pdf

• Use with AV3CTC Series Covers to complete installation
• AV3 Series Poke-Thru Devices require a 4 in (102mm) diameter hole
• Not designed to work with bare concrete or terrazzo
• Floor covering thickness 1/8 in minimum
