PIR technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space. Relying on a clear line-of sight view, passive infrared sensors make 100% coverage cut off possible. These sensors utilize a unique fresnel lens which divides the coverage area into zone, enhancing detection of small movement.

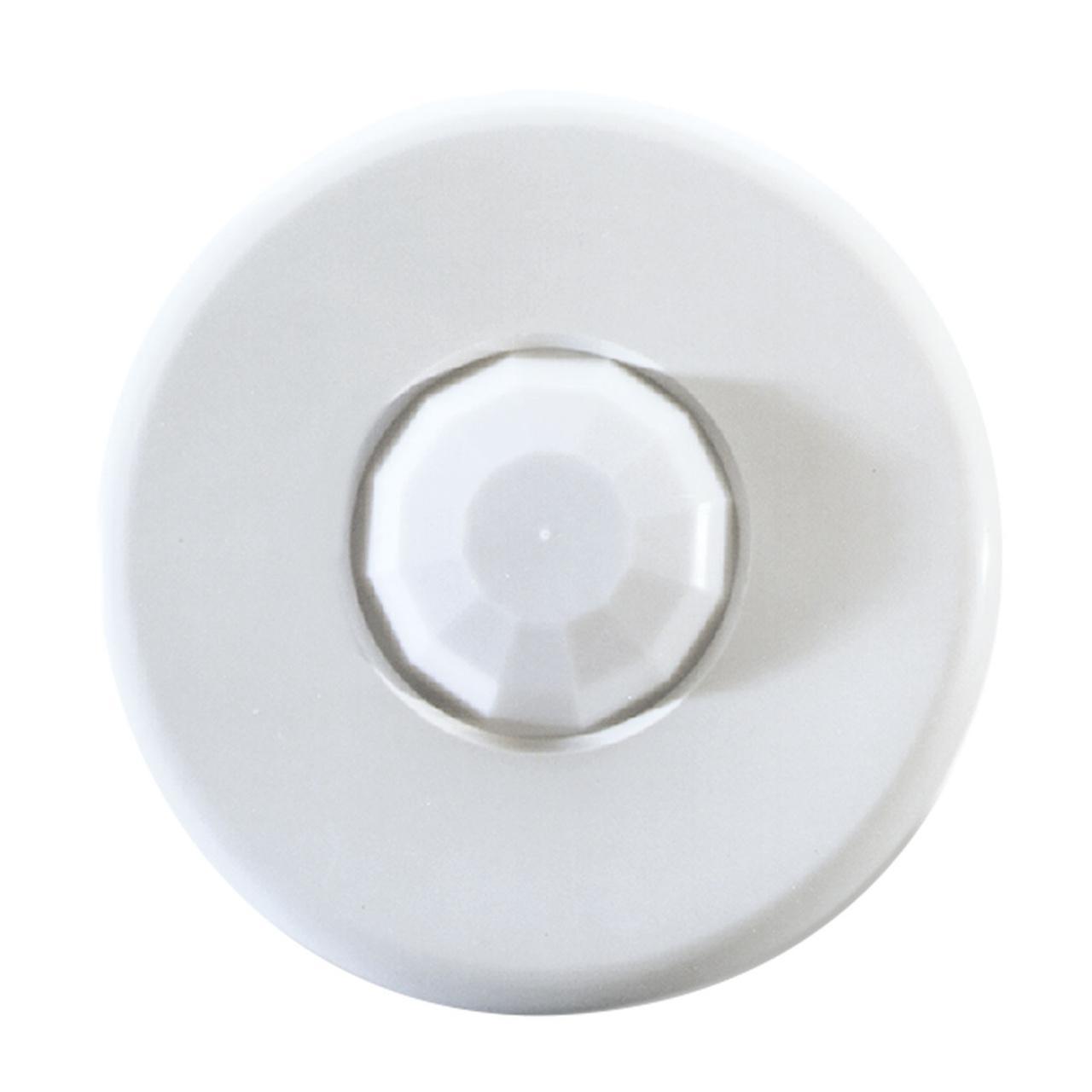

WattStopper® Ceiling Mount Occupancy Sensor, Low Profile, Series: CI-200, 24 VDC, 20 mA, Passive Infrared Sensor, 1200 sq-ft Coverage, 360 deg Viewing, 15 s to 30 min Time Delay, Fluorescent/LED Lamp, Flying Lead Connection, Automatic On/Automatic Off Control Output, 35 deg C, Plastic, White, 3.3 in Dia x 2.2 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0abba9f9ca22c5eeba4d881c08f9ef08182abefae942e78c903ddce3607ed229.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0abba9f9ca22c5eeba4d881c08f9ef08182abefae942e78c903ddce3607ed229.pdf

• 95% relative humidity, non-condensing, for indoor use only environmental conditions
• This passive infrared (PIR) ceiling sensor provides 360 deg coverage to detect occupancy in the controlled area
• These low profile sensors reliably control lighting in a variety of applications
• Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
• Pulse count processing eliminates false OFF without reducing sensitivity
• ASIC technology reduces components and enhances reliability
• Low profile design ensures a clean and uncluttered ceiling appearance
• User adjustable time delay from 15 sec to 30 min by 2 min increments
• Sensitivity is programmed through a dip switch which has four settings ranging from minimum to maximum
• Light level output can create bi-level lighting for added convenience and energy savings
• Isolated relay can interface with HVAC, EMS or an additional lighting load
• Dual element, temperature compensated pyro-electric sensor
• With isolated relay and light level
• 1 A at 24 VAC/VDC load rating
• Ceiling Sensor provides 360 deg coverage to detect occupancy in the controlled area
