O-Z/Gedney IBC-LS series insulated bushings fasten and ground threadless rigid metal conduit to an enclosure. Appleton® GIB-L series and O-Z/Gedney IBC-L series insulated bushings fasten and ground threadless rigid metal conduit to an enclosure. Insulated bushings can be used with a locknut to terminate conduit at an enclosure. The lug is used to connect a bonding jumper to a neutral busbar .

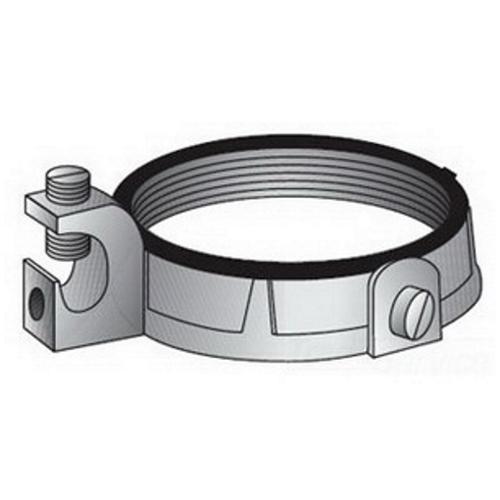

O-Z/Gedney Grounding Bushing, Insulated Threaded, 4 in Trade, 6 AWG Minimum Wire, 250 kcmil Maximum Wire, Plastic Liner Throat, Bronze Bright Dipped Lay-In Lug, 5-3/16 in Diameter, 1-1/16 in Height, 3-13/16 in Turning Radius, Malleable Iron, Zinc Plated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_HBLG-2004_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_HBLG-2004_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_IBC-75L-4BC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_IBC-75L-4BC_Specification_Sheet.pdf

• O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
• They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
• Insulating liner material is UL V-0 rated self-extinguishing
• The plastic liner is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
• Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
• Set screws provided with each fitting locks bushing in any desired position
• UL listed for use with copper grounding conductors
